Autel MaxiSys Elite II Pro J2534 ECU Programming Scanner

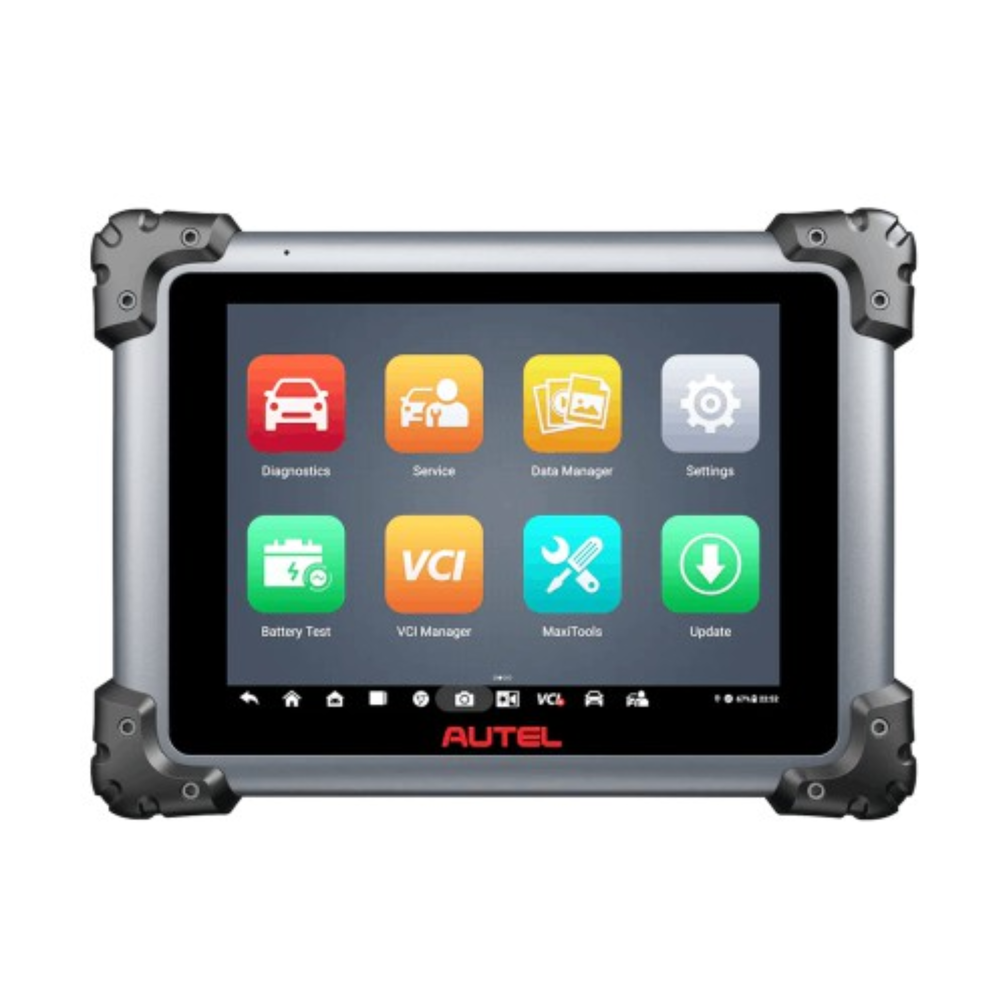

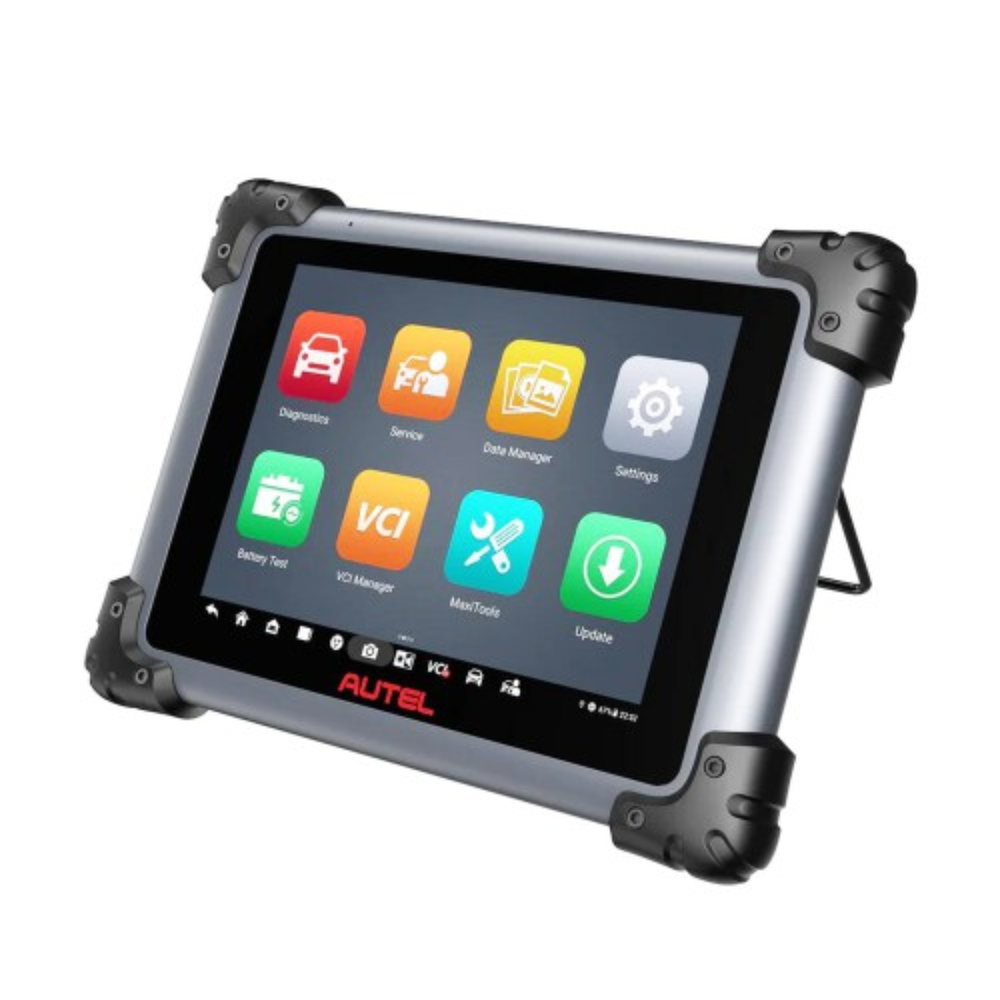

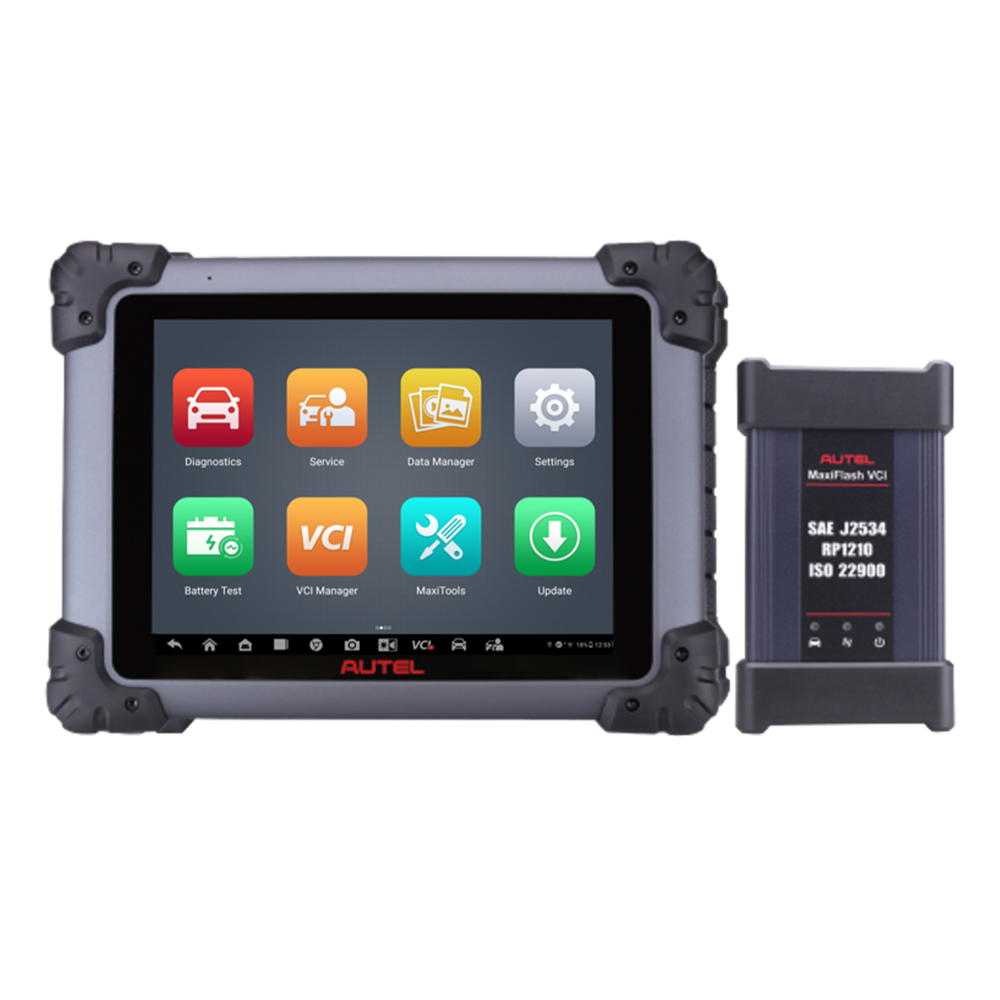

Autel MaxiSys Elite II Pro professional diagnostic scanner

Professional Diagnostic Scanner with J2534 ECU Programming

The Autel MaxiSys Elite II Pro is a professional-grade automotive diagnostic and ECU programming platform designed for workshops, automotive technicians, and advanced repair specialists. Featuring OE-level diagnostics, advanced ECU coding, J2534 pass-thru programming, DoIP and CAN FD protocol support, and 38+ service functions, this high-performance scanner delivers fast and accurate vehicle diagnostics across a wide range of makes and models. Built with Android 10, powerful hardware, and wireless VCI connectivity for streamlined workshop efficiency.

Main Features

J2534 ECU Programming – Supports advanced pass-thru ECU programming and software flashing for compatible vehicle manufacturers including BMW and Mercedes-Benz applications.
Advanced ECU Coding – Enables module coding, adaptive data relearning, feature activation, and system customisation for supported vehicle platforms.
OE-Level Full System Diagnostics – Provides comprehensive diagnostics for all major vehicle systems including engine, ABS, SRS, transmission, TPMS, steering, body control, and more.
DoIP & CAN FD Support – Equipped with the latest communication protocols for faster and more reliable diagnostics on modern vehicles.
FCA AutoAuth Access – Supports secure gateway authentication for FCA vehicles, allowing authorised diagnostic access to protected systems.
Auto Scan 2.0 Technology – Performs rapid and intelligent vehicle scanning to improve workshop productivity and reduce diagnostic time.
38+ Service & Maintenance Functions – Includes oil reset, EPB reset, DPF regeneration, ABS bleeding, SAS reset, battery registration, injector coding, throttle adaptation, and more.
Android 10 Operating Platform – Delivers faster performance, improved multitasking, and enhanced system stability for professional workshop environments.
High-Performance Hardware – Features a powerful octa-core processor, 4GB RAM, and 128GB internal storage for smooth operation and fast data processing.
Wireless VCI Connectivity – Supports stable Bluetooth communication between the tablet and vehicle interface for flexible workshop mobility.
Wide Vehicle Coverage – Compatible with over 80 vehicle manufacturers, 150+ brands, and thousands of vehicle models worldwide.
Expandable Functionality – Compatible with Autel accessories including the BT506 Battery Tester, MP408 Oscilloscope, and MV108S Digital Inspection Camera.

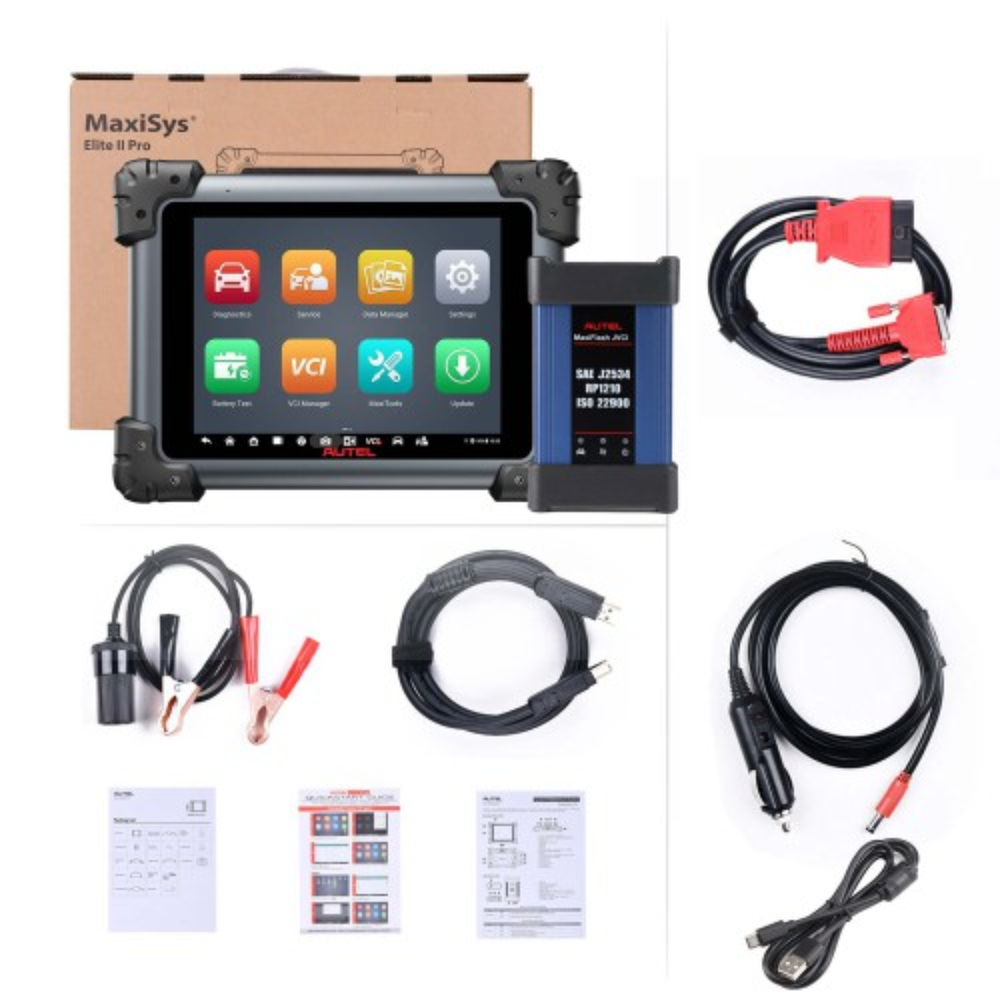

Package Includes

1pc X Main Unit

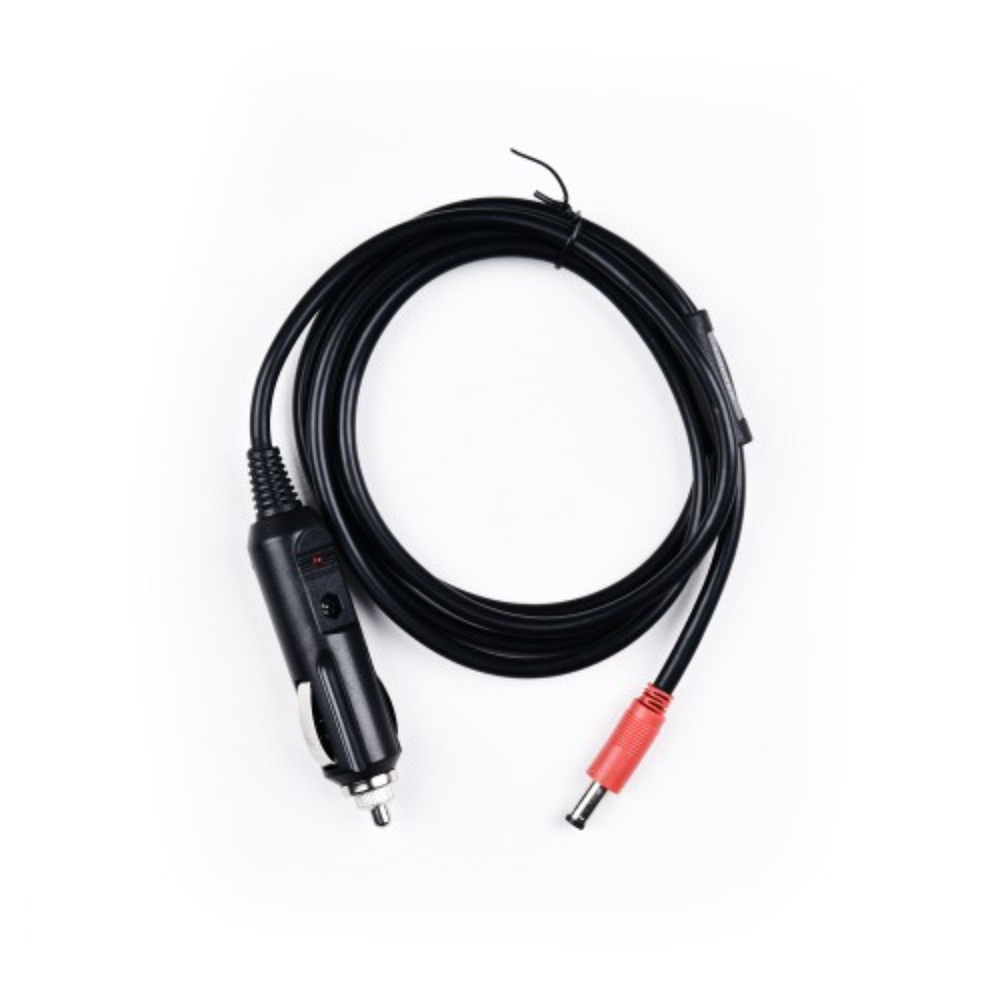

1pc X Auxiliary Power Outlet Adapter
1pc X Quick Reference Guide

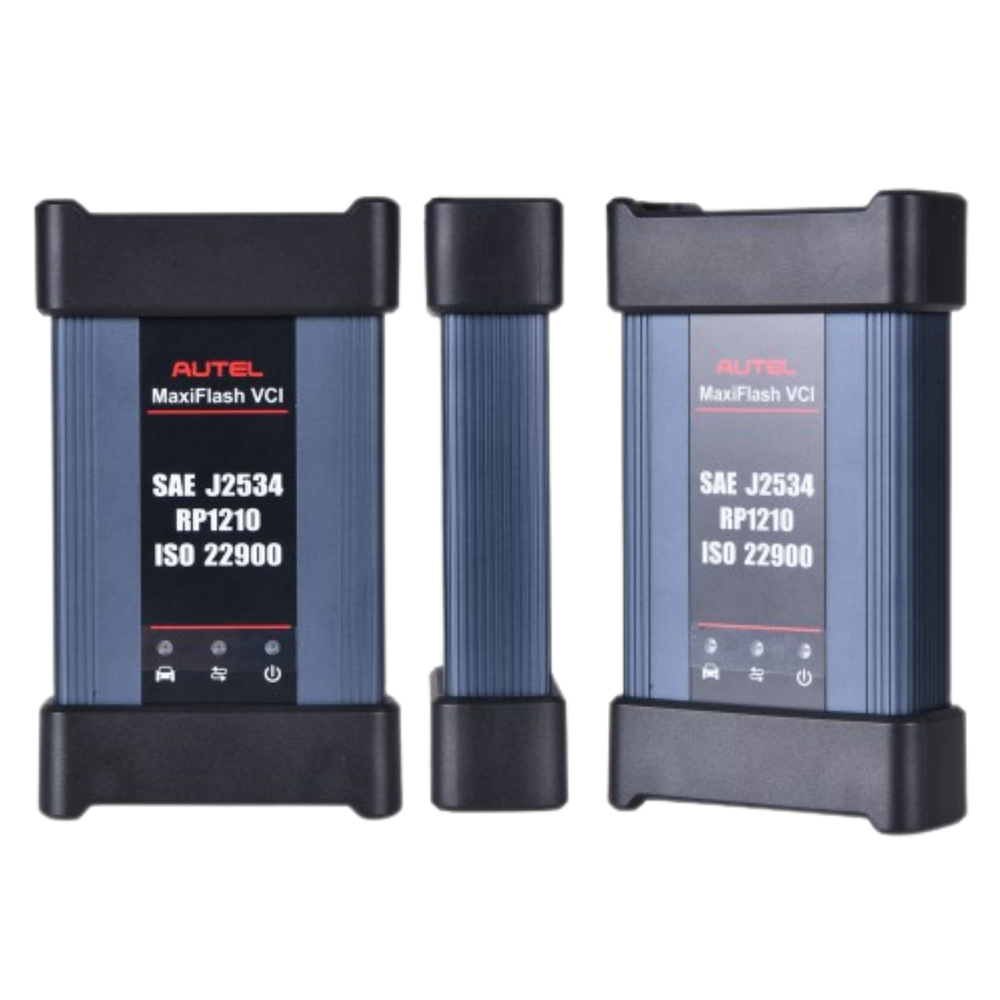

1pc X Maxiflash Vci
2pcs X Spare Fuses(6x30mm)
1pc X Packing List

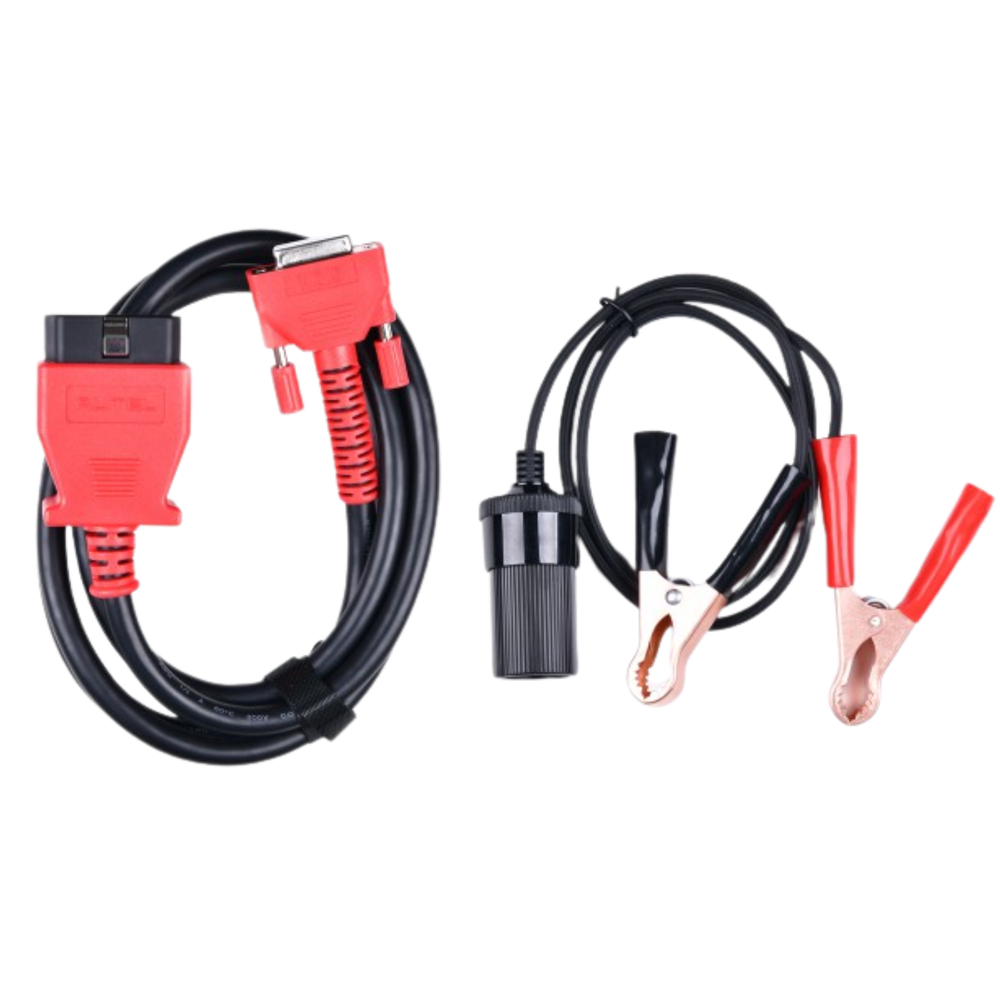

1pc X Main Cable V2.0
1pc X Clipper Cable
1pc X Carrying Case
1pc X USB Cable V2
1pc X AC/DC Power Adapter(12v)
1pc X Mini USB Cable
1pc X Soft Cloth

Professional Diagnostic & ECU Programming Features

OE-Level full system diagnostics

Advanced J2534 ECU programming

ECU coding and customisation

Supports DoIP and CAN FD protocols

FCA AutoAuth SGW access supported

38+ reset and relearn functions

Android 10 operating system

4GB RAM and 128GB storage

Wireless Bluetooth VCI connection

2 Years free software updates

Global vehicle coverage

Auto Scan 2.0 functionality

Supports D-PDU and RP1210

Compatible with BT506 and MV108S

Autel Elite II Pro J2534 ECU programming tool.

Autel Elite II Pro J2534 ECU programming tool Technical Specifications

Operating System: Android 10.0

Processor: Qualcomm octa-core processor (2.2 GHz quad-core A73 + 1.8 GHz quad-core A53)

Memory: 4 GB RAM & 128 GB on-board memory

Display: 9.7” HD display, 2048 × 1536 resolution, capacitive touchscreen

Connectivity: Wi-Fi 802.11 a/b/g/n/ac, Bluetooth V5.0 + EDR, USB 2.0, HDMI, SD Card (up to 64 GB)

Camera: Rear 16.0 MP with autofocus and flashlight

Sensors: Gravity accelerometer, ambient light sensor (ALS)

Audio I/O: Microphone, dual speakers, 3.5 mm stereo headset jack

Power: 3.7 V / 11000 mAh lithium-polymer battery, 12 V AC/DC charging (0 °C to 45 °C)

Input Voltage: 12 V (9–24 V)

Power Consumption: 6.5 W

Operating Temperature: 0 °C to 50 °C

Storage Temperature: -10 °C to 60 °C

Dimensions: 300 mm × 220 mm × 50 mm

Weight: 1.42 kg

Protocols: ISO 9142-2, ISO 14230-2, ISO 15765-4, ISO 13400, K/L-Line, CAN ISO 11898, CAN FD, SAE J1850 VPW, SAE J1850 PWM, SAE J1939, SAE J1708, GM UART, Honda Diag-H, TP 2.0, TP 1.6, Fault-Tolerant CAN

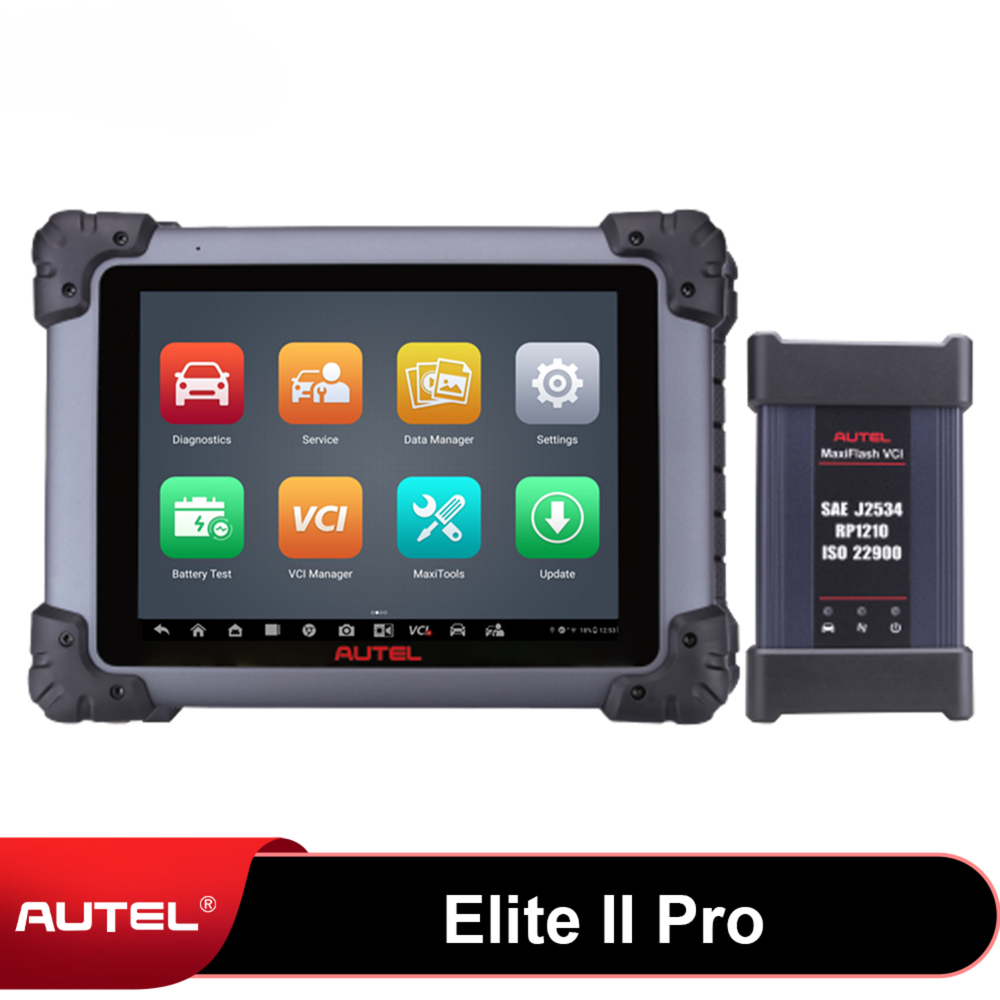

Autel Elite II Pro with wireless VCI interface
