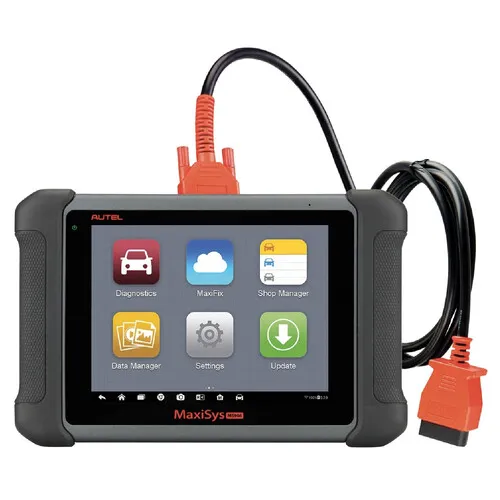

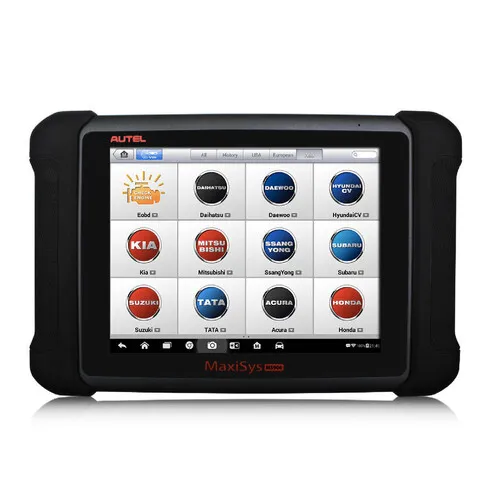

MaxiSys MS906 is based on the Android operating system and is featured with an extensive coverage of vehicles for full system diagnostics. Built with Exynos 5260 6-core processor (1.3 GHz quad-core ARM Cortex-A7 + 1.7 GHz dual-core ARM Cortex-A15), a 32G SSD hard drive and an 8” capacitive HD touch screen, MaxiSys MS906 efficiently provides comprehensive vehicle diagnostics and analysis.

Main Features

  • Extraordinarily powerful Samsung Exynos Hexa-core processor
  • 8.0” 1024x768 LED-backlit glossy Multi-Touch capacitive display with IPS technology
  • Internal reliable 32GB SSD for better performance
  • Built-in 8-megapixel rear camera with autofocus and flashlight
  • 802.11b/g/n Wi-Fi to access your favourite web resources
  • Unique ergonomic design with rubberised outer protection and a rugged internal housing
  • Built-in rechargeable lithium-polymer battery for up to 6 hours of continuous operation
  • Open source Android Operating System for fast boot-up and multitasking
  • Easy and intuitive navigation makes finding what you need simple and fast
  • Extensive vehicle coverage for more than 80 US, Asian and European vehicle makes
  • Exceptional OE-Level system coverage for all electronic systems
  • Complete capabilities for codes, live data, active test, ECU information, adaptation, matching, etc.
  • Smart AutoVIN technology for identifying vehicles easily
  • Automatic system and software updates with real-time push message notifications via Wi-Fi
  • Instant remote control tech support anytime, anywhere
  • Cloud-based MaxiFix online community provides a vast database of diagnostic and repair tips and proven filed fixes
  • Interactive Data Logging sessions enable direct contact with Autel Technical Support for first-hand troubleshooting of diagnostic bugs and errors
  • One-stop multitasking designed for ideal management of workshop operations to keep all data files, customer info, and vehicle records well organised
  • Convenient data management system for managing internal program applications and reviewing data

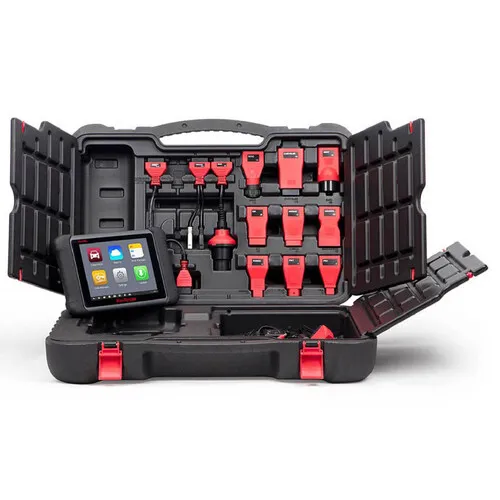

Package Includes

  • AC/DC Adapter (12V)
  • User Manual
  • Carrying Case
  • Quick Reference Guide
  • Lighter FuseMain cable
  • Adapter for GM/Daewoo-12
  • Adapter for BMW-20
  • Adapter for Benz-38
  • Adapter for Kia-20
  • Adapter for Mitsubishi/Hyundai-12+16
  • Adapter for Nissan-14
  • Adapter for Honda-3
  • Cigarette Lighter
  • Adapter for VW/AUDI-2+2
  • Soft Cloth
  • Packing List
  • Mini USB Cable

(ms906)

Extraordinarily powerful Samsung Exynos Hexa-core processor
8.0” 1024x768 LED-backlit glossy Multi-Touch capacitive display with IPS technology
Extensive vehicle coverage for more than 80 US, Asian and European vehicle makes
Exceptional OE-Level system coverage for all electronic systems
Complete capabilities for codes, live data, active test, ECU information, adaptation, matching, etc.
Operating System: Android™ 4.4.2, KitKat
Processor: Samsung Exynos 6-Core Processor (1.3 GHz quad-core ARM Cortex-A7 + 1.7 GHz dual-core ARM Cortex-A15)
Memory: 2 GB RAM & 32 GB ROM
Display: 8.0″ LED capacitive touch screen with 1024x768P resolution
Connectivity: Wi-Fi (802.11 b/g/n), DB16 DLC, USB 2.0, SD Card (Support up to 32GB)
Camera (rear): Rear-facing, 8.0 Megapixel, AF with Flashlight
Sensors: Gravity Accelerometer, Ambient Light Sensor (ALS)
Audio Input/Output: Microphone, Single Speaker
Power and Battery: 3.7V/5000 mAh lithium-polymer battery, Charging via 12 V AC/DC power supply
Input Voltage: DC/12 V (9-35 V)
Power Consumption: 5 W
Operating Temperature: -10 to 55°C (14 to 131°F)
Storage Temperature: -20 to 70°C (-4 to 158°F)
Housing: Rubberized outer protection and rugged internal housing
Dimensions (W x H x D): 270.8 mm (10.0”) x 176.0 mm (6.9”) x 36.0mm (1.4”)
Weight: NW: 0.96 kg (2.12 lb.)

Autel MaxiSys Diagnostic Scan Tools

Comparison Table



MS906

906BT

MS Elite

MS909





Hardware / Software

Vehicle Connection

Cable

MaxiVCI

MaxiFlash VCI

MaxiFlash VCI

Display Size

8”

8”

9.7”

9.7”

Memory Storage ROM

32GB

32GB

64GB

128GB

Battery Life

5000 mAh

1000 mAh

13600 mAh

15000 mAh

Connector Kit

☑️

☑️

☑️

☑️

Operating System

Android 4.4.2

Android 4.4.2

Android 4.4.4

Android 7.0

Camera Rear

☑️

☑️

☑️

☑️

Diagnostics Functions

All SYS DTC Scan

☑️

☑️

☑️

☑️

Service Functions

☑️

☑️

☑️

☑️

Bi-Directional Control

☑️

☑️

☑️

☑️

Auto VIN Technology

☑️

☑️

☑️

☑️

ECU Coding

-

☑️

☑️

☑️

ECU Programming

(J2534 Pass-Thru)

-

-

☑️

☑️

Data Manager

☑️

☑️

☑️

☑️

Shop Manager

☑️

☑️

☑️

☑️

Remote Support

☑️

☑️

☑️

☑️

Optional Add-Ons

Advanced TPMS

-

-

-

-

Oscilloscope

-

☑️

☑️

☑️

Inspection Camera

-

☑️

☑️

☑️

ADAS

-

☑️

☑️

☑️



Learn More

Learn More

Learn More

Learn More
