MaxiSys MS906BT is a professional scan tool featured with an OE-level diagnostics and ECU coding capability. Utilising the powerful Exynos 5260 6-core processor (1.3 GHz quad-core ARM Cortex-A7 + 1.7 GHz dual-core ARM Cortex-A15), an 8” capacitive HD touch screen, and long-distance wireless communication, the MaxiSys MS906BT efficiently provides comprehensive vehicle diagnostics and analysis.

MS906BT comes with bluetooth MaxiVCI that enables you to access and diagnose all available vehicle modules remotely with best possible coverage. With ECU coding, complete capability for codes and a series of most commonly used service and special functions, the MS906BT automotive scanner tool covers everyday tasks of automotive repair and DIY, including Key Coding & Programming, Functional tests/ Active tests/ Bi-Directional Control, ABS brake bleeding, Oil Rest, SAS calibration, DPF Regeneration, TPMS relearn, Battery Registration, Reset brake pads after replacement, adaptations and etc.

Main Features

  • Extraordinarily powerful Samsung Exynos Hexa-core processor
  • 8.0” 1024x768 LED-backlit glossy Multi-Touch capacitive display with IPS technology for ultra-mobility
  • Internal reliable 32GB SSD for better performance
  • Built-in 8-megapixel rear camera with autofocus and flashlight
  • 802.11b/g/n Wi-Fi to access your favourite web resources
  • Unique ergonomic design with rubberised outer protection and a rugged internal housing
  • Built-in rechargeable lithium-polymer battery for up to 14 hours of continuous operation
  • USB, audio and auxiliary ports make it easy to connect accessories
  • Open source Android Operating System for fast boot-up and multitasking
  • Easy and intuitive navigation makes finding what you need simple and fast
  • The most extensive complete system coverage for more than 80 US, Asian and European makes and models
  • Exceptional OE-Level functionality from comprehensive OBDII diagnostics & services to advanced ECU coding
  • Complete capabilities for codes, live data, active test, ECU information, adaptation, matching, coding etc.
  • Smart AutoVIN technology for identifying vehicle easily
  • Automatic system and software updates with real-time push message notifications via internet
  • Instant remote control tech support anytime, anywhere
  • Cloud-based MaxiFix online community provides a vast database of diagnostic and repair tips and proven filed fixes
  • Interactive Data Logging sessions enable direct contact with Autel Technical Support for first-hand troubleshooting of diagnostic bugs and errors
  • One-stop multitasking designed for ideal management of workshop operations to keep all data files, customer info, and vehicle records well organised
  • Enhanced wireless BT connectivity between the display tablet and VCI device allows greater mobility and ease at work
  • Convenient data management system for managing internal program applications and reviewing data

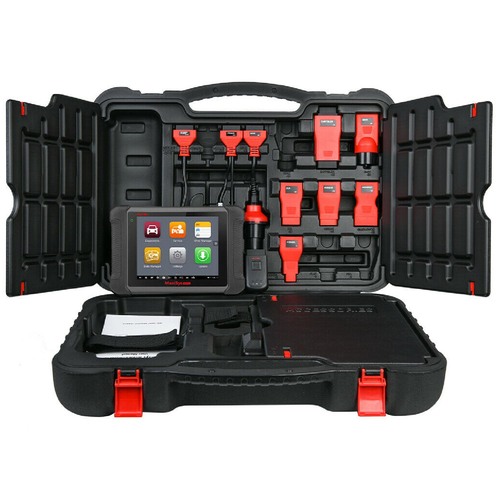

Package Includes

  • 1 x MS906BT Tablet
  • 1 x User Manual
  • 1 x Carrying Case
  • 1 x Light Fuse
  • 1 x MaxiVCI V100
  • 1 x Quick reference guide
  • 1 x Adaptor for GM/Daewoo-12
  • 1 x Adaptor for PSA-2
  • 1 x Adaptor for Fiat-3
  • 1 x Adaptor for BMW-20
  • 1 x Adaptor for Benz-38
  • 1 x Adaptor for Kia-20
  • 1 x Adaptor for Mitsubishi/Hyundai-12+16
  • 1 x Adaptor for Nissan-14
  • 1 x Adaptor for Honda-3
  • 1 x Cigarette Lighter
  • 1 x Compact Disc (CD)
  • 1 x AC/DC External Power Adapter
  • 1 x Adaptor for VW/AUDI-2+2
  • 1 x Soft Cloth
  • 1 x Packing List
  • 1 x Mini USB Cable

(MS906BT)

Extraordinarily powerful Samsung Exynos Hexa-core processor
8.0” 1024x768 LED-backlit glossy Multi-Touch capacitive display with IPS technology
Extensive vehicle coverage for more than 80 US, Asian and European vehicle makes
Exceptional OE-Level system coverage for all electronic systems + ECU Coding
Complete capabilities for codes, live data, active test, ECU information, adaptation, matching, etc.
Operating System Android™ 4.4.2, KitKat
Processor Samsung Exynos T5260 6-Core Processor (1.3 GHz quad-core ARM Cortex-A7 + 1.7 GHz dual-core ARM Cortex-A15)
Memory 2 GB RAM & 32 GB ROM
Display 8.0" LED capacitive touch screen with 1024x768P resolution
Connectivity

Wi-Fi (802.11 b/g/n)

USB: 2.0, Mini USB 2.0

Wireless BT V2.1+EDR Class1, HDMI 1.4a

SD Card (support up to 32 GB)

Camera (rear)

Rear-facing, 8.0 Megapixel

AF with Flashlight

Sensors Gravity Accelerometer, Ambient Light Sensor (ALS)
Audio Input/Output

Microphone, Single Speaker

3-Band 3.5 mm stereo/standard headset jack

Power and Battery

10,000 mAh 3.7 V lithium-polymer battery

Charging via 12 V AC/DC power supply

Input Voltage 12 V (9-35 V)
Power Consumption 5 W
Operating Temperature -10 to 55°C (14 to 131°F)
Storage Temperature -20 to 70°C (-4 to 158°F)
Dimensions (W x H x D) 270.8 mm (10.0”) x 176.0 mm (6.9”) x 36.0 mm (1.4”)
Weight NW: 1.05 kg (2.3lb.)

Autel MaxiSys Diagnostic Scan Tools

Comparison Table



MS906

906BT

MS Elite

MS909





Hardware / Software

Vehicle Connection

Cable

MaxiVCI

MaxiFlash VCI

MaxiFlash VCI

Display Size

8”

8”

9.7”

9.7”

Memory Storage ROM

32GB

32GB

64GB

128GB

Battery Life

5000 mAh

1000 mAh

13600 mAh

15000 mAh

Connector Kit

☑️

☑️

☑️

☑️

Operating System

Android 4.4.2

Android 4.4.2

Android 4.4.4

Android 7.0

Camera Rear

☑️

☑️

☑️

☑️

Diagnostics Functions

All SYS DTC Scan

☑️

☑️

☑️

☑️

Service Functions

☑️

☑️

☑️

☑️

Bi-Directional Control

☑️

☑️

☑️

☑️

Auto VIN Technology

☑️

☑️

☑️

☑️

ECU Coding

-

☑️

☑️

☑️

ECU Programming

(J2534 Pass-Thru)

-

-

☑️

☑️

Data Manager

☑️

☑️

☑️

☑️

Shop Manager

☑️

☑️

☑️

☑️

Remote Support

☑️

☑️

☑️

☑️

Optional Add-Ons

Advanced TPMS

-

-

-

-

Oscilloscope

-

☑️

☑️

☑️

Inspection Camera

-

☑️

☑️

☑️

ADAS

-

☑️

☑️

☑️



Learn More

Learn More

Learn More

Learn More
