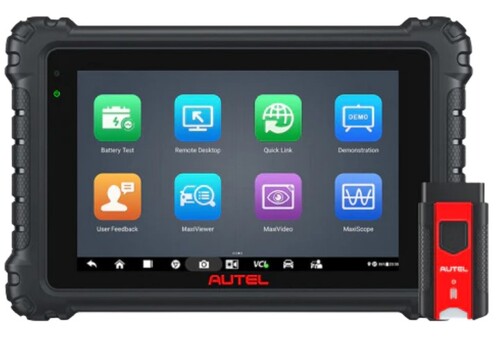

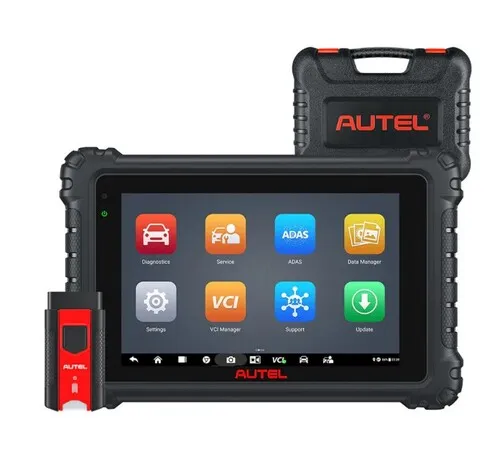

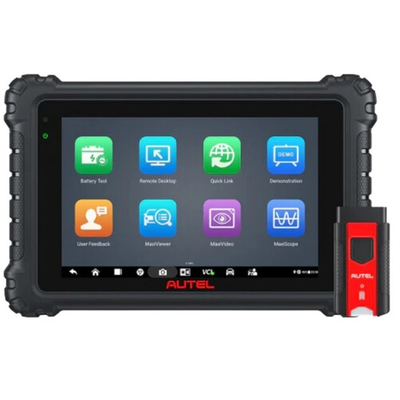

Autel MS906pro

The Autel MaxiSYS MS906Pro is an advanced 8-inch wireless diagnostic tablet built for professional workshops handling modern U.S., Asian, and European vehicles (1996 & newer). Powered by an octa-core processor with 128GB storage and a high-resolution 1920×1200 touchscreen, it delivers fast, accurate, and intuitive diagnostics for busy technicians.

Beyond full-system diagnostics, the MS906Pro includes ADAS identification and is capable of performing ADAS calibrations when paired with the optional Autel ADAS frame system and software upgrade. It also delivers bi-directional control (active tests, coding, and adaptations), customisable Pre & Post scans, and an extensive service menu with 25+ maintenance functions. With support for FCA Secure Gateway via AutoAuth, optional BT506 battery testing integration, and future-ready cloud features, it’s a true all-in-one platform for today’s workshops.

Main Features

OE-Level Coverage – Diagnostics for 1996+ U.S., Asian & European vehicles.
AutoSCAN with ADAS ID – Scan all available systems, including ADAS identification.
ADAS Calibrations (Optional Kit Required) – Fully capable of camera, radar, LiDAR, and night vision calibrations when paired with the Autel ADAS frame system and software upgrade.
Bi-Directional Controls – Perform active tests, coding, and adaptations.
25+ Service Functions – Oil reset, ABS bleed, injector coding, EPB reset, SAS calibration, DPF regen, and more.
Customisable Pre & Post Scans – Generate professional reports for customer records.
FCA AutoAuth Access – Secure Gateway access for Chrysler, Dodge, Jeep, Fiat, and Alfa Romeo.
AutoVIN/Scan VIN – Rapid and accurate vehicle identification.

Package includes:

MS906bt Main Unit
MaxiVCI V200
AC/DC Adapter (12V)
Type C USB cable
Vehicle Accessory Socket Adapter (12V)
Spare Fuse (6x30mm X 2)
USB to Ethernet Adapter
Quick Reference Guide

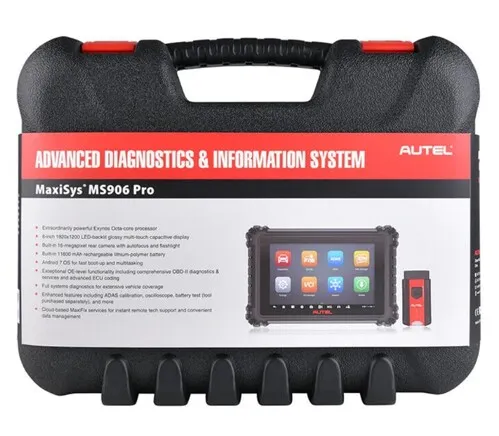

Carrying Case

Autel MaxiSYS MS906pro Scan Tool

The MS906Pro is more than a diagnostic tablet — it’s a professional-grade workshop solution. With OE-level diagnostics, bi-directional controls, ECU coding, and ADAS calibration capability (with optional kit), it’s designed to keep up with the complexity of modern vehicles.

Compared to mid-range scanners like the MP900 series, the MS906Pro delivers more computing power, cloud integration, advanced ADAS compatibility, and future-ready features — making it the right choice for workshops that want to stay ahead of evolving vehicle technology.

Autel MaxiSys Diagnostic Scan Tools

Comparison Table

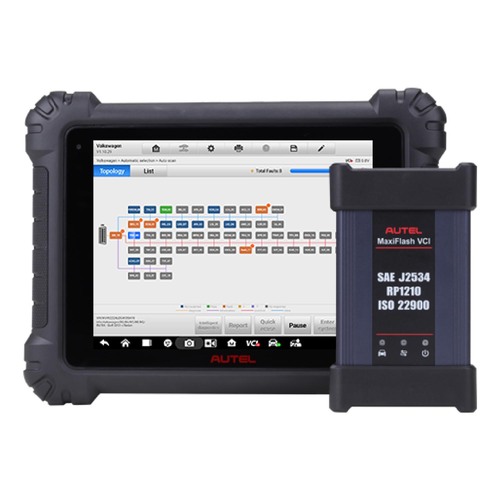

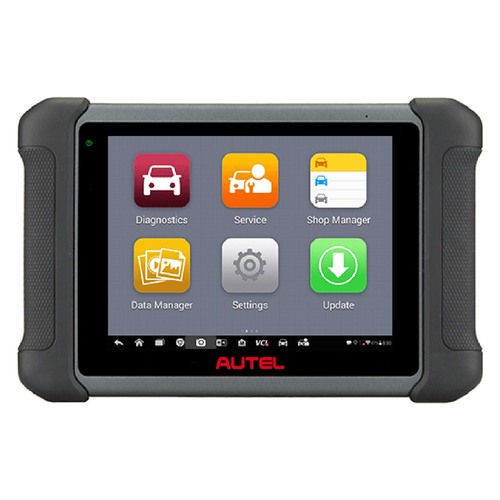

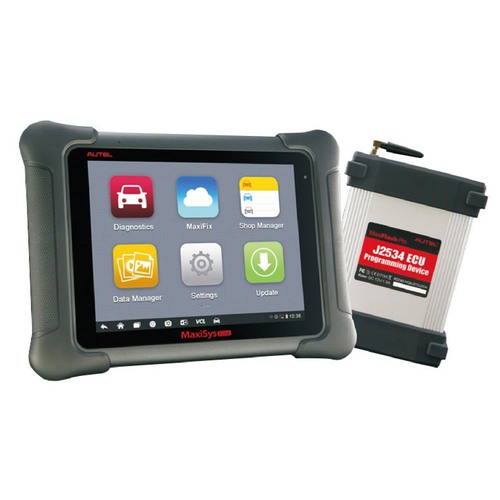

	MaxiSYS MS906 PRO	MaxiSYS MS906 BT	MaxiSYS Elite	MaxiSYS 909
Hardware
Vehicle Connection	Cable	MaxiVCI	MaxiFlash VCI	MaxiFlash VCI
Display Size	8"	8"	9.7"	9.7"
Memory Storage ROM	32GB	32GB	64GB	128GB
Battery	11600 mAh	10000 mAh	13600 mAh	15000 mAh
Connector Kit	✓	✓	✓	✓
Operating System	Android 7/10	Android 4.4.2, KitKat	Android 4.4.4	Android 7
Camera Rear	✓	✓	✓	✓
Software
All System Scan	✓	✓	✓	✓
Service Reset	✓	✓	✓	✓
Bi-Directional Control	✓	✓	✓	✓
Auto VIN Technology	✓	✓	✓	✓
ECU Coding		✓	✓	✓
(J2534 Pass-Thru)				✓
Data Manager	✓	✓	✓	✓
Shop Manager	✓	✓	✓	✓
Optional Add-ons
Advanced TPMS
Oscilloscope		✓	✓	✓
Inspection Camera		✓	✓	✓
ADAS		✓	✓	✓
	LEARN MORE	LEARN MORE	LEARN MORE	LEARN MORE

Operating System	Android 10.0
Processor	Samsung Exynos8895V octa-core Processor (2.3GHz Quad-core Mongoose + 1.7GHz Quad-core A53) / Qualcomm 660 Octa-core Processor (2.2GHz Quad-core A73 + 1.8GHz Quad-core A53)
Memory	4/128GB
Display	8.0" LED capacitive touch screen with 1920x1200P resolution
Connectivity	Wi-Fi (802.11 b/g/n) USB: 2.0, Mini USB 2.0 Wireless BT V2.1+EDR Class1, HDMI 1.4a SD Card (support up to 32 GB)
Camera (rear)	Rear-facing, 8.0 Megapixel AF with Flashlight
Sensors	Gravity Accelerometer, Ambient Light Sensor (ALS)
Audio Input/Output	Microphone, Single Speaker 3-Band 3.5 mm stereo/standard headset jack
Power and Battery	10,000 mAh 3.7 V lithium-polymer battery Charging via 12 V AC/DC power supply
Input Voltage	12 V (9-35 V)
Power Consumption	5 W
Operating Temperature	-10 to 55°C (14 to 131°F)
Storage Temperature	-20 to 70°C (-4 to 158°F)
Dimensions (W x H x D)	270.8 mm (10.0”) x 176.0 mm (6.9”) x 36.0 mm (1.4”)
Weight	NW: 1.05 kg (2.3lb.)
