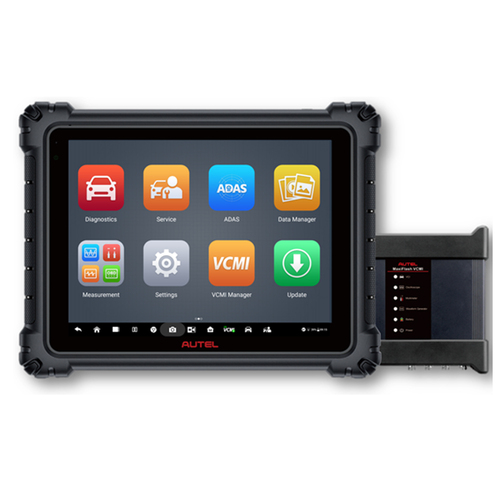

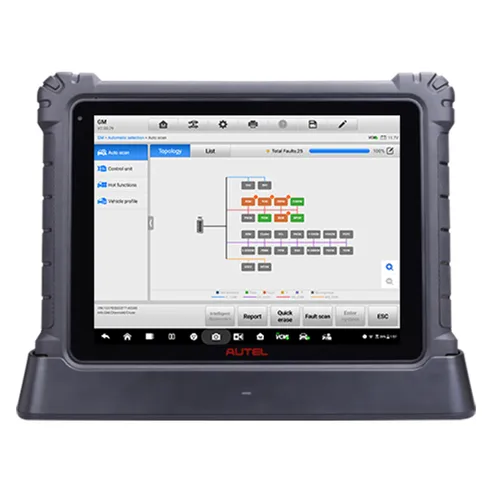

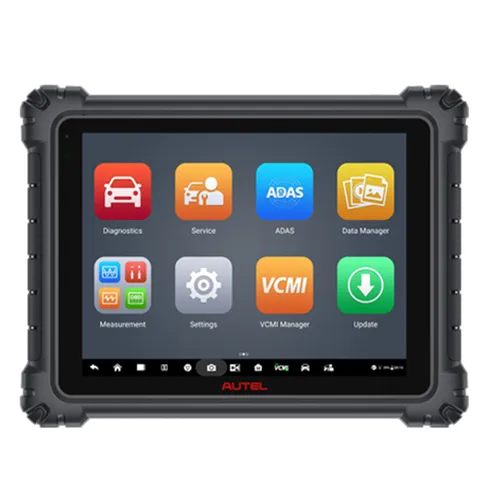

The Autel MaxiSys Ultra is Autel’s most ambitious diagnostics tablet designed to maximize technician intelligence. It features a 13-inch touchscreen tablet with Android 7.0 OS powered by an Octa-core processor (2.3GHz Quad + 1.7GHz Quad), substantial 256GB built-in memory, all powering the new split-screen multi-application navigation to provide diagnostic guidance and test components to confirm repairs. Combined with the dynamic topology module mapping, enhanced AutoSCAN features, and Intelligent Diagnostics options, the Ultra offers the technicians step-by-step repair guidance. The new MaxiFlash VCMI functions as a 4-channel oscilloscope, waveform generator, multimeter, and CAN BUS tester. The convenient docking station featured ensures you always have the power to scan.

Main Features

  • Autel updates provide latest OE level coverage for more than 80 US Domestic, Asian and European vehicles, including supercar
  • Exceptional OE-Level functionality from comprehensive OBDII diagnostics & services to advanced ECU coding and programming
  • Automatic system and software updates with real-time push message notifications via internet
  • Interactive Data Logging sessions enable direct contact with Autel Support for first-hand troubleshooting of diagnostic bugs and errors
  • One-stop multitasking designed for ideal management of workshop operations to keep all data files, customer info, and vehicle records well organized
  • Cloud-based Data Manager saves customer and vehicle records, scanner data, and technician notes

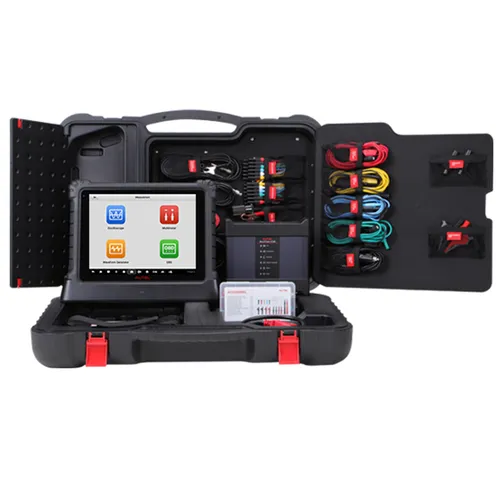

Product Includes

  • Main unit
  • Maxi Flash VCMI
  • Docking Station
  • Main Cable V2.0
  • USB 2.0, Cable V2
  • AC/DC, Cable V2
  • Cigarette Lighter
  • 2pcs.Light Fuse
  • Clipper Cable
  • 4pcs. Scope Test Lead
  • 2pcs. Multimeter Test Lead
  • 2pcs. Secondary Ignition Pickup
  • 2pcs. Attenuator 20:1
  • 4x6pcs. Breakout Lead
  • 1x2pcs. Multimeter Probe
  • 2x2pcs. Flexible Back-pinning Probe
  • 1x5pcs. Back-pinning Probe (Red/Green/Blue/Yellow/Black)
  • 2pcs. Back-pinning Probe Screw
  • 20pcs. Back-pinning Replacement Needle v2x2pcs. Small Crocodile Clip
  • 1x2pcs. Large Dolphin Clip
  • User Manual
  • Packing list
  • Soft Cloth
  • Tool Box
  • Carrying Case

(Maxisys-Ultra)

Provide diagnostic guidance and test components to confirm repairs. Combined with the dynamic topology module mapping, enhanced AutoSCAN features and Intelligent Diagnostics options.

Operating System Android 7.0
Processor Samsung Exynos8895V octa-core Processor (2.3GHz Quad-core Mongoose + 1.7GHz Quad-core A53)
Memory 4GB RAM & 256GB On-board Memory
Display 12.9 inch TFT-LCD with 2732 x 2048 resolution & capacitive touch screen
Connectivity WiFix2 (802.11 a/b/g/n/ac 2x2 MIMO)
BT v.2.1 + EDR
GPS
USB 2.0 (Two USB HOST Type A, one USB mini device)
HDMI 2.0
SD Card (Support up to 256GB)
Camera Rear: 16 Megapixel, Autofocus with Flashlight
Front: 5 Megapixel
Sensors Gravity Accelerometer, Ambient Light Sensor (ALS)
Audio Input/Output Microphone
Dual Speakers
3-Band 3.5 mm stereo/standard headset jack
Power and Battery 18000mAh 3.8 V lithium-polymer battery
Charging via 12 V AC/DC power supply with the temperature between 0°C and 45°C
Input Voltage 12V/3A Adapter
Operating Temp. 0 to 50°C (32 to 122°F)
Storage Temperature -20 to 60°C (-4 to 140°F)
Dimensions (WxHxD) 366.5 mm (14.43") x 280.9 mm (11.06") x 34 mm (1.34")
Weight 2.18kg (4.81 lb.)
Protocols DoIP, PLC J2497, ISO-15765, SAE-J1939, ISO-14229 UDS, SAE-J2411 Single Wire Can (GMLAN), ISO-11898-2, ISO-11898-3, SAE-J2819 (TP20), TP16, ISO-9141, ISO-14230, SAE-J2610 (Chrysler SCI), UART Echo Byte, SAE-J2809 (Honda Diag-H), SAE-J2740 (GM ALDL), SAE-J1567 (CCD BUS), Ford UBP, Nissan DDL UART with Clock, BMW DS2, BMW DS1, SAE J2819 (VAG KW81), KW82, SAE J1708, SAE-J1850 PWM (Ford SCP), SAE-J1850 VPW (GM Class2)
