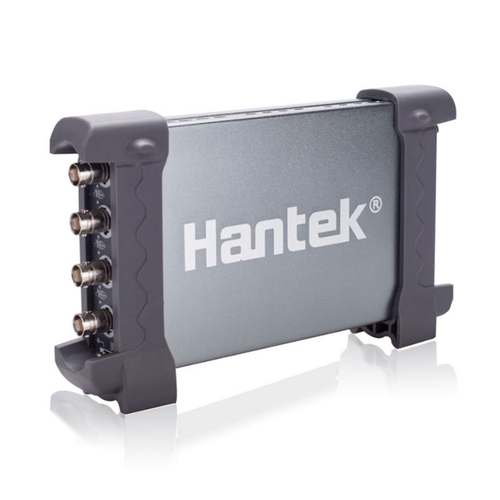

Perform over 80 types of automotive measurement functions with Hantek 6074BE full KitIV. Features a 4 channels oscilloscope with 1GSa/s real time sampling rate, 2mV-10V/DIV high input sensitivity and large input range, 70MHz high bandwidth, small size and easy to carry.

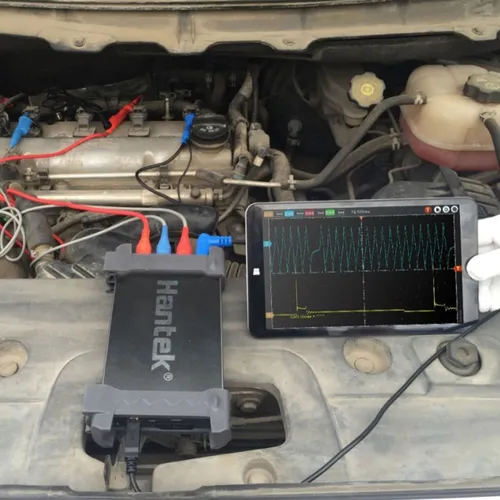

Automotive Diagnostics Functions

Sensors: intake manifold vacuum degree & ignition, lampblack adjustment valve vacuum degree & ignition, exhaust ignition (idle), exhaust ignition (start).
Start & Charge: Charging circuit, current and voltage.
Actuator: Petrol / Diesel.
CAN-Bus: CAN bus data observation, CAN bus signal integrity, CAN bus LH long-term acquisition, LIN bus.
Sensors: air flow meter, camshaft, crankshaft, distributor, lambda sensor, throttle position.
Ignition: Primary/Secondary.

Oscilloscope Features

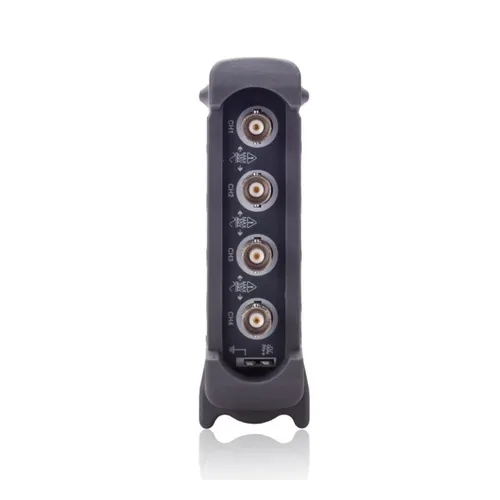

4 channels 70MHz high bandwidth oscilloscope,
1GSa/s real time sampling rate, 2mV-10V/DIV high input sensitivity and large input range

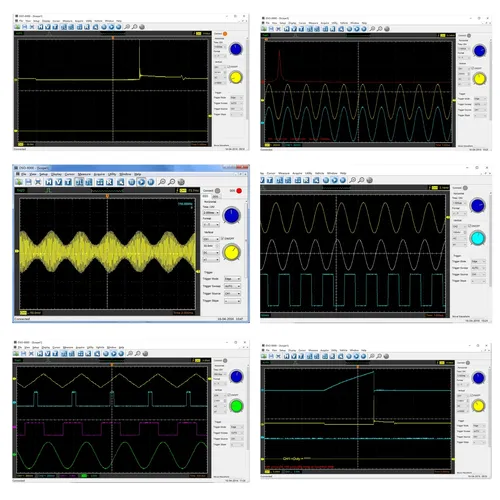

Waveform averaging, afterglow, lightness control, reverse, add, subtract, multiply, divide, X-Y display.
Possibility to export waveform data in EXCEL,BMP,JPG.
Works with computers, tablet PC and laptops with WIN10/ WIN8/WIN7
USB 2.0 interface plug and play, and no need for extra power supply;
Over 20 kinds of automatic measurement functions, PASS/FAIL Check function.
Resourceful trigger function, dynamic cursor tracking, waveform record and replay function.
Good mechanical design with small size - easy to carry case made from Anodised aluminium.
FFT spectrum analyser. One computer could connect with multiple oscilloscopes, expand the channel number easily.
Provide secondary development library DLL; Provide Labview\VB\VC\QT developing examples.

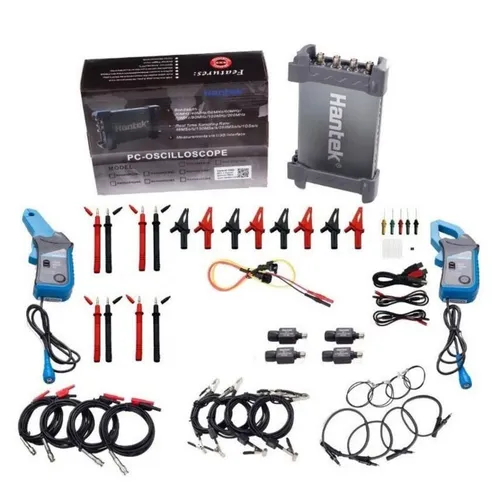

Package Includes

Main Unit
1 x Tool Case
4 X HT18A Dolphin/Gator Clip
4 X H19 Multimeter Probe
4 X HT20:1 Attenuator
4 X HT25 High Pressure Ignition Probe
4 X HT30A Auto test cable
1 X HT301 Breakout Lead
1 X HT307 Acupuncture Probe Set
4 X HT308 Coil-on-plug extension cord
2 X HT324 Dolphin/Gator Clip cable
1 X CC65 65A Current Clamp
1 X CC650 650A Current Clamp

(H6074BEK4)

Perform over 80 types of automotive measurement functions with Hantek 4 Channel Oscilloscope.

Diagnostics include Ignition Action/Sensors/Bus Diagnosis/Actuator/Startup & Charge).

4 channels oscilloscope with 1GSa/s real time sampling rate, 2mV-10V/DIV high input sensitivity and large input range, 70MHz high bandwidth, small size and easy to carry.

Dynamic cursor tracking, waveform record and replay function.

Powers up by a USB 2.0 cable and works with majority of devices with WIN10/ WIN8/WIN7 systems.

Model	Hantek6074BE
Bandwidth	70MHz
Automotive Measurement Function	Intake manifold vacuum & ignition, Petrol fumes adjusting valve vacuum & ignition, Idle exhaust ignition, Starting exhaust ignition; Sensor: Air Flow Meter, Camshaft, Crankshaft, Distributor, Lambda sensor, Throttle position; CAN bus data examine, CAN bus signal integrity, CAN bus LH long time acquisition, LIN bus; Performer: Petrol/Diesel; Starter and charging circuits
Channel	4 CH
Real-time Sampling Rate	1GSa/s
Memory Depth	64K
Time Base Precision	±50ppm
Time Base Range	2ns/div-1000s/div (1-2-4 sequences)
Input Impedance	1MΩ 25pF
Input Sensitivity	2mV/div～10V/div
Vertical Resolution	8Bit
Vertical Displacement Range	2mV ~ 10V/div @ x1 probe; 20mV ~ 100V/div @ x10 probe； 200mV ~ 1000V/div @ x100 probe; 2V ~ 10000V/div @ x1000 probe
DC Gain Accuracy	±3%
Bandwidth Limit	20MHz
Trigger Mode	Edge, Pulse, Video, Alternative
Trigger Source	CH1, CH2, CH3,CH4
Waveform Signal Process	+,-,x,÷,FFT, Invert
Cursors Measurement	Cross, Trace, Horizontal, Vertical
Auto Measurement	Vpp, Vamp, Vmax, Vmin, Vtop, Vmid, Vbase, Vavg, Vrms, Vcrms, Preshoot, Overshoot, Frequency, Period, Rise Time, Fall Time, Positive Width, Negative Width, Duty Cycle
Volume	175mm * 105mm * 25mm
Weight	0.9KG
