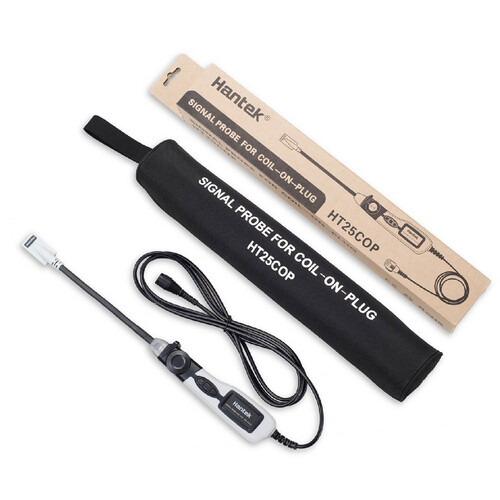

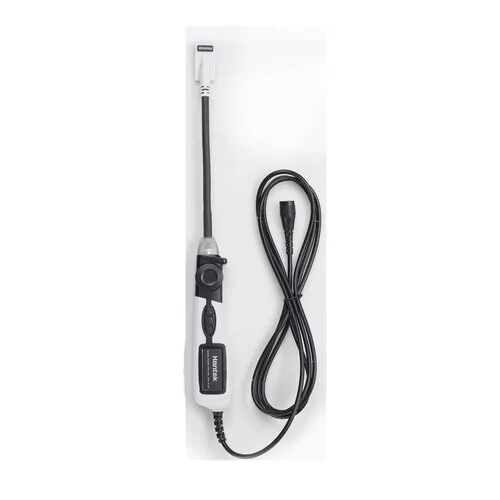

Hantek Ignition Waveform Signal Probe – Coil On Plug (COP)
The Hantek HT25COP Coil-On-Plug Ignition Signal Probe is designed for capturing secondary ignition waveforms from modern COP ignition systems quickly and safely. When used with Hantek oscilloscope device, the HT25COP allows technicians to analyse real ignition events in real time — providing deeper insight into combustion and ignition performance beyond standard scan tool data.

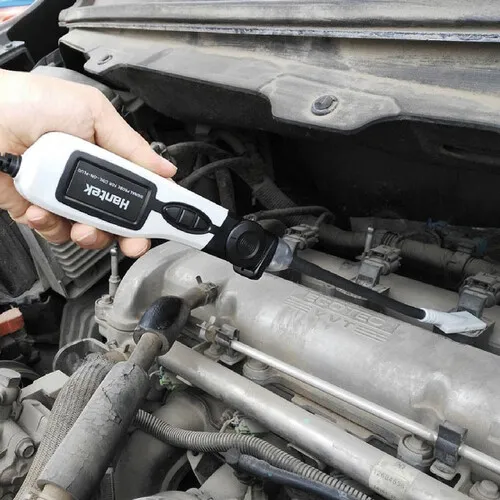

This probe enables accurate waveform capture without dismantling ignition components or using extension leads, making it ideal for professional diagnostic work.
Suitable for diagnosing:
- Engine misfires
- Weak spark or poor combustion
- Ignition coil degradation
- Rough idle or hesitation
- Performance tuning verification
- Cylinder-to-cylinder comparison
- Designed for modern petrol engines with COP ignition systems.
Why Use an Ignition Waveform Probe?
A professional scan tool displays ECU-calculated values such as ignition timing, misfire counters and stored fault codes.
An oscilloscope combined with the HT25COP probe allows you to observe the actual electrical waveform generated by the ignition coil.
This gives technicians the ability to:
- Analyse dwell time and burn time
- Compare ignition patterns across cylinders
- Detect weak or degrading ignition coils
- Identify intermittent misfires
- Evaluate spark plug condition
- Assess combustion stability
- Diagnose ignition driver and wiring faults
Waveform analysis provides a direct window into what is happening inside the combustion chamber.
Diagnostic Capabilities
By analysing ignition waveforms, technicians can identify potential issues such as:
- Excessive spark plug gap
- Carbon fouling or oil contamination
- Weak spark energy
- Ignition coil insulation breakdown
- Combustion irregularities
- Power supply instability
Warning
- To avoid injury keep the probe away from moving parts, such as the alternator drive belt and cooling fans.
- To present electric shock do not use if the probe’s sensor plate’s insulation shows signs of damage.
Key Features
- Designed for modern Coil-On-Plug (COP) ignition systems
- Non-intrusive signal pickup – no piercing required
- Built-in high-voltage attenuation for oscilloscope protection
- Direct BNC connection for automotive oscilloscopes
- Fast setup for workshop diagnostics
- Suitable for professional workshop use
Technical Specifications
- Model: HT25COP
- Probe Type: Coil-On-Plug secondary ignition pickup
- Output Connector: Standard BNC
- Signal Type: Secondary ignition waveform
- Attenuation: Integrated high-voltage attenuation
- Application: Petrol engines with COP ignition systems
- Compatibility: Hantek automotive oscilloscopes and other BNC-input scopes
