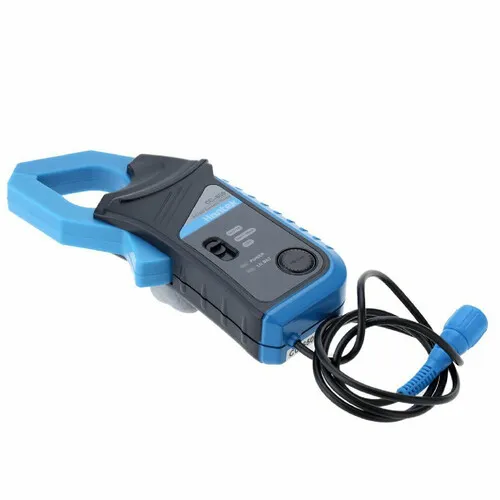

AC/DC Current Clamp, 400Hz Bandwidth, 1mV/10mA, 650A; a transducer which allows your multimeter to measure current data and enable your oscilloscope to measure the current waveforms.

Note: This product comes with BNC connector. BNC to Banana plug is sold separately.

Main Features

  • AC/DC frequency range: Up to 400Hz
  • Effective Measurement Range: 20mA to 650A DC
  • It is a transducer which allows your multimeter to measure current data and enable your oscilloscope to measure the current waveforms.
  • Its current transducer is composed by permalloy and hall element, which linearly transform the AC or DC current to AC or DC current voltage. And if connect to an oscilloscope by BNC type connector, you're able to observe the current waveforms; If connect to a multimeter by banana type connector, you can obtain the current data.

Application

  • Power circuit measurement and malfunction analysis;
  • Motor drive of frequency converter (or other electronics) measurement;
  • Power electronics equipments measurement.

(CC650)

AC/DC frequency range: Up to 20 kHz
Effective Measurement Range: 20mA to 65A DC
Power circuit measurement and malfunction analysis
Motor drive of frequency converter (or other electronics) measurement
Power electronics equipments measurement
Allows your multimeter to measure current data and your oscilloscope to measure the current waveforms.

General Specifications

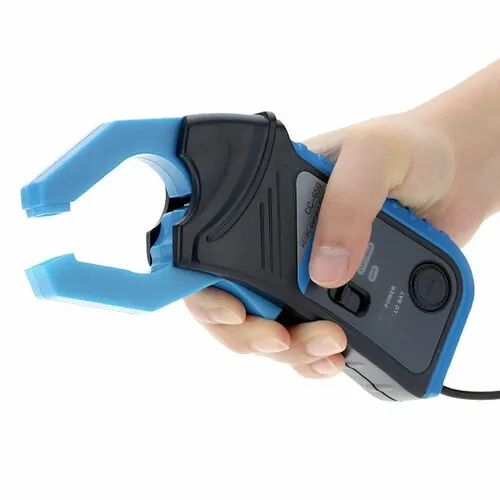

Captured Conductor diameter Size: 30mm maximum
Low Battery Indicator: Red LED lighting
Operating Temperature: 0℃ to 50℃, 70% R.H.
Storage Temperature: -20℃~+70℃, 80% R.H.

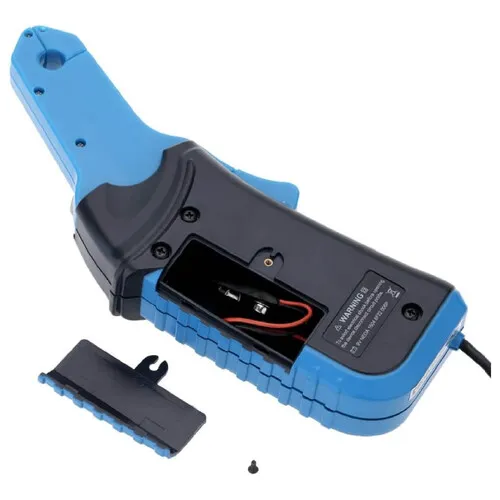

Battery type: 9V DC, NEDA 1604, 6F22, 006P
Battery Life: 100 hours typical with carbon-zinc
Weight: 250 gram typical
Dimensions: 195 mm (H) x 70 mm (W) x 33 mm (D)
Output: wire with a straight banana plug or BNC connector
ELECTRICAL (At 23±5℃, 70% R.H. maximum)

Efficient Measure Range:

1mV/100mA: 100mA to 20A, multimeter range is set to DC or rms AC

                       200mV

1mV/1A: 1A to 200 A, multimeter range is set to DC or rms AC 200mV

                200A to 650 A, multimeter range is set to DC or rms AC 2V

Accuracy

DC current: 1mV/100mA

±(1.5% + 50m A) 100mA to 200A

DC current: 1mV/1A /

±(2% + 0.5 A) 1A to 200 A

±(4% + 2 A) 200A to 650 A

AC current (50 Hz arrive at 400 Hz): 1mV/100mA

±(3%±0.5A) 100mA ~ 100A

±(8%±1A) 100A ~ 150A

AC current (50 Hz arrive at 400 Hz): 1mV/1A

±(3%±2A) 1A ~ 500A

±(6%±2A) 500A ~ 600A

±(8%±2A) 600A ~ 650A

Load Resistance: 10kΩ Typical
Temperature coefficient: 0.1×(defined accuracy) per degree C (0℃to18℃, 28℃to50℃)
