VIdent iSmart800 Diagnostic OBD Scan Tool
SKU code: iSmart800
iSmart800 is a windows tablet based scan tool featured with intuitive user interface, sophisticated diagnosis, wide vehicle coverage, advanced graphing, bi-directional component tests, component calibration, module coding and programming. It utilises a 8“ high resolution IPS LCD touch screen (1280 x 800), a secure, solid-state 32GB hard drive and a Intel Quad-core processor that delivers boot-up in less than 30 seconds, the multitask-capable windows 10 Operating System to offer you the best intuitive user interface and customisable configuration. With an unusual combination of sophistication and simple operation, iSmart800 is suited to any tech—from rookies to seasoned diagnostic specialists.
Software Features
- Coverage - covers over 78 American, European and Asian makes from 1994 to 2019
- Diagnostics - complete capabilities for codes, live data, freeze frame, functional tests, ECU information, adaptation, matching, and coding for dozens of vehicle systems
- Service Functions - performs variety of most common service functions including oil service and mileage interval reset, EPB, ABS & SRS, BCM/SIR reseting, DPF regeneration, throttle body alignment, steering angle sensor calibration, battery configuration, etc
- Fast Diagnostics- Automatic and manual VIN identification for easy ECU accessibility. One-touch Auto scan with read and quick erase-codes options and automatic vehicle-specific system detection, meaning you won't have to waste time scanning through data that is not relevant

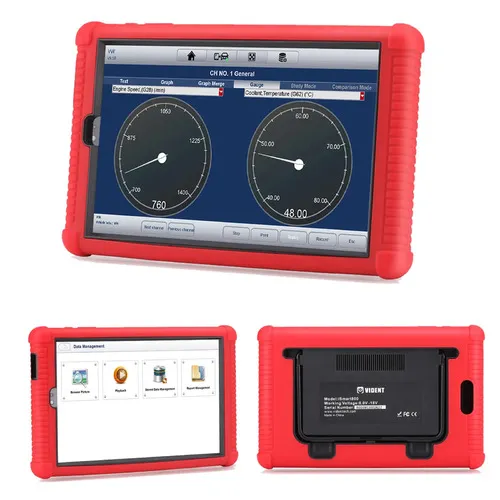

- Live Data - Customised text and graph live data with ability to record all available live data parameters and graph any four on screen at once
- Study and compare mode of Live data - real-time data can be compared against known good measurements
- Data Manager - Comprehensive data manager that can store thousands of vehicle records, customer data, vehicle IDs, fault codes, repair notes and diagnostic results
- Data Logging - Interactive Data Logging sessions and remove control enable direct contact with Vident Technical

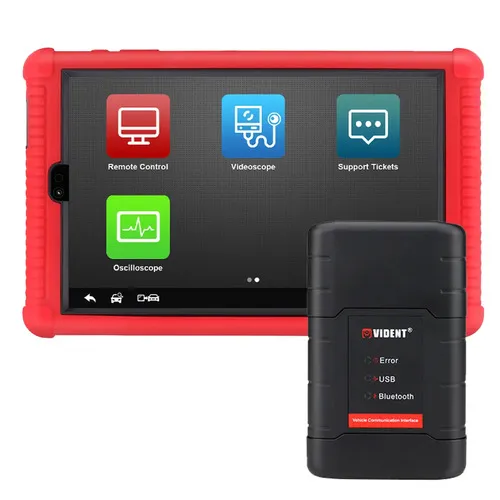

- Windows System - High compatibility windows operation system for more applications such as oscilloscope, video scope, OE technical data and more
- Updates - 3 Years free software update
Hardware Features
- 8" high-resolutions 1200*800 capacitive touch screen
- Front 2 MP camera to save and share photos for your repair records
- Wireless Bluetooth® communication with vehicles
- Dual band WIFI to access your favourite web resources
- Built-in rechargeable Li-polymer battery for up to 6 hours of continuous operation
- USB, audio, HDMI and auxiliary ports make it easy to connect accessories
- Secure, solid-state 32GB hard and Intel Quad-core processor
- TF card slot for extensive memory

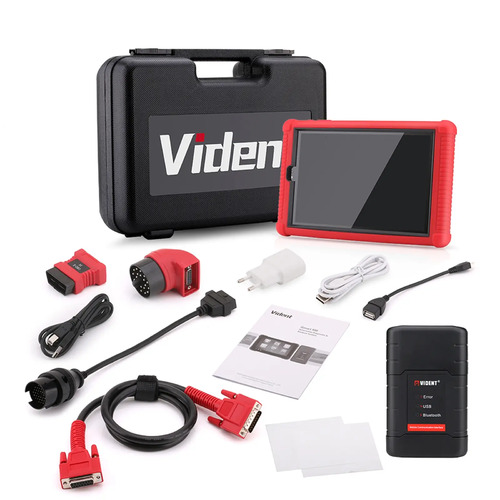

Package Includes
- 8.0" IPS LCD touch screen
- Bluetooth scanner module
- Mercedes Benz 38pin
- BMW 20pin
- Diagnostic Cable & connector
- AC/DC Power Adapter (12V)
- User Manual

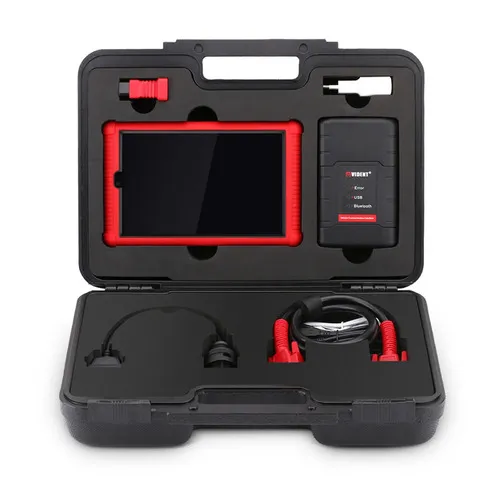

- Carrying Case
(iSmart800)
Compatible with OBDI & OBDII vehicles |
70+ Vehicle Brands |
Professional diagnostics + Service Reset + Coding |
8" high-resolution IPS Rated tablet |
32GB hard drive and Intel Quad-core processor |
3 years free updates |
Operating System: Windows 10 Home |
Processor: Intel Cherrytrail Z8350, 1.44Ghz-1.92GHz |
Memory: 2GB LPDDR3 RAM&32GB Emmc ROM |
Display: 8.0” 16:10, 800*1280 IPS, 250Nit, LCD touch screen |
WIFI Connectivity: WIFI 802.11(a/b/g/n/ac) dual frequency 2.4G + 5.8G WIFI intel 3165D2WG |
Bluetooth Connectivity: Built-in BT4.2 (BLE) class 1 bluetooth |
Touch panel: 5 points capacity TP,G+G hardness over than 7H, scratch resistant, TP thickness:1.1mm COF |
G-sensor: Built-in Gravity Accelerator Sensor |
Camera: Front 2.0MP with indicator light |
Power & Battery: Built-in 3.7V/6000mAh Li-polymer battery |
TF Card: Supports TF X1 Max 128G |
Audio Output: 3.5mm standard earphone jack X 1 |
HDMI 1.4a Type C X1 |
DC Jack: DC 5V 3A 3.5mm DC jack x1 |
Speaker: Built-in 8Ω/.08 waterproof speaker x1 |
Microphone: Sensitivity:-42db, output impedance 2.2KΩ |
Operation Temperature:-10℃ -- 50℃ |
Storage Temperature: -30 ℃ -- 70 ℃ |
Input Voltage: DC/12V (9-35 V) |
IP Rating: IPS |
Dimension: 540X390X130mm (LxWxH) |
Weight: 5.73KG |
OBD Scan Tools
Comparison Table
CR MAX
|
ISMART800 PRO
|
MX808s
|
X431 V PROS ELITE
|
|
---|---|---|---|---|
Hardware | ||||
Display | 7" Touch Screen, 1024*600 | 7" Touch Screen, 1024*600 | 7" Touch Screen, 1024*600 | 8" Touch Screen, 1280* 800 |
Processor | 4NUCLEAR 1.3 GHZ | Cortex-A7, 1.3GHz | Cortex-A9 processor(1.5 GHz) | 2.0 GHz 4-Core |
Operating System | Android 8.1.0 | Android 7.1 | Android 11 | Android 10.0 |
Memory | 16GB | 1GB RAM, 72GB ROM | 4GB RAM, 64GB ROM |
4GB RAM, 64GB ROM |
Battery | 3.7 V/5000 mAh | 7200mAh | 3.7 V/5000 mAh | 6300mAh |
WiFi Connection | ✓ | ✓ | ✓ | ✓ |
OBD Connection | OBD Cable | OBD Cable | OBD Cable | OBD Cable |
Software | ||||
OBD Compatibility |
OBD-II Up to 3-4 Yrs Old |
OBD-I / OBD-II Up to 2-3 Yrs Old |
OBD-I / OBD-II Up to 1 Yr Old |
OBD-I / OBD-II Up to 1 Yr Old |
CAN FD Protocol | - | ✓ | ✓ | ✓ |
Full OBD Scan | ✓ | ✓ | ✓ | ✓ |
Read & Clear DTC | ✓ | ✓ | ✓ | ✓ |
Live Data | ✓ | ✓ | ✓ | ✓ |
Auto VIN Identification | ✓ | ✓ | ✓ | ✓ |
Service Reset | ✓ | ✓ | ✓ | ✓ |
Bi-Directional Control | ✓ | ✓ | ✓ | ✓ |
Coding & Adaptation | - | ✓ | - | ✓ |
IMMO | - | Pro | Basic | Basic |
TPMS | - | Basic | Basic | Basic |
OBD Relearn | - | ✓ | - | ✓ |
Software Update | Free | 3 Years | 2 Years | 1 Year |
LEARN MORE | LEARN MORE | LEARN MORE | LEARN MORE |
