Vident iSmart910 Workshop Professional Scan Tool - All System + Functions + Coding
Compatible with OBDI & OBDII vehicles |
70+ Vehicle Brands |
Professional diagnostics + Service Reset + Coding |
10.1" high-resolution IP65 Rated tablet |
32GB hard drive and Intel Quad-core processor |
3 years free updates |


Vident iSmart910 is a IP65 rated, windows tablet based scan tool featured with intuitive user interface, sophisticated diagnosis, wide vehicle coverage, advanced graphing, bi-directional component tests, component calibration, module coding and programming. It utilises a 10.1“ high resolution IPS LCD touch screen (1280 x 800), a secure, solid-state 32GB hard drive and a Intel Quad-core processor that delivers boot-up in less than 30 seconds, the multitask-capable windows 10 Operating System to offer you the best intuitive user interface and user-customisable configuration. With an unusual combination of sophistication and simple operation, iSmart910 is suited to any tech—from rookies to seasoned diagnostic specialists.
Software Features
- Coverage - covers over 78 American, European and Asian makes from 1994 to 2019
- Diagnostics - complete capabilities for codes, live data, freeze frame, functional tests, ECU information, adaptation, matching, and coding for dozens of vehicle systems
- Service Functions - performs variety of most common service functions including oil service and mileage interval reset, EPB, ABS & SRS, BCM/SIR reseting, DPF regeneration, throttle body alignment, steering angle sensor calibration, battery configuration, etc

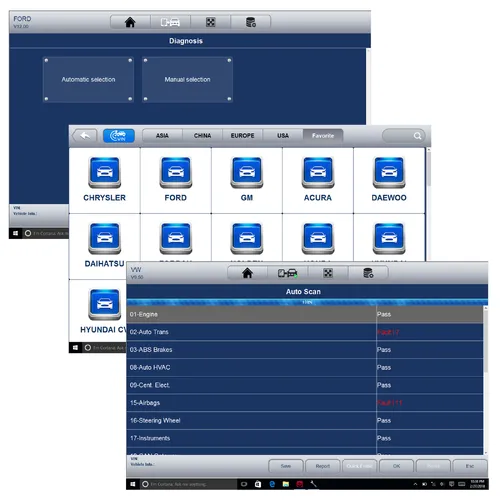

- Fast Diagnostics- Automatic and manual VIN identification for easy ECU accessibility. One-touch Auto scan with read and quick erase-codes options and automatic vehicle-specific system detection, meaning you won't have to waste time scanning through data that is not relevant

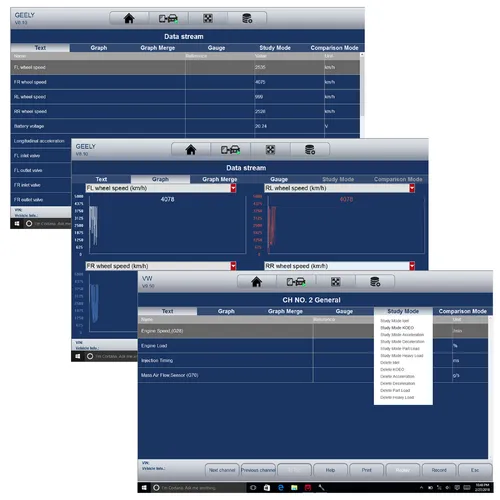

- Live Data - Customised text and graph live data with ability to record all available live data parameters and graph any four on screen at once
- Study and compare mode of Live data - real-time data can be compared against known good measurements
- Data Manager - Comprehensive data manager that can store thousands of vehicle records, customer data, vehicle IDs, fault codes, repair notes and diagnostic results
- Data Logging - Interactive Data Logging sessions and remove control enable direct contact with Vident Technical
- Windows System - High compatibility windows operation system for more applications such as oscilloscope, video scope, OE technical data and more
- Updates - 3 Years free software update
Hardware Features
- 10.1" high-resolution 1280x800 capacitive touch screen for a detailed view IP65 Rated tablet - shock-resistance, waterproof and dirt-proof
- Front and rear built-in camera to save and share photos for your repair records
- Wireless Bluetooth communication with vehicles within up to 70~100meters working range
- Dual band WIFI to access your favourite web resources
- Built-in rechargeable lithium-ion battery for up to 10 hours of continuous operation
- USB, audio, HDMI and auxiliary ports make it easy to connect accessories
- Secure, solid-state 32GB hard drive and Intel Quad-core processor
- Built-in 3G SIM card slot allowing internet access even on the move
- With GPS Location module
- TF card slot for extensive memory

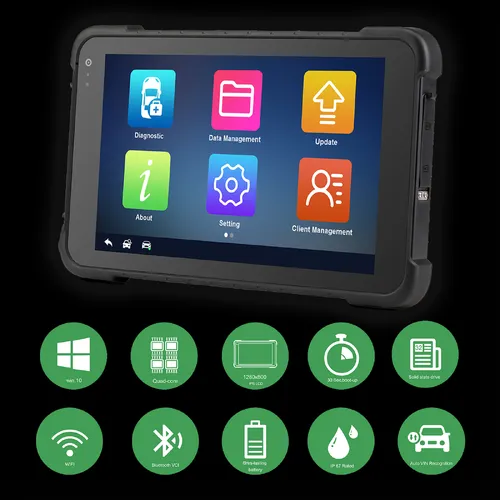

Incredibly Fast, Thin, Ultra Robust
With a 10.1" high resolutions IPS LCD touch screen (1280 x 800), a secure, solid-state 32GB hard drive and a Quad-core Intel Baytrail processor that delivers boot-up in less than 30 seconds, the multitask-capable windows Operating System, All in a slim, compact housing, i900AU is prepared to offer you revolutionary product experience.

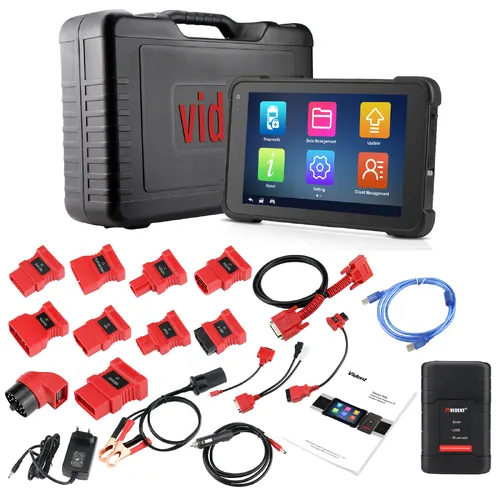

Package includes
- iSmart-910 10.1" touch screen
- Bluetooth scanner module
- Mercedes Benz 38pin Adapter
- PSA 2pin Adapter
- Fiat 3pin Adapter
- GM/Daewoo 12pin Adapter
- DMW 20pin Adapter
- Kia 20pin Adapter
- Mitsubishi/Hyundai 12+16pin Adapter
- Nissan 14pin Adapter
- Honda 3pin Adapter
- Toyota 17pin Adapter
- Toyota 22pin Adapter
- Mazda 17pin Adapter
- Audi 4pin Adapter
- AC/DC Power Adapter (12V)
- Diagnostic Cable
- User Manual
- Carrying Case
- Clip Cable
- CD
- Cigarette Lighter
(iSmart910)
Compatible with OBDI & OBDII vehicles |
70+ Vehicle Brands |
Professional diagnostics + Service Reset + Coding |
10.1" high-resolution IP65 Rated tablet |
32GB hard drive and Intel Quad-core processor |
3 years free updates |
Operating System: Windows 10 Home |
Processor: Intel Cherrytrail Z8350, 1.44Ghz-1.92GHz |
Memory: 2GB LPDDR3 RAM&32GB Emmc ROM |
Display: 8.0” 16:10, 800*1280 IPS, 250Nit, LCD touch screen |
WIFI Connectivity: WIFI 802.11(a/b/g/n/ac) dual frequency 2.4G + 5.8G WIFI intel 3165D2WG |
Bluetooth Connectivity: Built-in BT4.2 (BLE) class 1 bluetooth |
Touch panel: 5 points capacity TP,G+G hardness over than 7H, scratch resistant, TP thickness:1.1mm COF |
G-sensor: Built-in Gravity Accelerator Sensor |
Camera: Front 2.0MP with indicator light, rear 5.0MP |
Power & Battery: Built-in 3.7V/6000mAh Li-polymer battery |
TF Card: Supports TF X1 Max 128G |
Audio Output: 3.5mm standard earphone jack X 1 |
HDMI 1.4a Type C X1 |
DC Jack: DC 5V 3A 3.5mm DC jack x1 |
Speaker: Built-in 8Ω/.08 waterproof speaker x1 |
Microphone: Sensitivity:-42db, output impedance 2.2KΩ |
Operation Temperature:-10℃ -- 50℃ |
Storage Temperature: -30 ℃ -- 70 ℃ |
Input Voltage: DC/12V (9-35 V) |
IP Rating: IP65 |
Dimension: 540X390X130mm (LxWxH) |
Weight: 5.73KG |
Vident iSmart Diagnostic Scan Tools
Comparison Table
|
iSmart800 basic |
iSmart900 basic |
iSmart900 enhanced |
iSmart910 enhanced |
|
|
|
|
|
|
|
|
|
|
Hardware / Software |
||||
Vehicle Connection |
Bluetooth VCI |
Bluetooth VCI |
Bluetooth VCI |
Bluetooth VCI |
Display |
8.0" 1920*1200 IPS LCD |
8.0” 800*1280 IPS LCD |
8.0” 800*1280 IPS LCD |
10.1” 800*1280 IPS LCD |
Processor |
Intel Z8350, 1.44Ghz-1.92GHz |
Intel Cherrytrail Z8350, 1.44Ghz-1.92GHz |
Intel Cherrytrail Z8350, 1.44Ghz-1.92GHz |
Intel Cherrytrail Z8350, 1.44Ghz-1.92GHz |
Memory Storage ROM |
32GB |
32GB |
32GB |
32GB |
Battery |
3.7V/4500mAh |
3.7V/6000mAh |
3.7V/6000mAh |
3.7V/6000mAh |
Full Adapter Kit |
Benz/BMW |
Benz/BMW |
☑️ |
☑️ |
Operating System |
Windows 10 |
Windows 10 |
Windows 10 |
Windows 10 |
Rear Camera |
- |
5.0MP |
5.0MP |
5.0MP |
Front Camera |
2.0MP |
2.0MP |
2.0MP |
2.0MP |
Diagnostics Functions |
||||
All SYS DTC Scan |
☑️ |
☑️ |
☑️ |
☑️ |
Service Functions |
☑️ |
☑️ |
☑️ |
☑️ |
Bi-Directional Control |
☑️ |
☑️ |
☑️ |
☑️ |
Auto VIN Technology |
☑️ |
☑️ |
☑️ |
☑️ |
ECU Coding |
☑️ |
☑️ |
☑️ |
☑️ |
J2534 ECU Programming |
- |
- |
- |
- |
70+ Brand Coverage |
☑️ |
☑️ |
☑️ |
☑️ |
Data Manager |
☑️ |
☑️ |
☑️ |
☑️ |
Shop Manager |
☑️ |
☑️ |
☑️ |
☑️ |
Remote Support |
☑️ |
☑️ |
☑️ |
☑️ |
Optional AddOns |
||||
TPMS |
- |
- |
- |
- |
Oscilloscope |
☑️ |
☑️ |
☑️ |
☑️ |
Inspection Camera |
☑️ |
☑️ |
☑️ |
☑️ |
Software Update |
3 Yrs |
3 Yrs |
3 Yrs |
3 Yrs |
|
LEARN MORE |
LEARN MORE |
LEARN MORE |
LEARN MORE |
