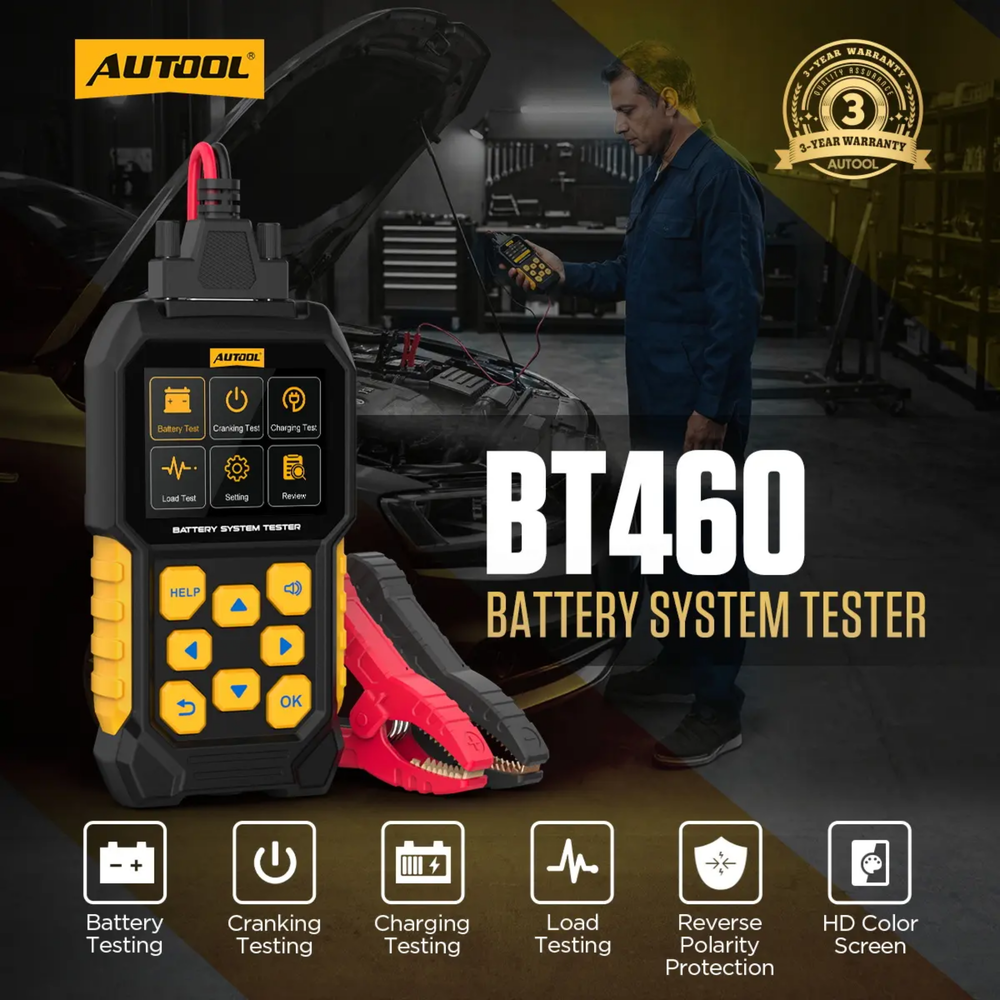

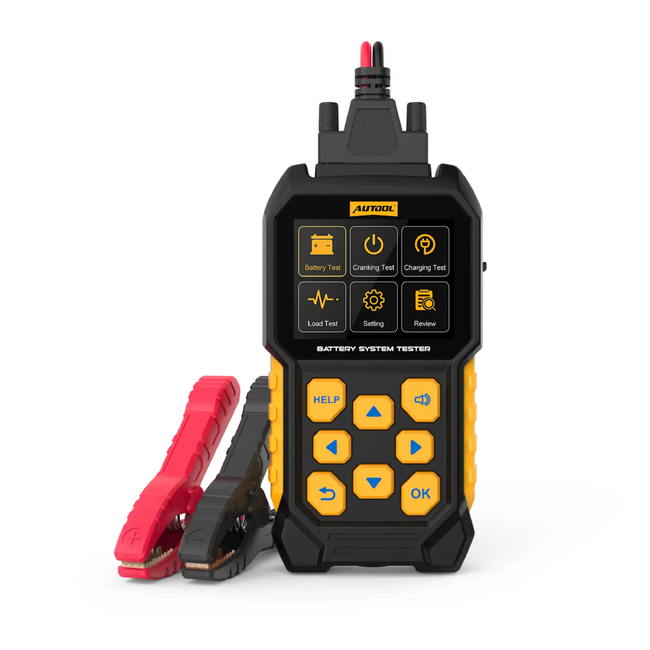

AUTOOL BT460 Automotive Battery Tester 12V/24V

AUTOOL BT460 12V/24V Automotive Battery & Charging System Tester

The AUTOOL BT460 Automotive Battery System Tester provides professional testing for 12V and 24V lead-acid batteries and vehicle electrical systems. It evaluates battery health, cranking performance, charging condition and voltage under electrical load, while displaying voltage, current, resistance, SOH, SOC and ripple data. With a 2.8-inch colour screen, 30–2000 CCA range, multiple battery standards and reverse polarity protection, it is ideal for workshops, technicians and automotive servicing.

The AUTOOL BT460 Automotive Battery System Tester provides professional testing for 12V and 24V lead-acid batteries and vehicle electrical systems.

Main Features

12V/24V Battery Testing – Tests supported 12V and 24V automotive lead-acid batteries across an 8–30V measurement range, providing essential battery condition data for workshop and vehicle servicing.
Battery Health Analysis – Evaluates battery voltage, internal resistance, cold cranking capability, state of health (SOH), state of charge (SOC) and ageing condition to support battery condition assessment.
Cranking System Test – Measures cranking voltage and current behaviour during engine starting to help technicians assess battery starting performance and identify potential cranking system issues.
Charging System Test – Checks charging voltage, generator output, rectifier and diode behaviour to assist with identifying charging system abnormalities, including potential overcharging or insufficient charging.
Maximum Load Test – Monitors battery voltage behaviour while vehicle electrical accessories are operating, helping assess system voltage under electrical load without functioning as a resistive high-current battery load tester.

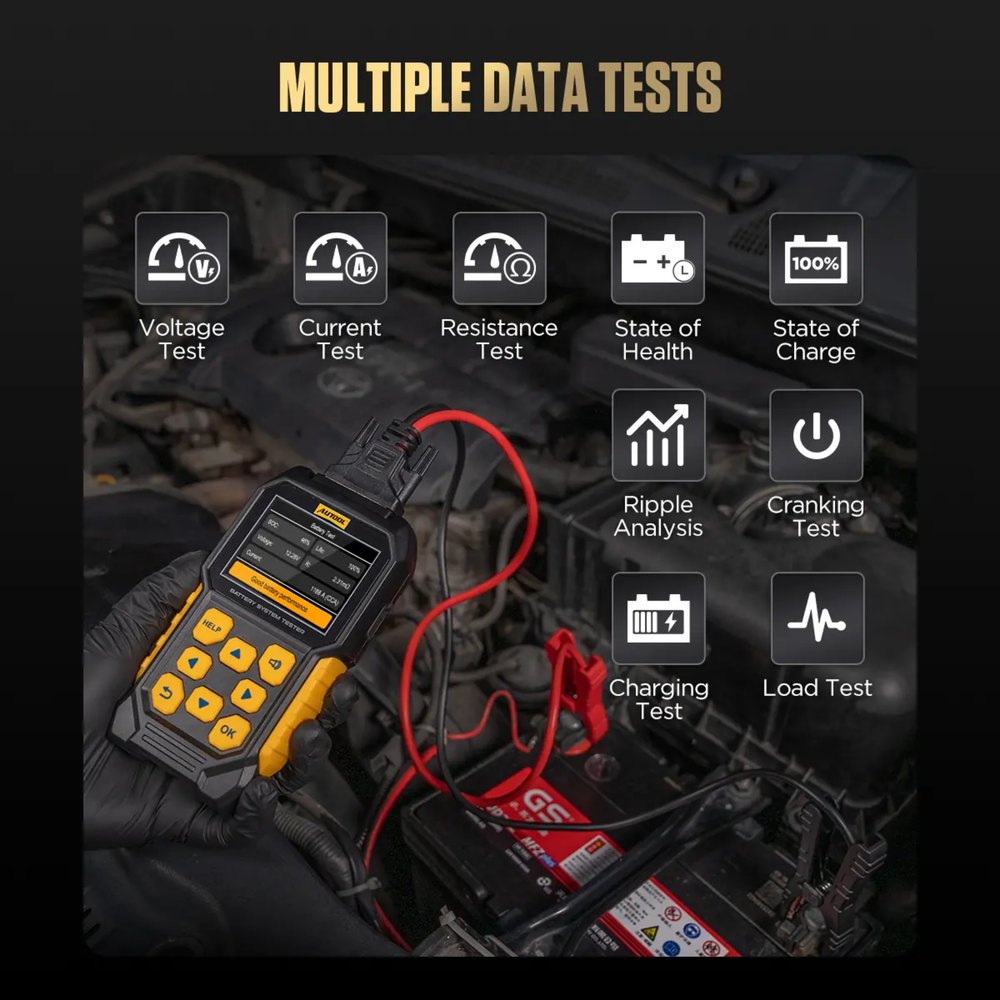

Battery & System Data Analysis – Provides access to voltage, current, resistance, SOH, SOC, ripple, cranking, charging and load-related information for a more comprehensive assessment of battery and electrical system condition.

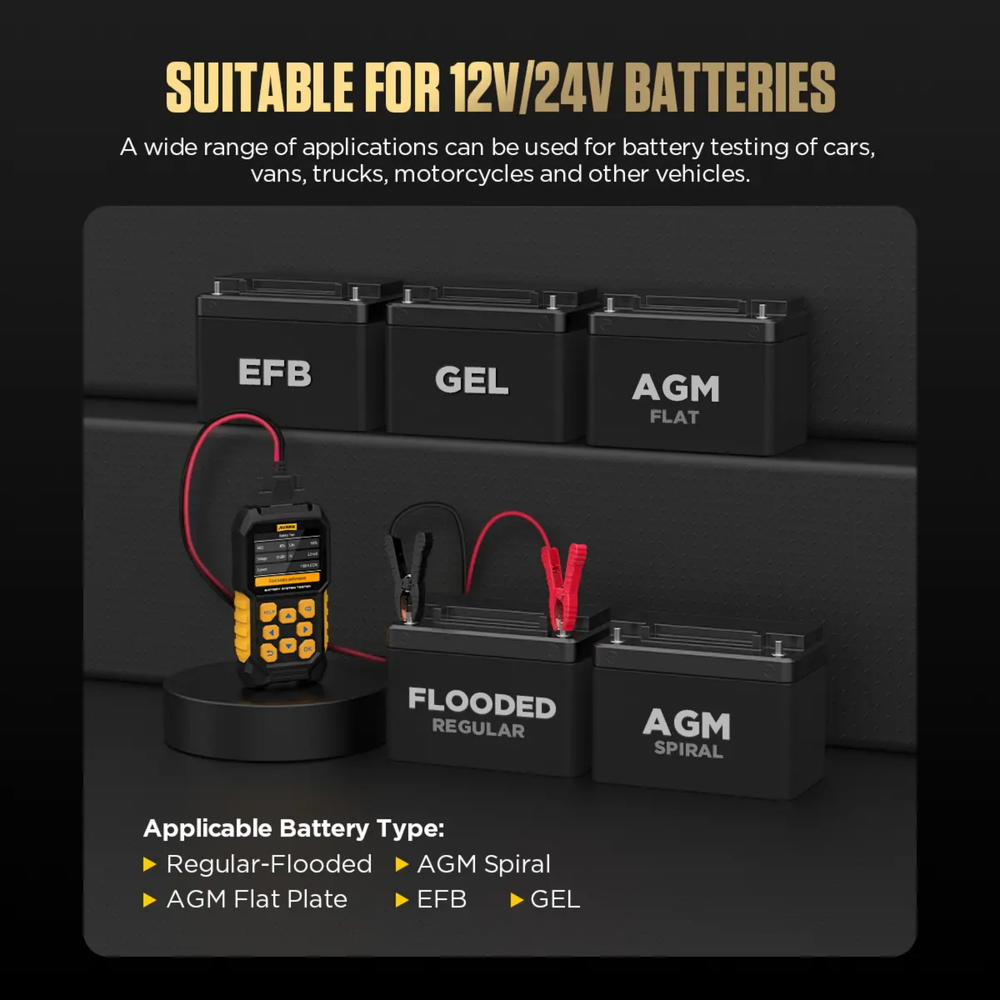

Broad Lead-Acid Battery Compatibility – Supports Regular Flooded, AGM Flat Plate, AGM Spiral, GEL and EFB batteries commonly used across passenger vehicles, motorcycles, vans, trucks and workshop applications.
Multiple Battery Test Standards – Supports commonly used battery measurement standards including CCA, IEC, EN, DIN, JIS and GB, allowing testing according to the applicable battery rating information.
30–2000 CCA Test Range – Provides a broad 30–2000 CCA testing range for supported automotive lead-acid batteries, covering a variety of battery capacities and vehicle applications.

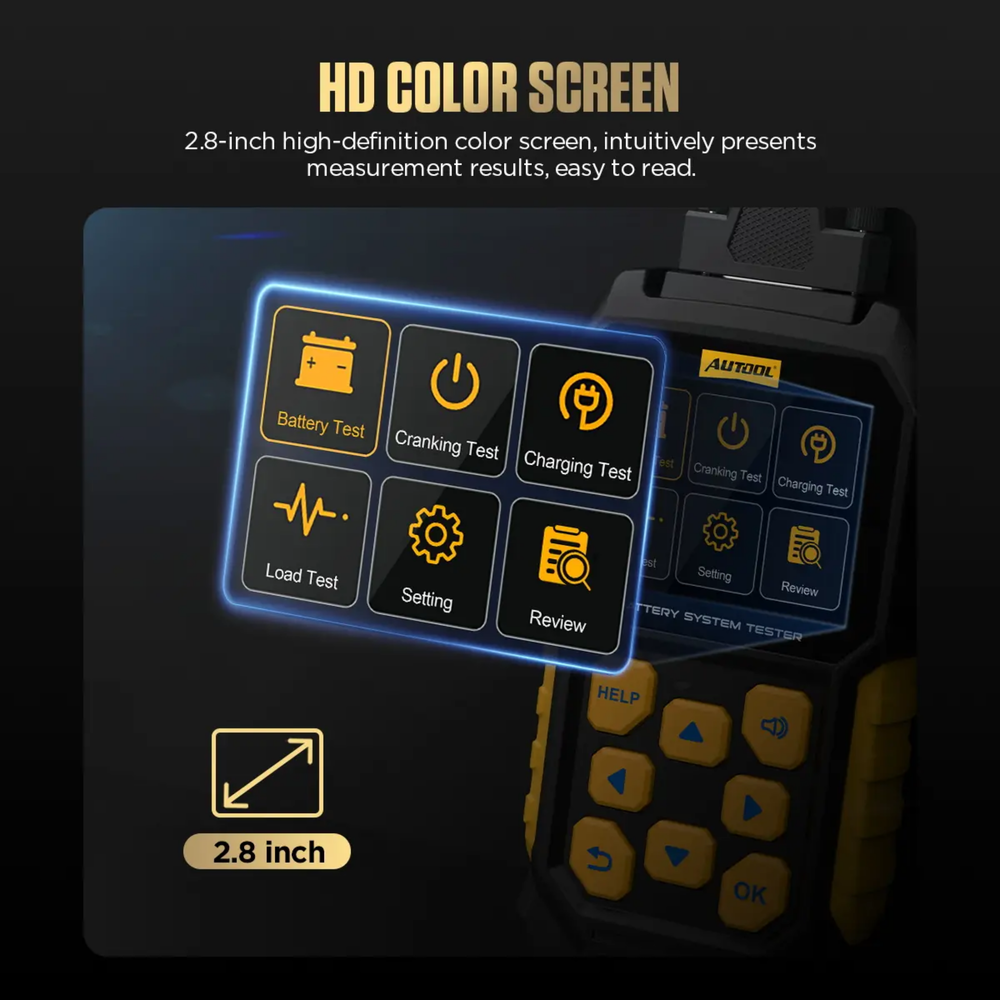

2.8-Inch Colour Display – Features a clear 2.8-inch colour screen for viewing test menus, battery information and diagnostic results in workshop and automotive service environments.

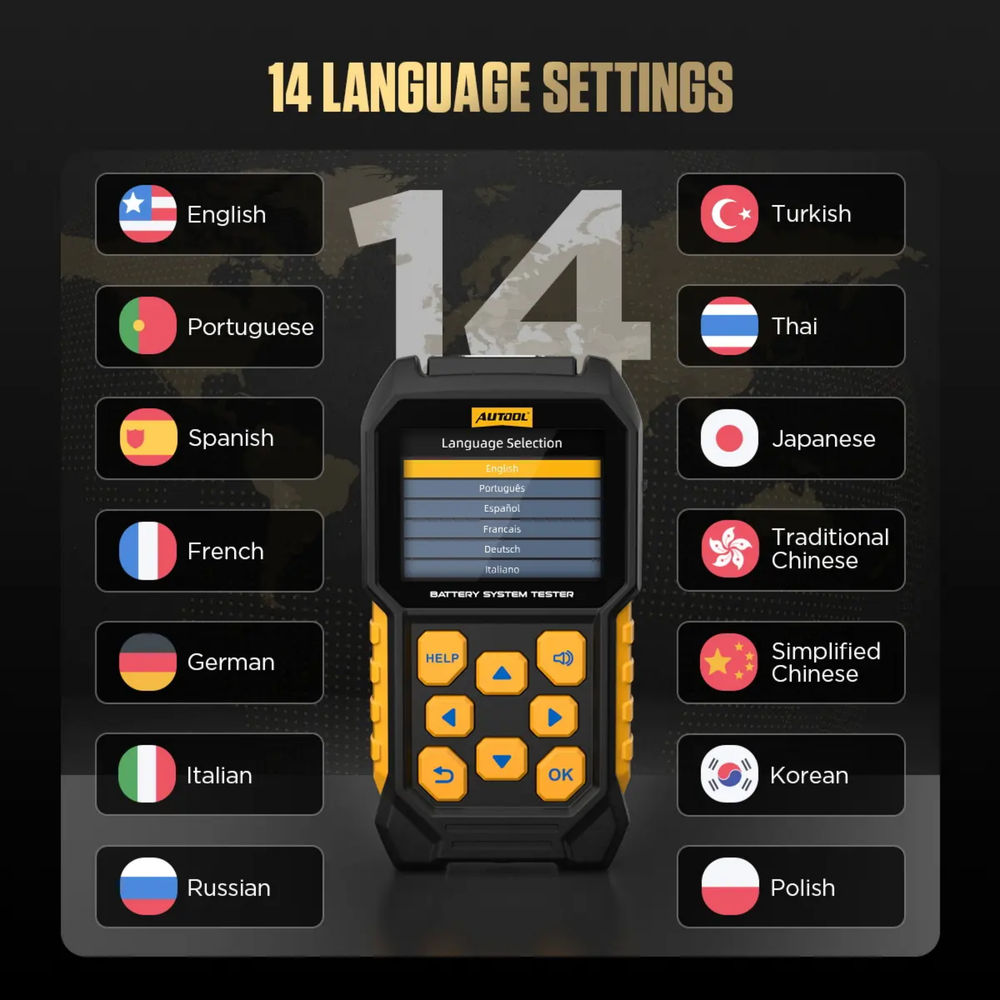

14-Language Interface – Supports 14 selectable languages, including English, Spanish, German, French, Italian, Portuguese, Polish, Turkish, Russian, Japanese, Korean and additional supported languages.

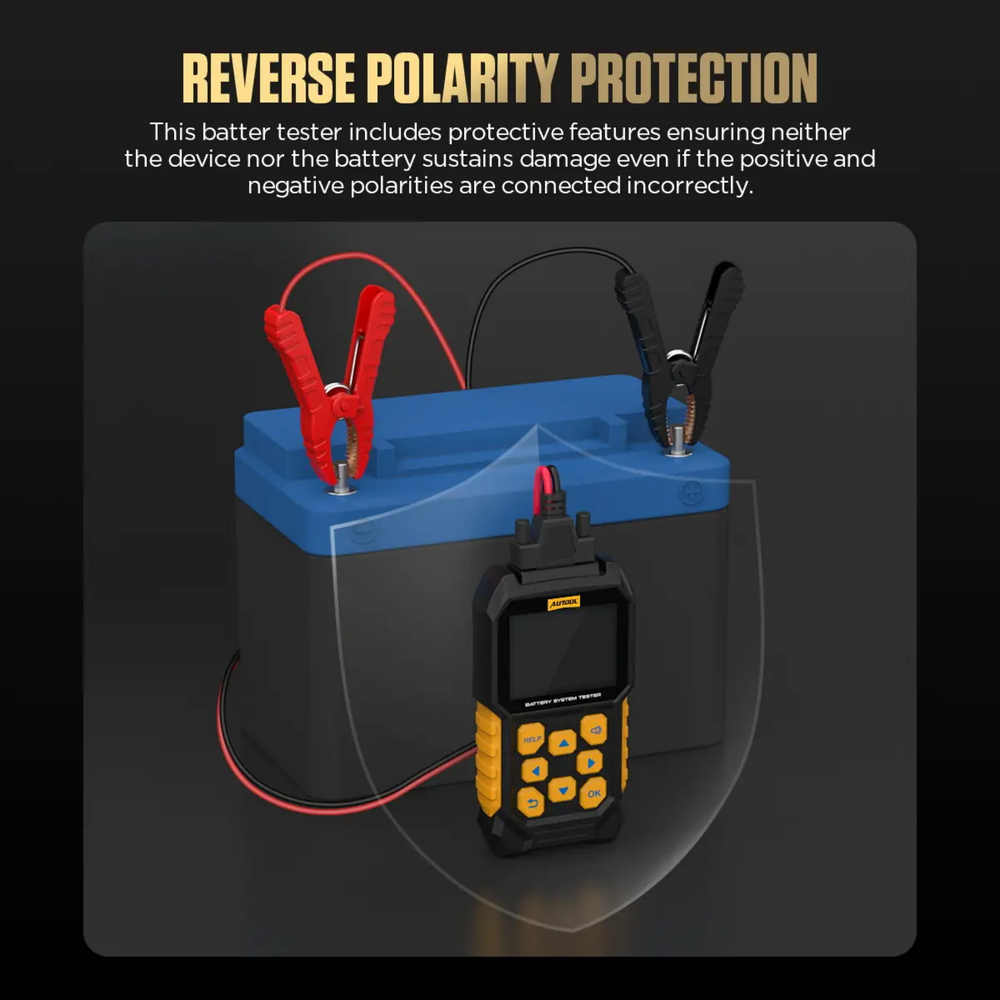

Reverse Polarity Protection – Helps protect the tester, battery and vehicle electrical system when the positive and negative battery clamps are accidentally connected incorrectly.
Data Review Function – Allows supported saved or recent test information to be reviewed directly through the tester, depending on the installed software version.

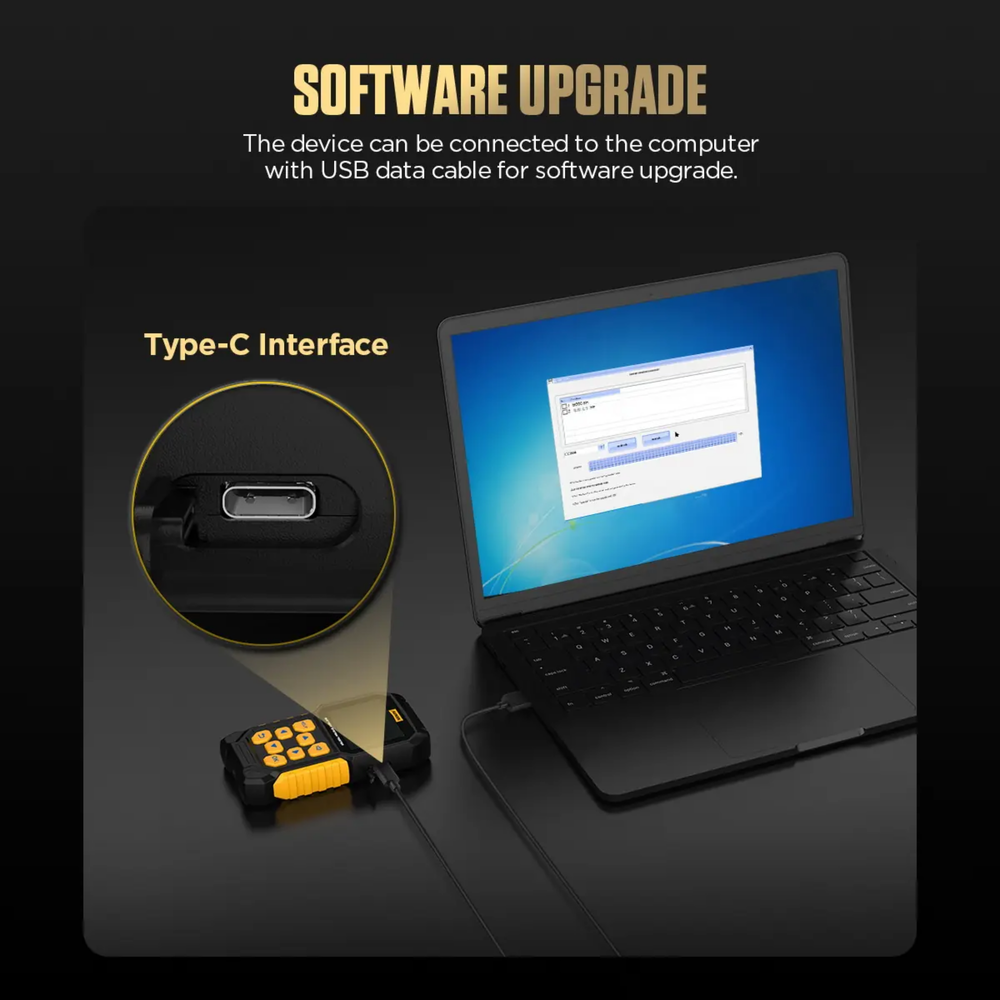

Type-C Software Upgrade – Connects to a compatible computer through the Type-C interface and USB data cable to support available software updates.

Package Includes

1 x AUTOOL BT460 battery and system tester
1 x Red and black battery clamp cable
1 x User manual
1 x BT460 retail box

AUTOOL BT460 Automotive Battery Tester

12V/24V lead-acid battery testing
Battery health and state-of-charge analysis
Cranking system performance testing
Charging system diagnostics
Electrical-load voltage testing
30–2000 CCA battery test range
8–30V voltage measurement range
SOH, SOC, resistance and voltage data
Charging ripple analysis
Regular Flooded, AGM, GEL and EFB support
Multiple battery test standards
2.8-inch colour display
14 selectable languages
Reverse polarity protection
Data review functionality
Type-C software upgrade support

AUTOOL BT460 12V 24V automotive battery tester

AUTOOL Battery Tester Comparison: BT360 vs BT460 vs BT760 vs BT880 vs BT960

AUTOOL car battery testers use conductance testing to check battery health, cranking and charging in seconds. All five test Flooded, AGM, Gel and EFB lead-acid batteries. Step up for 24V truck battery testing, a built-in printer, parasitic drain testing, or lithium battery testing on the BT960.

Compare features	AUTOOL BT360Compact 12V testerView BT360	AUTOOL BT46012V/24V car & truck testerView BT460	AUTOOL BT76012V/24V with printerView BT760	AUTOOL BT880Printer + parasitic drain testView BT880	Lithium + most features AUTOOL BT960Lithium & lead-acid, 6–80VView BT960
Best for	Simple 12V battery checks at home	Home and workshop use on cars, 4WDs and 24V trucks	Workshops needing printed customer reports	Tracking down battery drains, with printed reports	Lithium, caravan, marine and mixed-voltage batteries
Battery type & voltage
Battery rated voltage	12V	12V / 24V	12V / 24V	12V / 24V	12V / 24V + lithium packs
Voltage measurement range	8–20V	8–30V	8–30V	8–30V	6–80V
Lead-acid battery types	Flooded, AGM Flat Plate, AGM Spiral, Gel, EFB	Flooded, AGM Flat Plate, AGM Spiral, Gel, EFB	Flooded, AGM Flat Plate, AGM Spiral, Gel, EFB	Flooded, AGM Flat Plate, AGM Spiral, Gel, EFB	Flooded, AGM Flat Plate, AGM Spiral, Gel, EFB
Lithium batteries	–	–	–	–	LiFePO4, lithium polymer, ternary lithium
Test range & standards
CCA testing range	30–2000 CCA	30–2000 CCA	30–2000 CCA	30–2000 CCA	30–2000 CCA
Battery rating standards	CCA, SAE, EN, DIN, IEC, JIS, GB	CCA, EN, DIN, IEC, JIS, GB	CCA, SAE, EN, DIN, IEC, JIS, GB	CCA, CA, BCI, MCA, SAE, EN, DIN, IEC, JIS, GB	CCA, CA, BCI, MCA, SAE, EN, DIN, IEC, JIS, GB
Test functions
Battery test Health (SOH), charge (SOC) and CCA	✓	✓	✓	✓	✓
Cranking test Starter motor performance	✓	✓	✓	✓	✓
Charging test Alternator output	✓	✓	✓	✓	✓
Maximum load test System voltage with accessories on	–	✓	✓	✓	✓
Parasitic drain (leakage) test Key-off current draw	–	–	–	15mA–5A	0–10A
Temperature monitor	–	–	–	✓	✓
Reverse polarity protection	✓	✓	✓	✓	✓
Screen, printing & power
Colour screen	2.4"	2.8"	3.2"	3.2"	3.2"
Built-in thermal printer	–	–	✓	✓	✓ Custom reports with rego & date
Powered by	Vehicle battery	Vehicle battery	Vehicle battery	Vehicle battery	Vehicle battery, AAA batteries or USB-C

Maximum load test checks system voltage with the engine running and the vehicle's electrical loads switched on. It isn't a traditional heavy-load (carbon pile) battery test. Parasitic drain test measures the total key-off current; finding the circuit responsible still requires pulling fuses to isolate it.

Comparison tables are for reference only and based on AUTOOL specifications. Refer to each product page or contact us for more information.

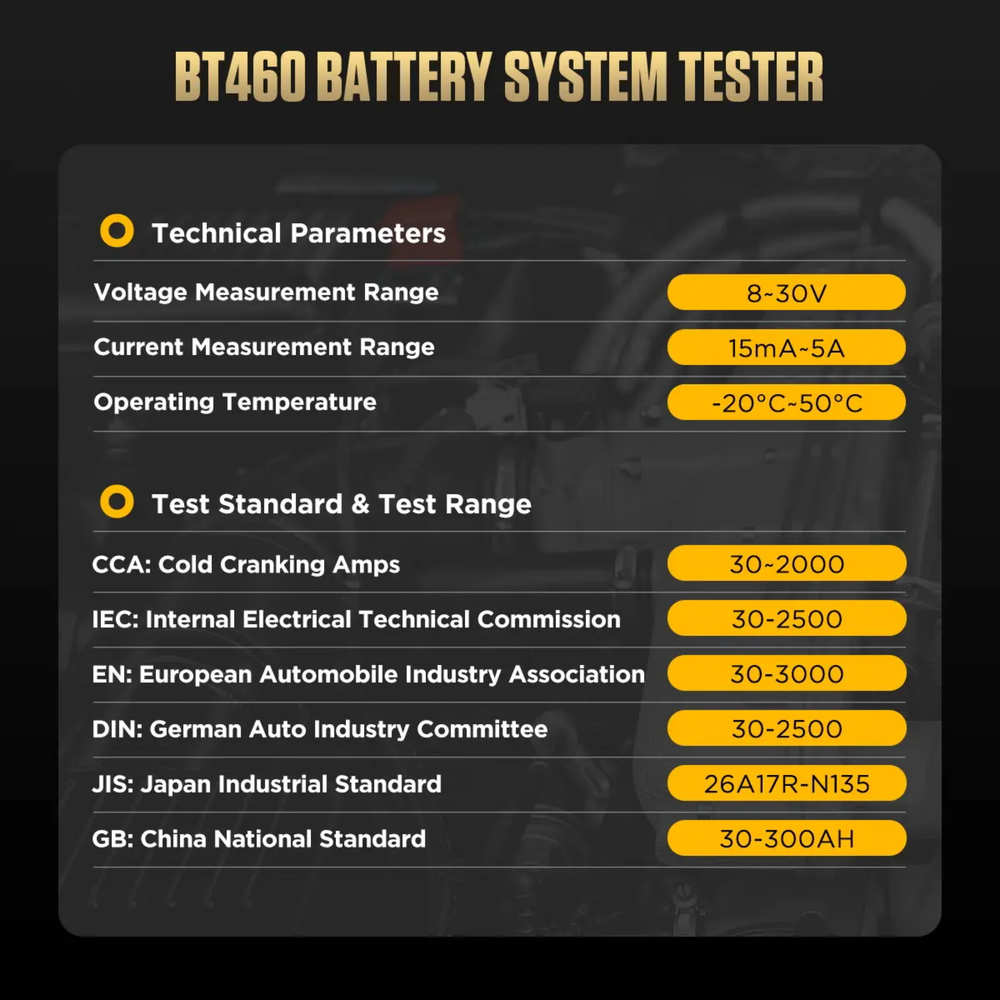

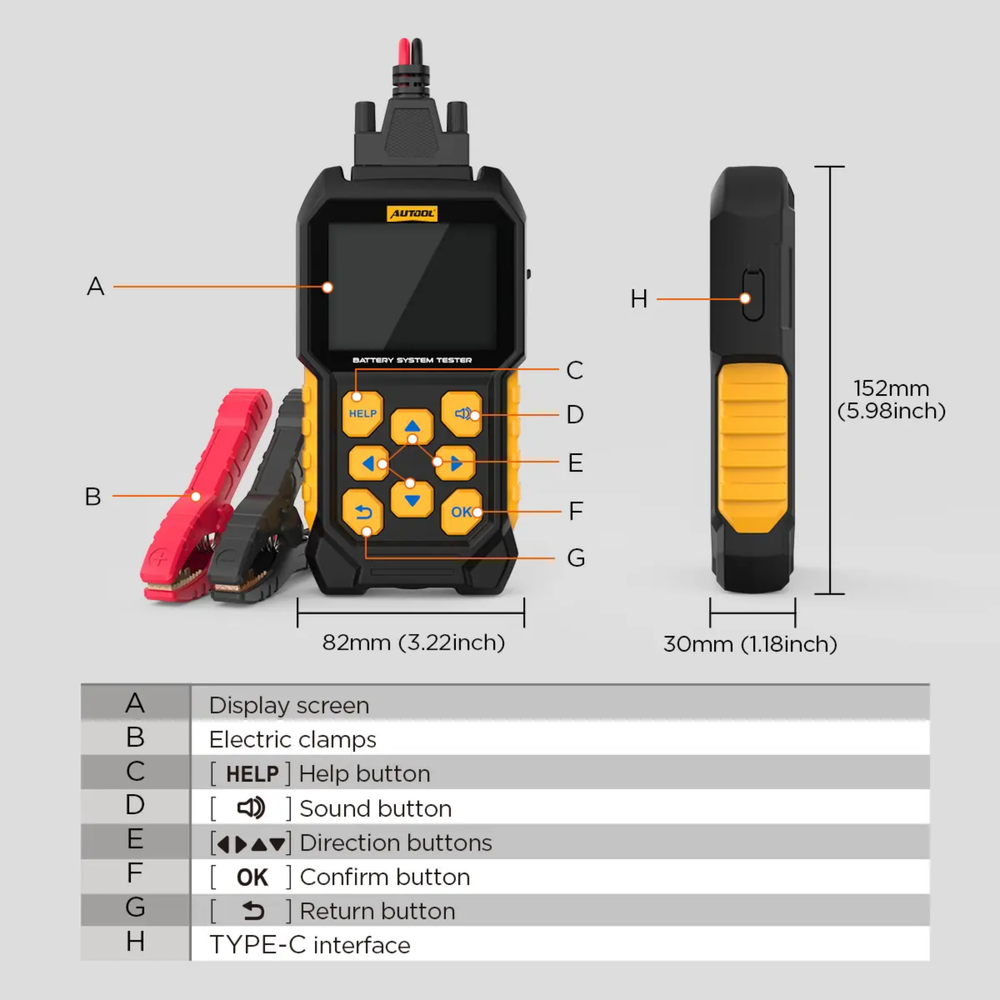

AUTOOL BT460 Battery Tester Technical Specifications

Product Name: BT460

Battery Test: Supported

Cranking Test: Supported

Charging System Test: Supported

Battery Charge: Not Supported

Reverse Polarity Protection: Supported

Maximum Load Test: Supported

Thermal Monitor: Not Supported

Leakage Current Monitoring: Not Supported

Conventional Lead-Acid Batteries: Supported

AGM Flat Plate Batteries: Supported

AGM Spiral Batteries: Supported

GEL Batteries: Supported

EFB Enhanced Flooded Batteries: Supported

Lithium Batteries: Not Supported

Test Range (CCA): 30~2000 CCA

Applicable Battery Rated Voltage: 12V/24V

Voltage Test Range: 8~30V

Data Printing: Not Supported

Data Records: Supported

Software Upgrade: Supported

Colour Screen: Supported

Screen Size: 2.8 inch

Multi-Language: 14

Power Supply: Connect to 12V battery

AUTOOL BT460 Technical Specifications
