AUTOOL BT960 Lithium & Lead-Acid Battery Tester with Printer, 6

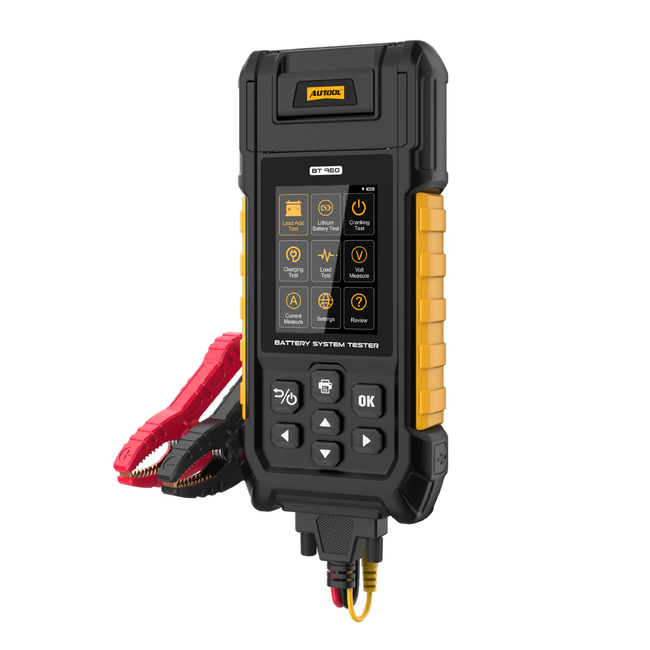

AUTOOL BT960 Lithium & Lead-Acid Automotive Battery Tester with Printer

AUTOOL BT960 30 to 2000 CCA battery tester

The AUTOOL BT960 Automotive Battery Tester provides professional battery and electrical system testing for supported lead-acid and lithium batteries. Designed for workshops and automotive technicians, it performs battery, cranking, charging, loaded-system voltage and leakage-current checks across supported 12V/24V systems. A 3.2-inch colour display, real-time temperature monitoring, data recording and built-in thermal printer provide clear testing and convenient workshop reporting.

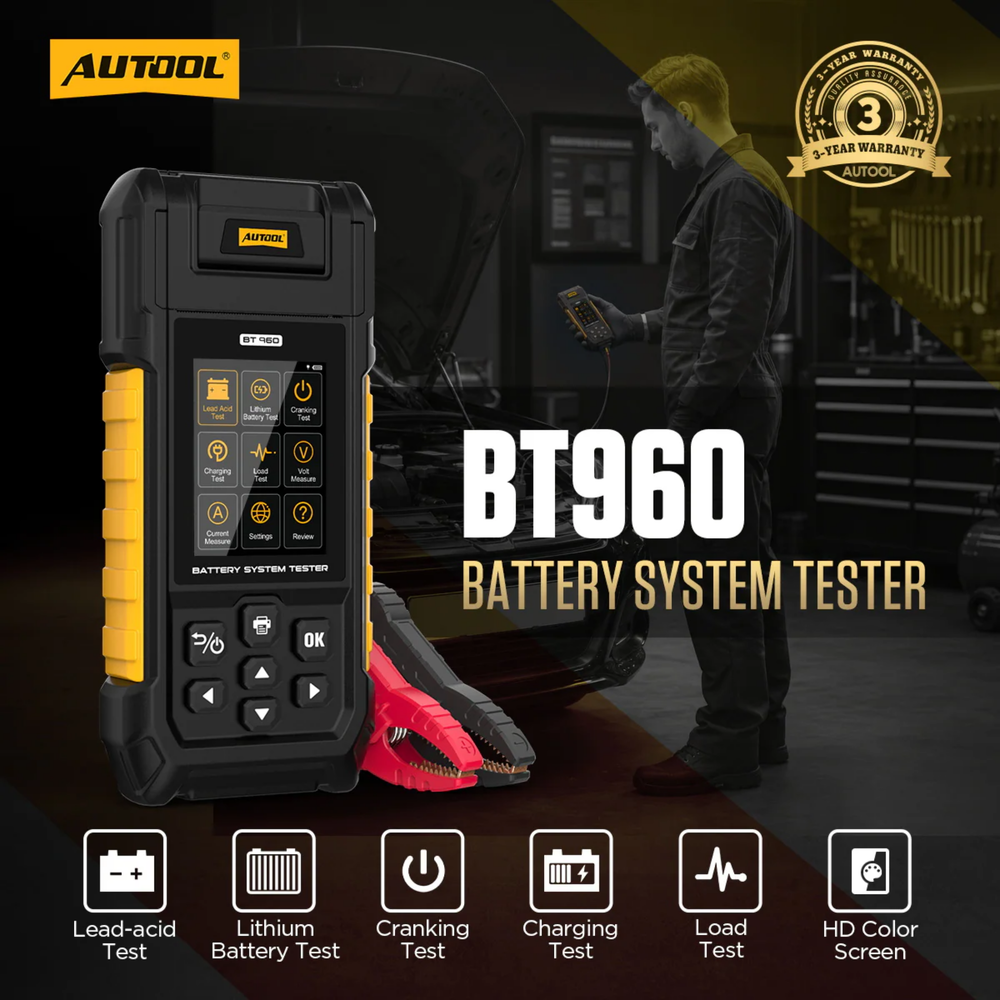

AUTOOL BT960 Lithium & Lead-Acid Battery Tester with Printer. Supporting 6V to 80V systems, it performs comprehensive battery, cranking, charging, load, voltage, and current testing with support for both lead-acid and lithium batteries.

Main Features

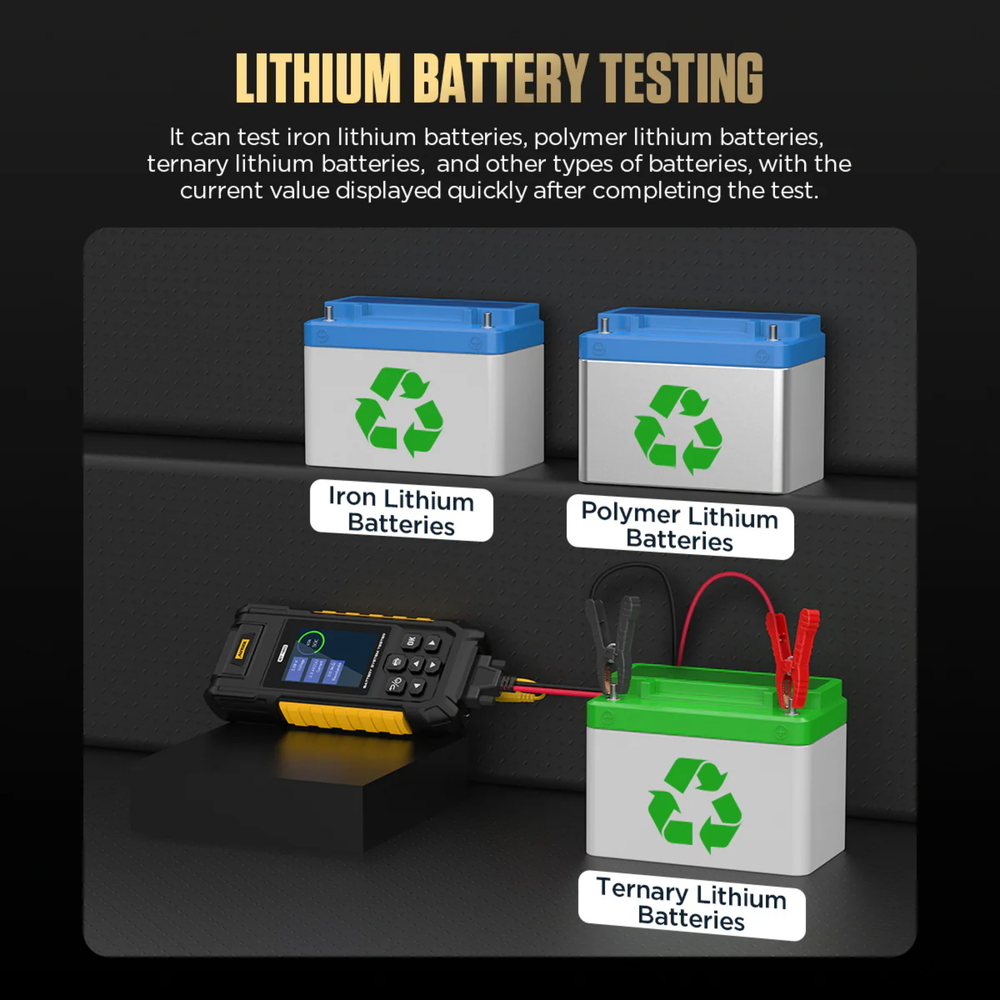

Lead-Acid & Lithium Battery Testing – Tests supported Regular Flooded, AGM Flat Plate, AGM Spiral, EFB and GEL lead-acid batteries, along with supported lithium iron phosphate, lithium polymer and ternary lithium battery types.
12V/24V Battery & System Testing – Performs battery, cranking, charging and loaded-system voltage checks across supported 12V and 24V automotive battery systems for comprehensive workshop assessment.
Battery Condition Analysis – Evaluates battery-related data including measured voltage and supported algorithm-based health, state-of-charge and performance indicators to assist with battery condition assessment.
Cranking System Test – Evaluates battery and starting-system behaviour during engine cranking, helping technicians assess starting performance and identify abnormal voltage behaviour.
Charging System Test – Checks vehicle charging-system behaviour to assist with identifying abnormal charging voltage and other potential alternator or charging-system concerns.
Loaded-System Voltage Testing – Monitors system voltage while vehicle electrical accessories are operating, allowing technicians to assess voltage behaviour under electrical load without functioning as a traditional resistive high-current load tester.

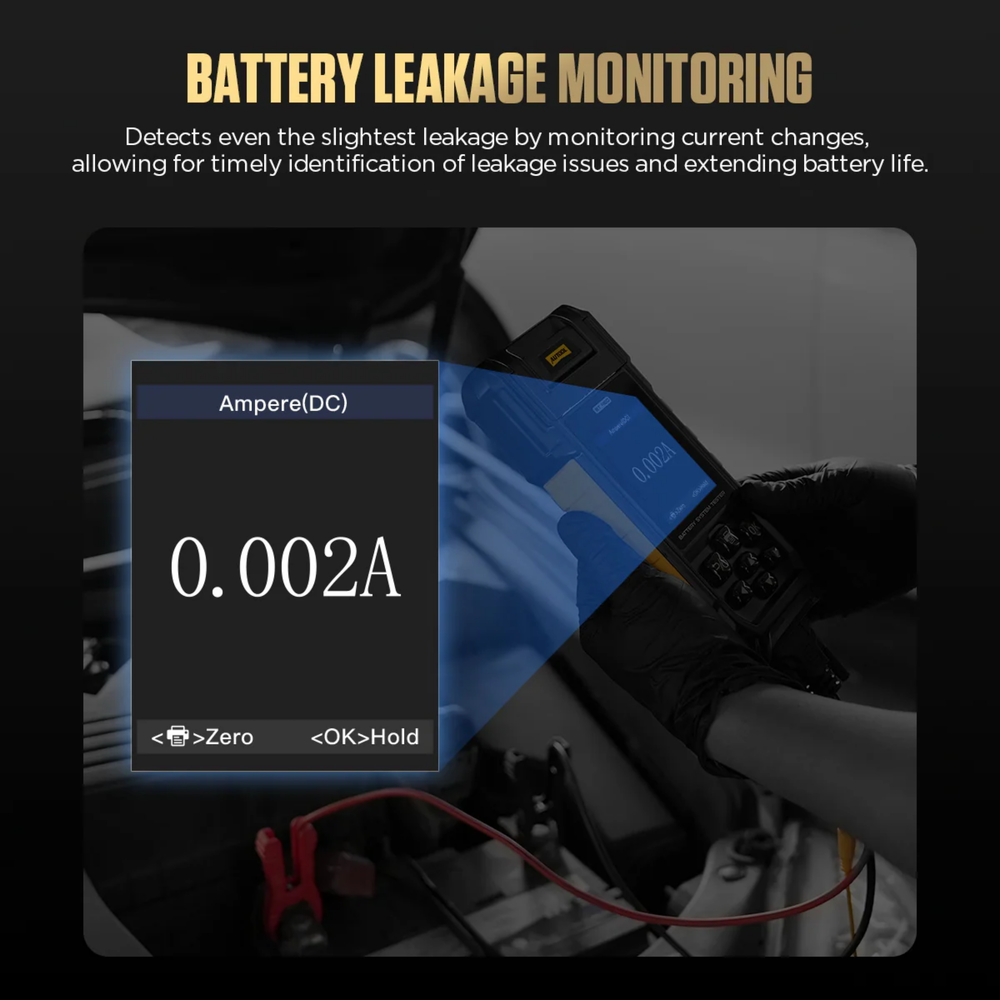

Leakage-Current Monitoring – Monitors small total-current changes through the negative-side connection to help investigate abnormal battery drain and standby-current concerns when the correct vehicle sleep procedure is followed.
0–10A Current Measurement – Supports current measurement across a 0–10A range when following the applicable test procedure, providing additional electrical-system information during diagnostic assessment.
Real-Time Temperature Monitoring – Uses an integrated temperature sensor to monitor ambient temperature, providing useful environmental context when evaluating battery test results.

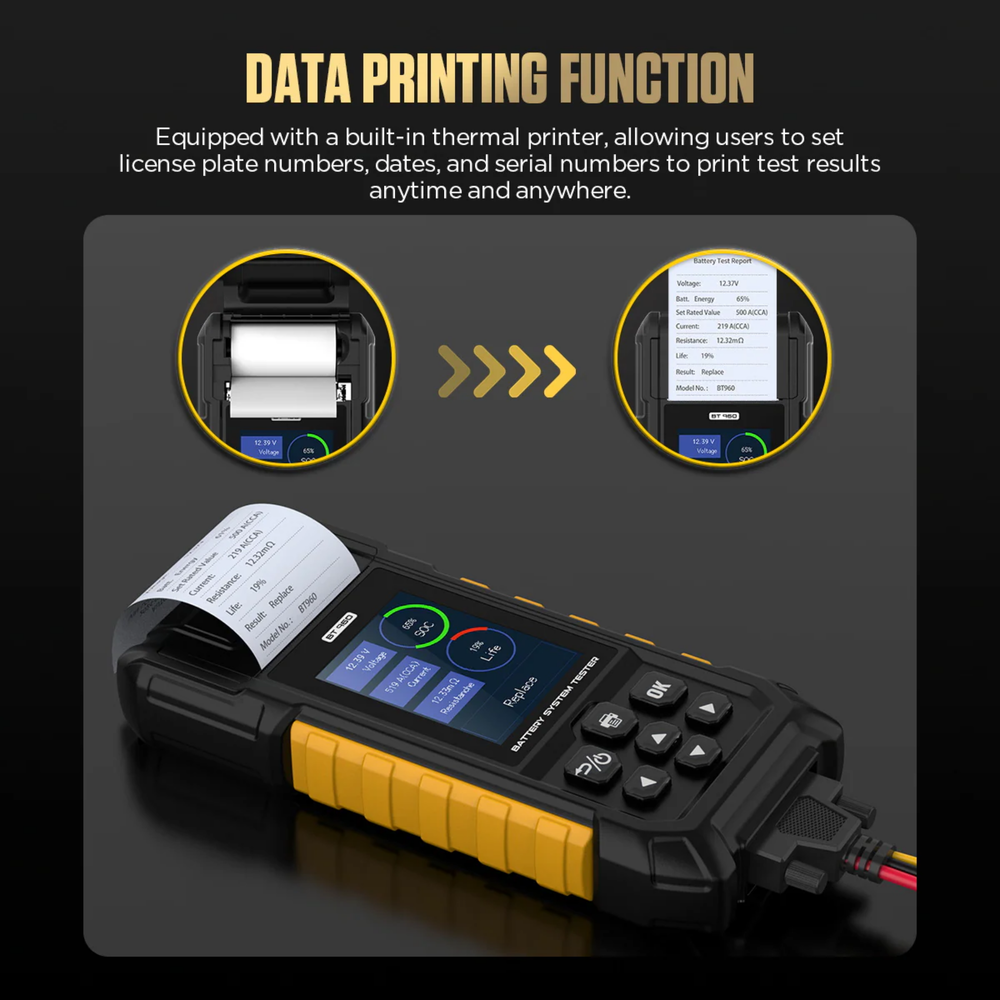

Built-In Thermal Printer – Produces on-site battery test reports using an integrated ink-free thermal printer, allowing technicians to retain or provide physical records of completed battery assessments.
Customisable Test Reports – Printed reports can include information such as licence plate numbers, dates and serial numbers, supporting professional workshop documentation and customer records.
Broad Battery Rating Standard Support – Supports common battery rating systems including BCI, SAE, CCA, IEC, EN, CA, DIN, MCA, JIS and GB for testing batteries according to their specified rating standard.

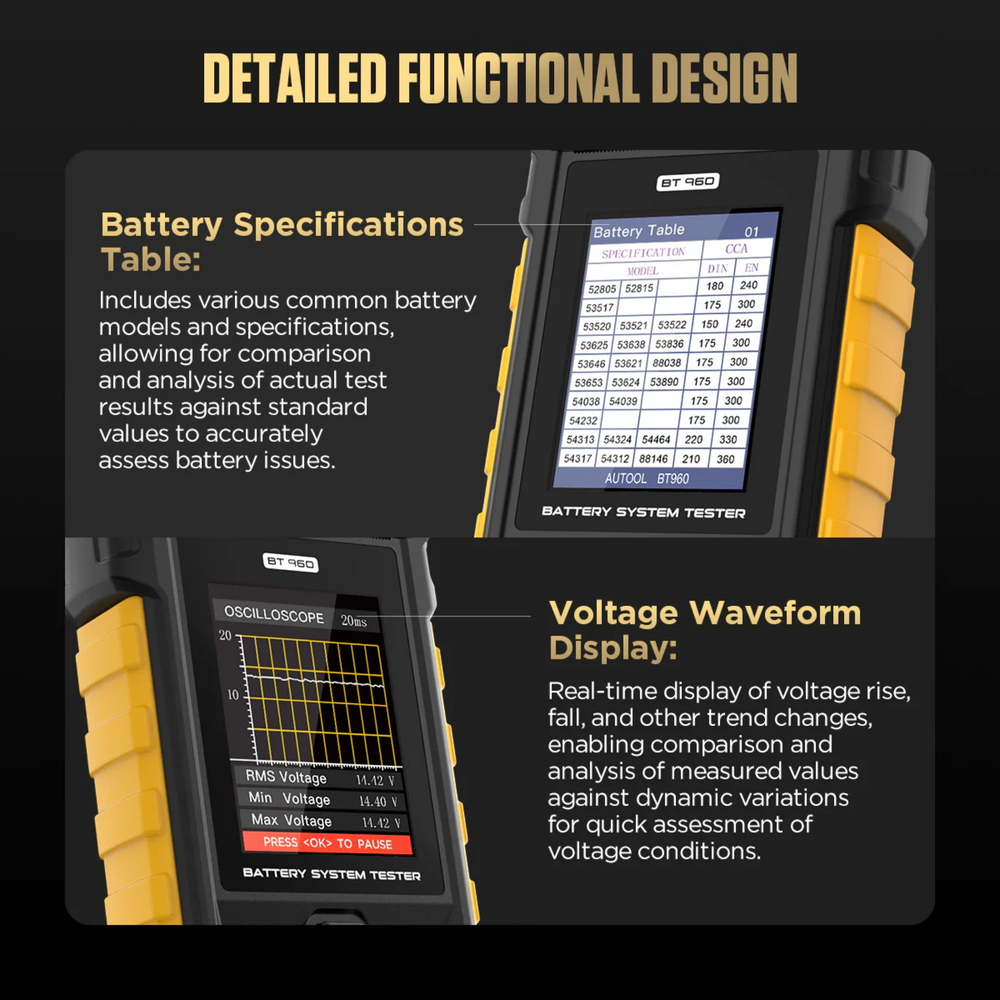

Voltage Waveform & Data Review – Provides waveform and recorded test information to support more detailed analysis of battery and vehicle electrical-system behaviour.
3.2-Inch Colour Display – Presents menus, measurements, prompts and test results on a clear 3.2-inch colour screen for convenient operation in workshop environments.

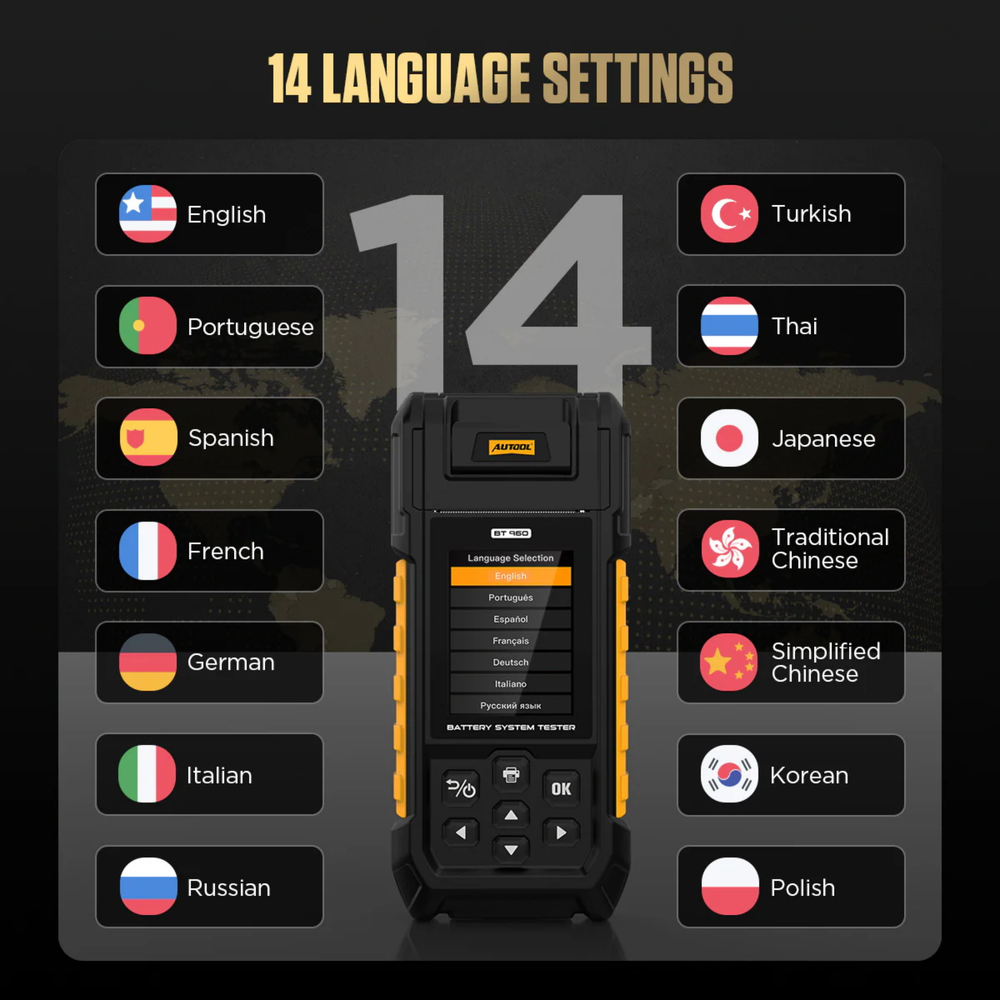

14-Language Interface – Supports 14 interface languages, including English, Portuguese, Spanish, French, German, Italian, Russian, Turkish, Thai, Japanese, Traditional Chinese, Simplified Chinese, Korean and Polish.

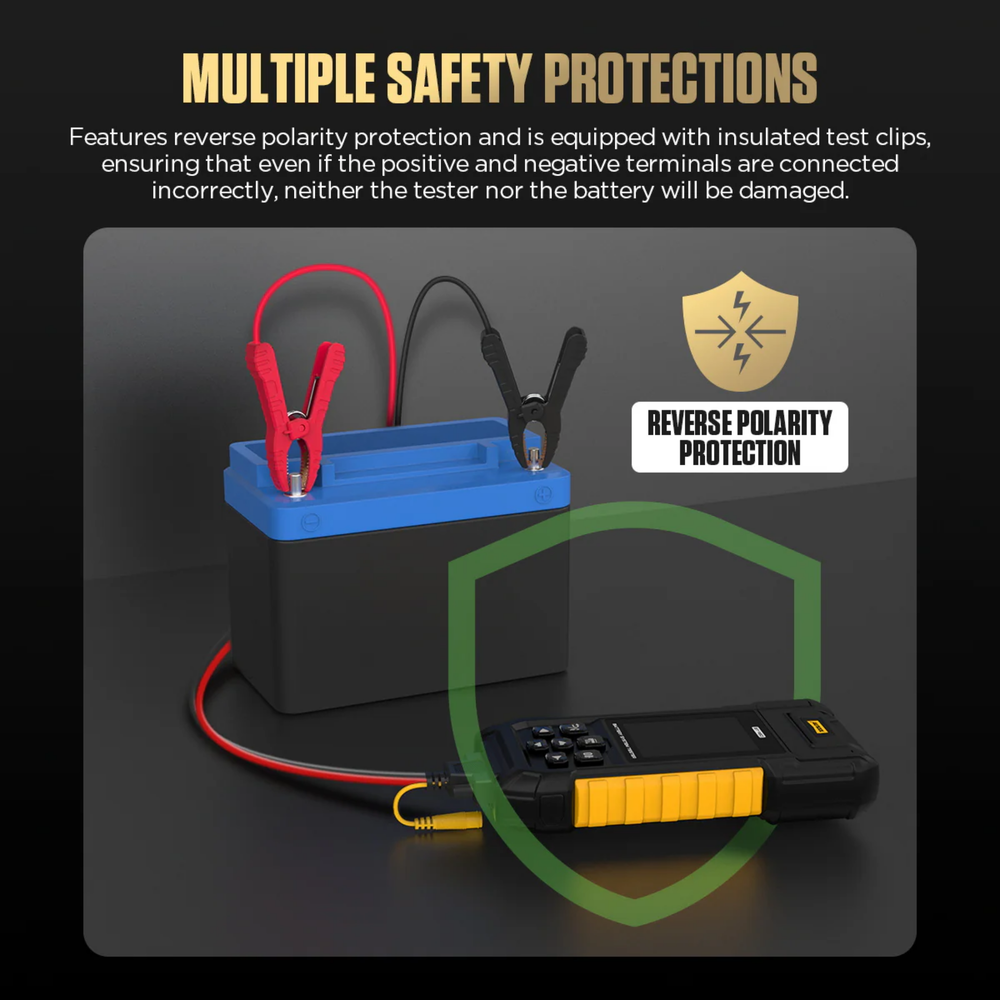

Reverse Polarity Protection – Helps protect the tester and battery against incorrect positive and negative clamp connection, while insulated test clips provide additional protection during use.
Flexible Power Options – Supports power through four AAA batteries, a Type-C 5V/1A supply or connection to a supported 12V battery, depending on the operating procedure.

Package Includes

AUTOOL BT960 battery tester analyzer
Printing Thermal paper roll for the built-in printer
Test Cable Main clamp cable for battery testing
Leakage Test Yellow leakage test cable / special clamp
Storage bag and retail box
User Manual

AUTOOL BT960 80V Automotive Battery Tester with Printer

Lead-acid and lithium battery testing
12V/24V battery and system testing
Battery health and condition analysis
Cranking system testing
Charging system testing
Loaded-system voltage testing
Leakage-current monitoring
0–10A current measurement range

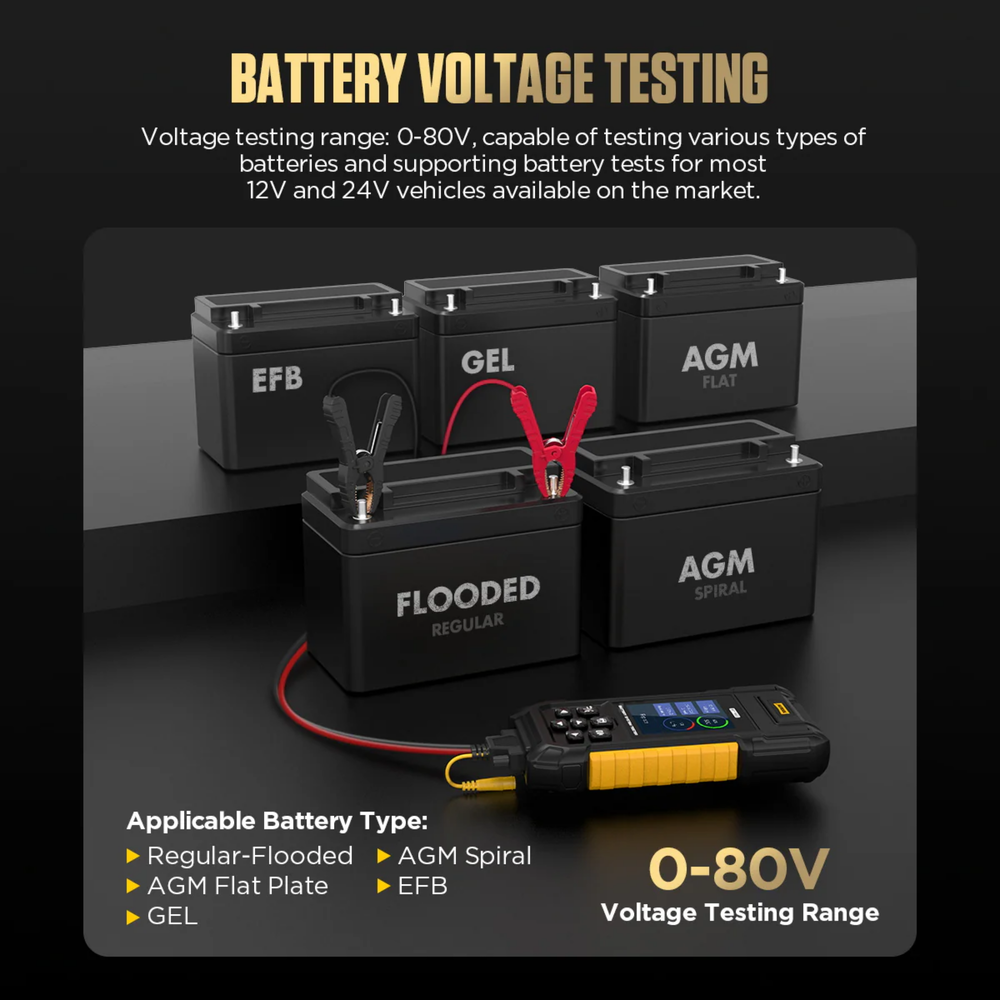

0–80V voltage measurement range
30–2000 CCA battery test range
Real-time temperature monitoring
Voltage waveform analysis
Built-in thermal report printer
Customisable printed test reports
Multiple battery rating standards
3.2-inch colour display
14-language interface
Reverse polarity protection
Data recording and review
Type-C power supply support

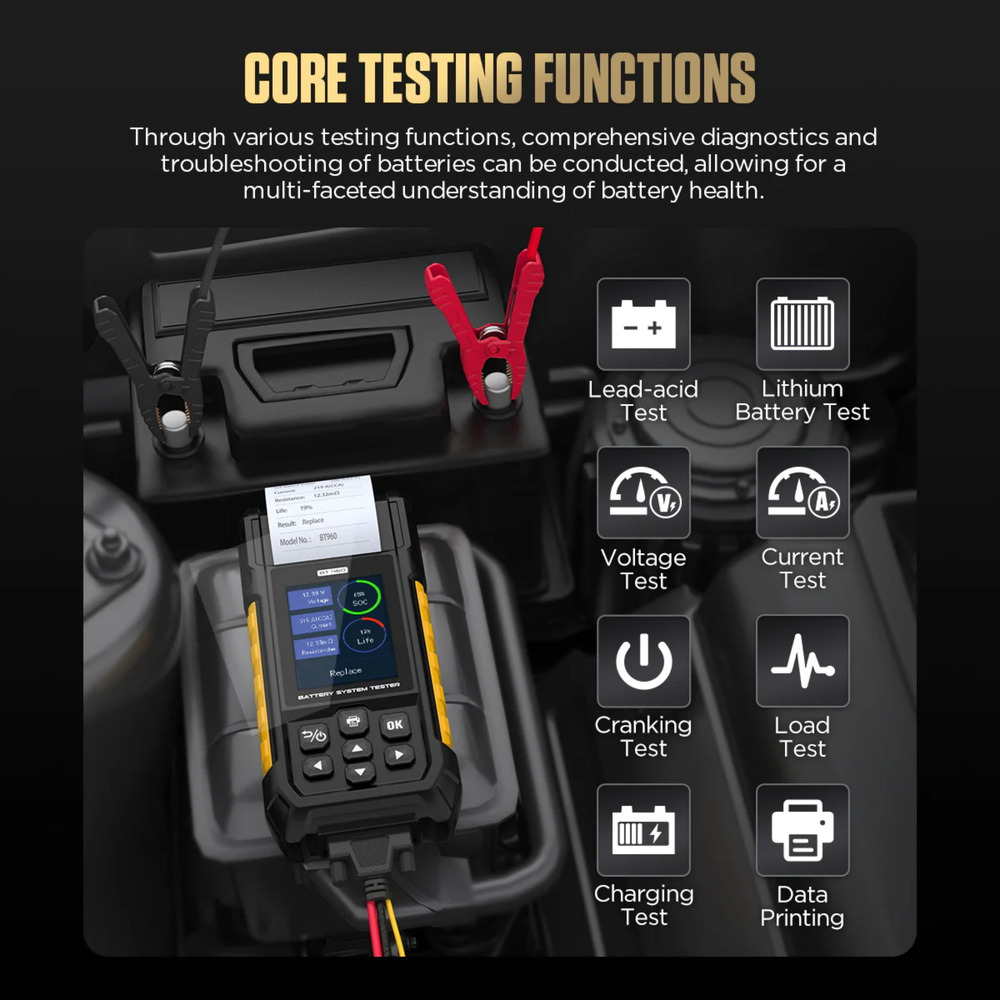

The AUTOOL BT960 Automotive Battery Tester is a professional-grade diagnostic tool designed for accurate battery and electrical system analysis across a wide range of vehicles.

AUTOOL Battery Tester Comparison: BT360 vs BT460 vs BT760 vs BT880 vs BT960

AUTOOL car battery testers use conductance testing to check battery health, cranking and charging in seconds. All five test Flooded, AGM, Gel and EFB lead-acid batteries. Step up for 24V truck battery testing, a built-in printer, parasitic drain testing, or lithium battery testing on the BT960.

Compare features	AUTOOL BT360Compact 12V testerView BT360	AUTOOL BT46012V/24V car & truck testerView BT460	AUTOOL BT76012V/24V with printerView BT760	AUTOOL BT880Printer + parasitic drain testView BT880	Lithium + most features AUTOOL BT960Lithium & lead-acid, 6–80VView BT960
Best for	Simple 12V battery checks at home	Home and workshop use on cars, 4WDs and 24V trucks	Workshops needing printed customer reports	Tracking down battery drains, with printed reports	Lithium, caravan, marine and mixed-voltage batteries
Battery type & voltage
Battery rated voltage	12V	12V / 24V	12V / 24V	12V / 24V	12V / 24V + lithium packs
Voltage measurement range	8–20V	8–30V	8–30V	8–30V	6–80V
Lead-acid battery types	Flooded, AGM Flat Plate, AGM Spiral, Gel, EFB	Flooded, AGM Flat Plate, AGM Spiral, Gel, EFB	Flooded, AGM Flat Plate, AGM Spiral, Gel, EFB	Flooded, AGM Flat Plate, AGM Spiral, Gel, EFB	Flooded, AGM Flat Plate, AGM Spiral, Gel, EFB
Lithium batteries	–	–	–	–	LiFePO4, lithium polymer, ternary lithium
Test range & standards
CCA testing range	30–2000 CCA	30–2000 CCA	30–2000 CCA	30–2000 CCA	30–2000 CCA
Battery rating standards	CCA, SAE, EN, DIN, IEC, JIS, GB	CCA, EN, DIN, IEC, JIS, GB	CCA, SAE, EN, DIN, IEC, JIS, GB	CCA, CA, BCI, MCA, SAE, EN, DIN, IEC, JIS, GB	CCA, CA, BCI, MCA, SAE, EN, DIN, IEC, JIS, GB
Test functions
Battery test Health (SOH), charge (SOC) and CCA	✓	✓	✓	✓	✓
Cranking test Starter motor performance	✓	✓	✓	✓	✓
Charging test Alternator output	✓	✓	✓	✓	✓
Maximum load test System voltage with accessories on	–	✓	✓	✓	✓
Parasitic drain (leakage) test Key-off current draw	–	–	–	15mA–5A	0–10A
Temperature monitor	–	–	–	✓	✓
Reverse polarity protection	✓	✓	✓	✓	✓
Screen, printing & power
Colour screen	2.4"	2.8"	3.2"	3.2"	3.2"
Built-in thermal printer	–	–	✓	✓	✓ Custom reports with rego & date
Powered by	Vehicle battery	Vehicle battery	Vehicle battery	Vehicle battery	Vehicle battery, AAA batteries or USB-C

Maximum load test checks system voltage with the engine running and the vehicle's electrical loads switched on. It isn't a traditional heavy-load (carbon pile) battery test. Parasitic drain test measures the total key-off current; finding the circuit responsible still requires pulling fuses to isolate it.

Comparison tables are for reference only and based on AUTOOL specifications. Refer to each product page or contact us for more information.

AUTOOL BT960 Automotive Battery Tester

Product Name: BT960

Battery Test: Supported

Cranking Test: Supported

Charging System Test: Supported

Battery Charge: Not Supported

Reverse Polarity Protection: Supported

Maximum Load Test: Supported

Thermal Monitor: Supported

Leakage Current Monitoring: Supported

Conventional Lead-Acid Batteries: Supported

AGM Flat Plate Batteries: Supported

AGM Spiral Batteries: Supported

GEL Batteries: Supported

EFB Enhanced Flooded Batteries: Supported

Lithium Batteries: Supported

Test Range (CCA): 30~2000 CCA

Applicable Battery Rated Voltage: 12V/24V

Voltage Test Range: 0~80V

Data Printing: Supported

Data Records: Supported

Software Upgrade: Supported

Colour Screen: Supported

Screen Size: 3.2 inch

Multi-Language: 14

Power Supply: Dry cell battery, Type-C power supply or connect to 12V battery

AUTOOL BT960 battery tester with thermal printer
