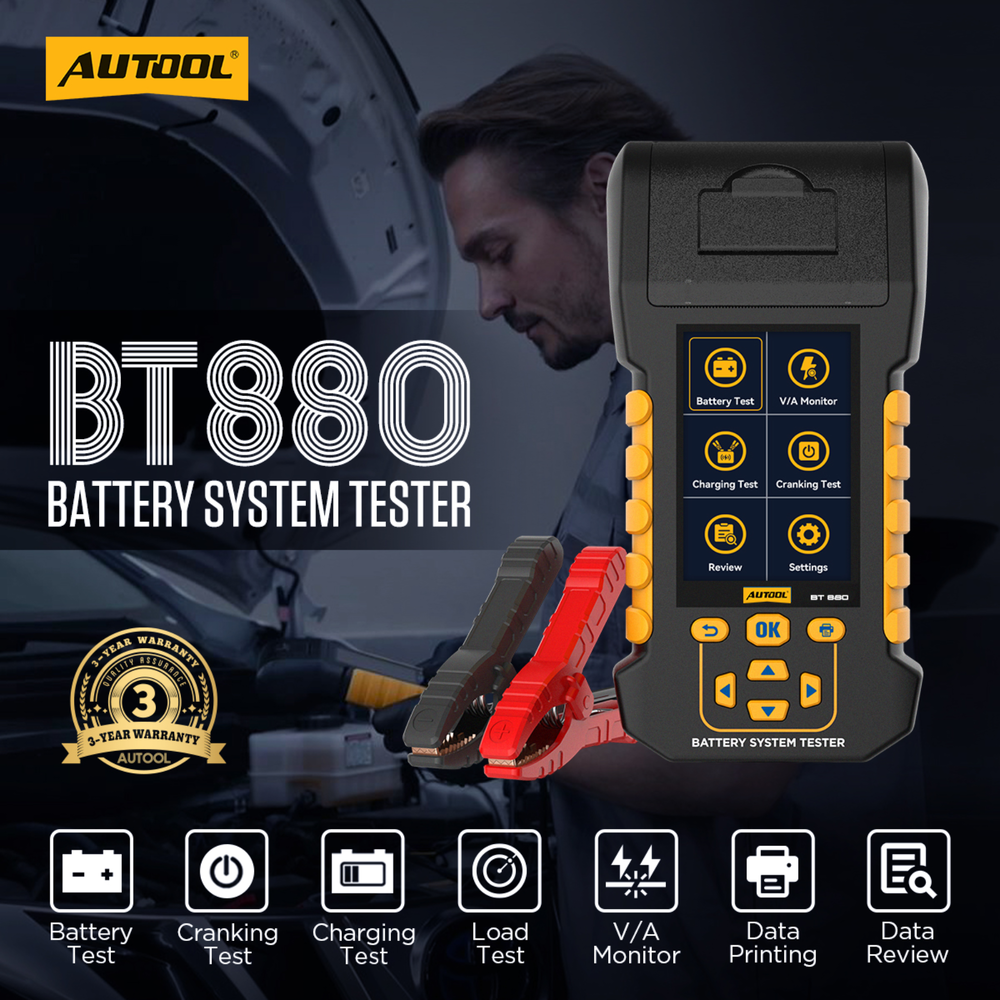

AUTOOL BT880 12V/24V Battery Tester + Printer & Parasitic Drain Test

AUTOOL BT880 Professional Automotive Battery Tester

Advanced Battery & Charging Analysis

The AUTOOL BT880 Automotive Battery Tester is a professional-grade 12V/24V automotive battery diagnostic tool engineered for accurate battery, cranking, charging, load, and leakage testing across a wide range of vehicles. Designed for workshops and automotive technicians, it delivers precise readings for CCA, voltage, resistance, current, and battery health status. Featuring a built-in thermal printer, real-time temperature monitoring, waveform display, and multi-battery compatibility, the BT880 provides efficient and reliable battery system diagnostics for modern automotive applications.

Main Features

Comprehensive Battery Diagnostics – Performs battery health analysis, cranking tests, charging system tests, load testing, leakage detection, and voltage monitoring for complete electrical system evaluation.

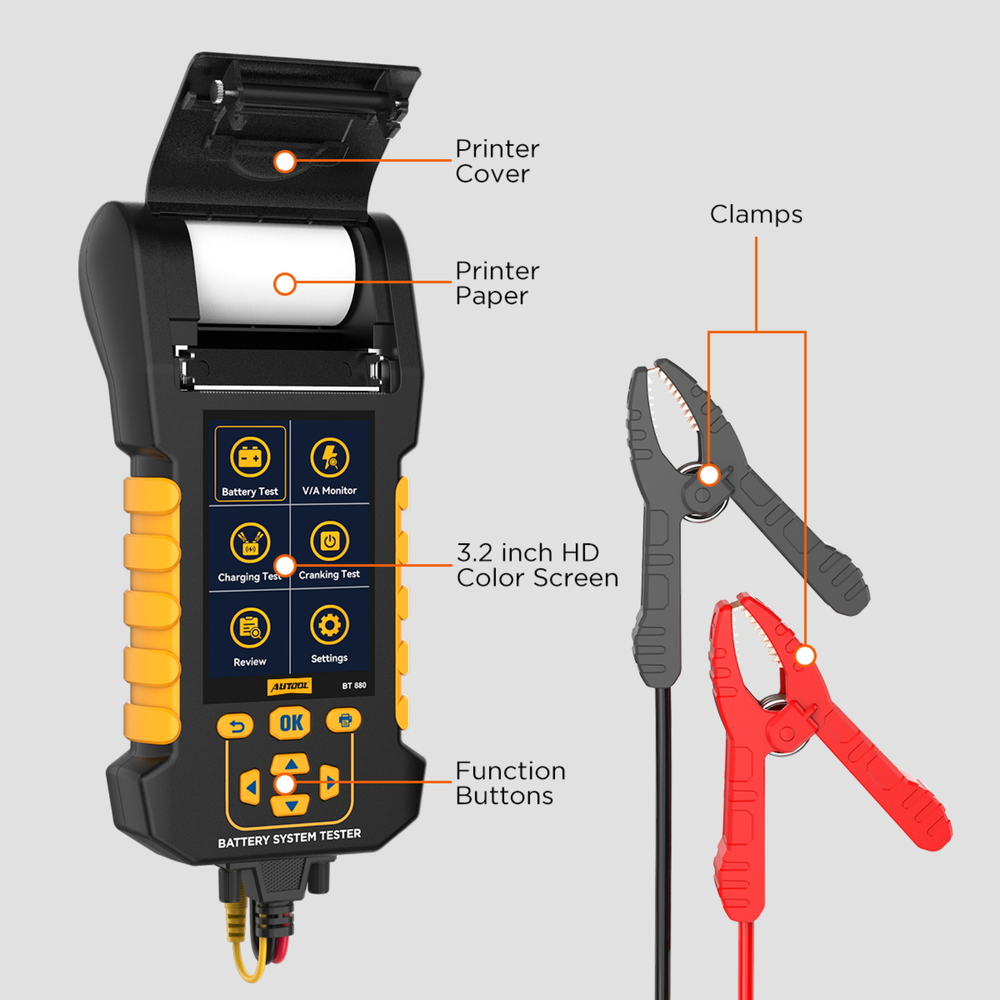

Built-In Thermal Printer – Features an integrated thermal printer that allows technicians to instantly print test reports for workshop records, customer documentation, and service verification.
Battery Leakage Detection – Accurately monitors battery output current changes to identify leakage faults, helping reduce unnecessary power drain and improve battery lifespan.
Real-Time Temperature Monitoring – Continuously detects ambient battery temperature to deliver more precise and stable battery testing results under varying workshop conditions.
Wide Battery Compatibility – Supports standard flooded, AGM flat plate, AGM spiral, GEL, and EFB batteries used across passenger vehicles, motorcycles, and commercial vehicles.
Advanced Safety Protection – Equipped with reverse polarity protection, insulated clamps, and anti-leakage safeguards to protect both the tester and vehicle electrical systems during operation.

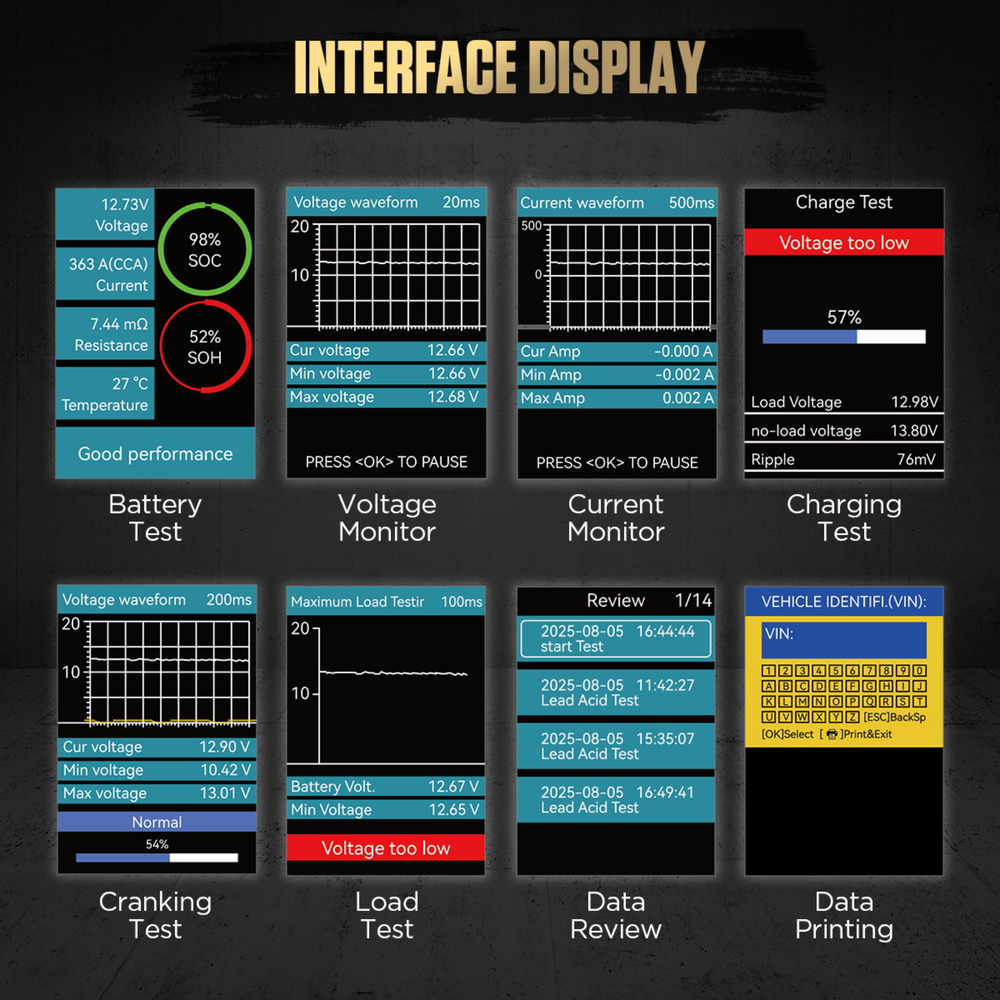

HD Colour Display with Waveform Graphing – The 3.2-inch HD screen provides clear viewing of voltage data, live waveform analysis, and battery information for improved diagnostic accuracy.
Extensive Battery Standard Support – Compatible with multiple battery rating systems including CCA, JIS, GB, SAE, MCA, DIN, IEC, EN, and BCI standards.

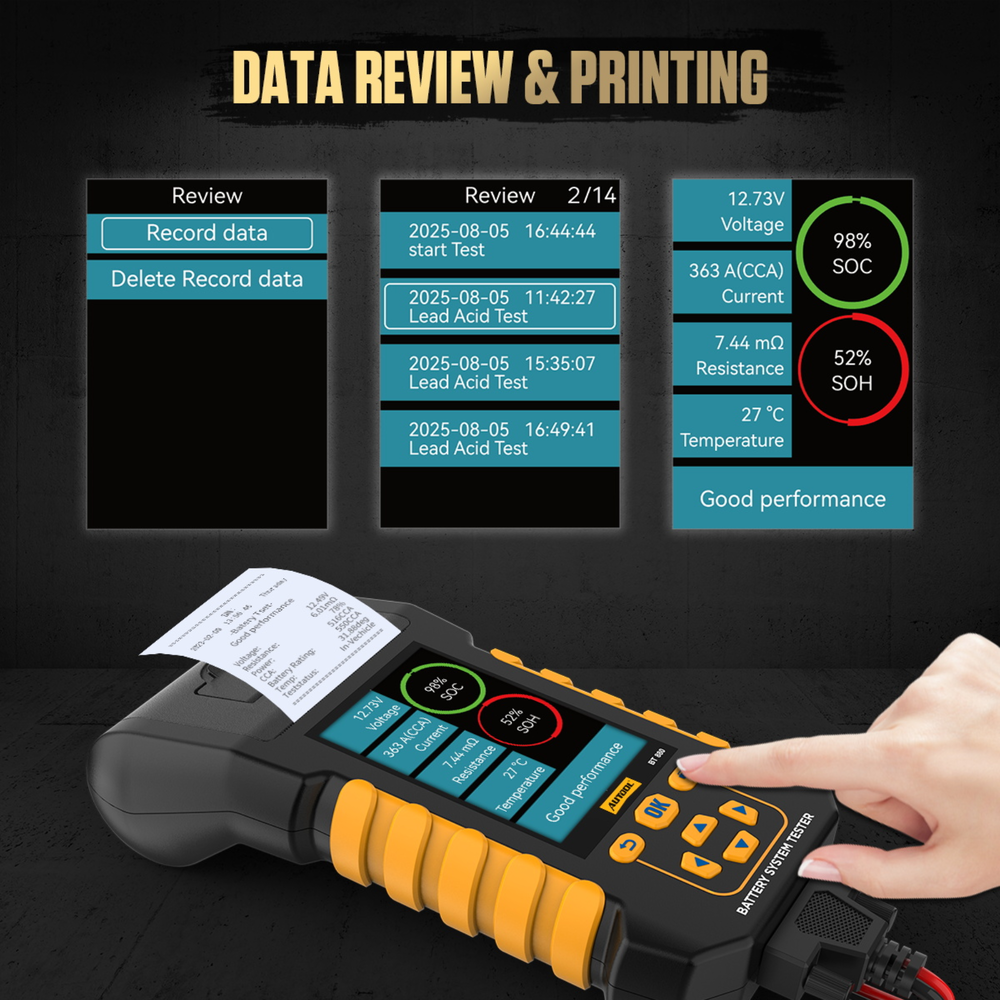

Historical Voltage Recording – Allows users to record, review, and replay battery voltage history for improved fault tracking and long-term battery performance analysis.
Professional Workshop Functionality – Designed for automotive workshops and technicians requiring accurate battery diagnostics, electrical system analysis, and printable reporting capabilities.

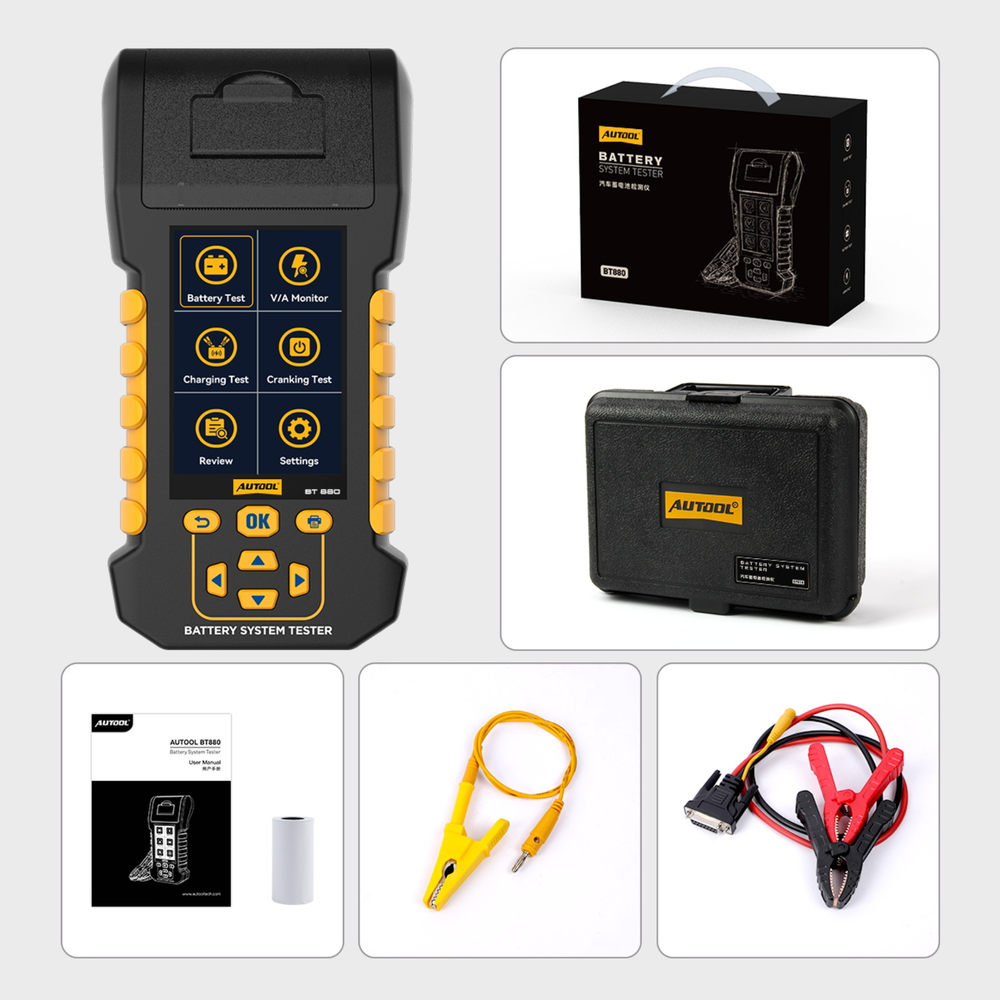

Package Includes

AUTOOL BT880 Automotive Battery Tester
Battery test clamps
USB upgrade cable
Built-in thermal printer
Thermal printing paper roll
User manual

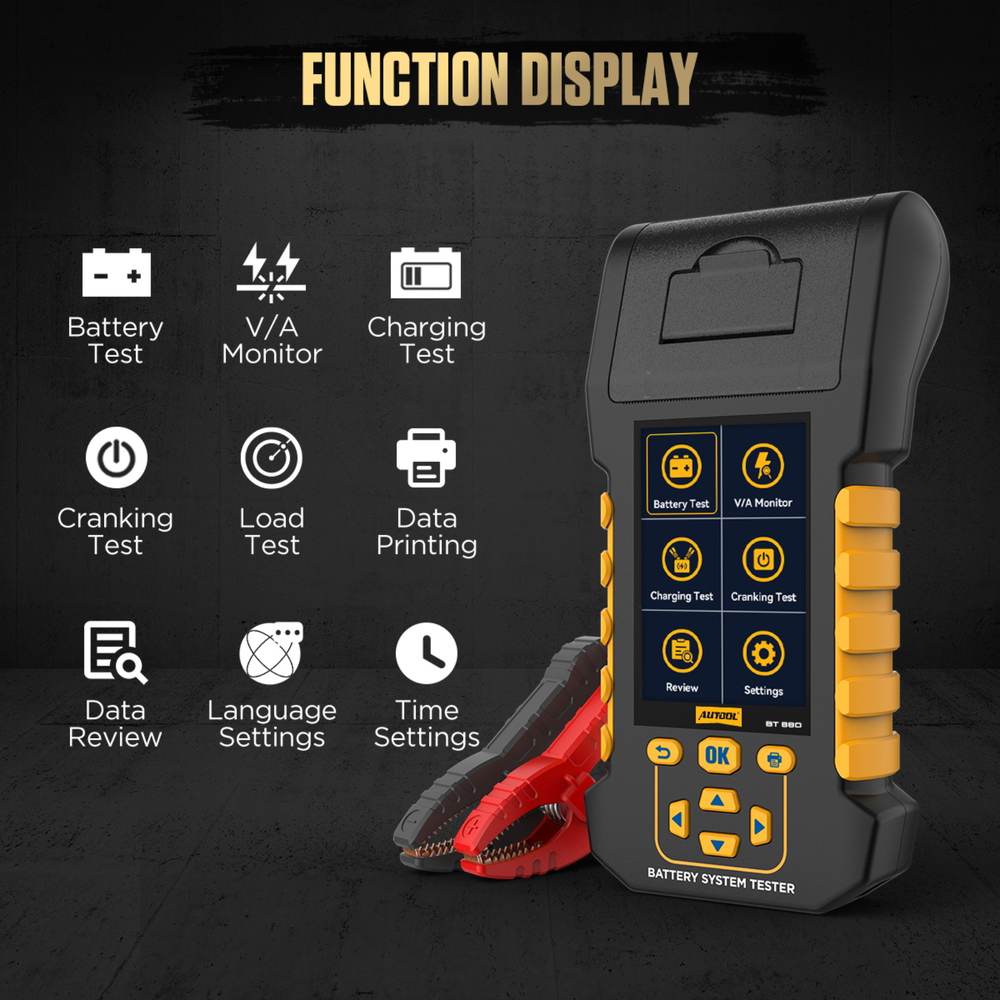

AUTOOL BT880 Automotive Battery Tester

12V & 24V battery system testing

Battery, cranking, charging & load tests

Leakage current detection function

Built-in thermal printer

Real-time voltage waveform display

Temperature monitoring system

Reverse polarity protection

Supports AGM, GEL, EFB & flooded batteries

3.2-inch HD colour display

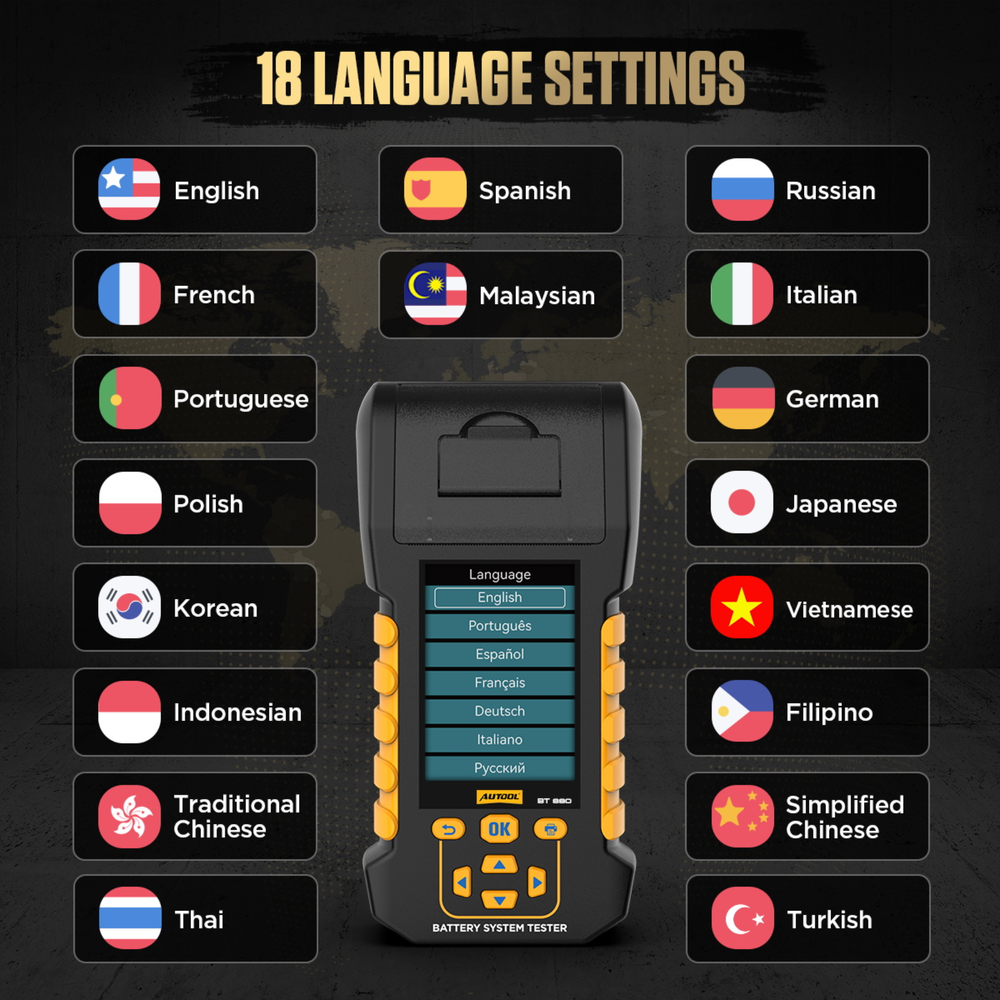

Multi-language operation

Suitable for cars, trucks & motorcycles

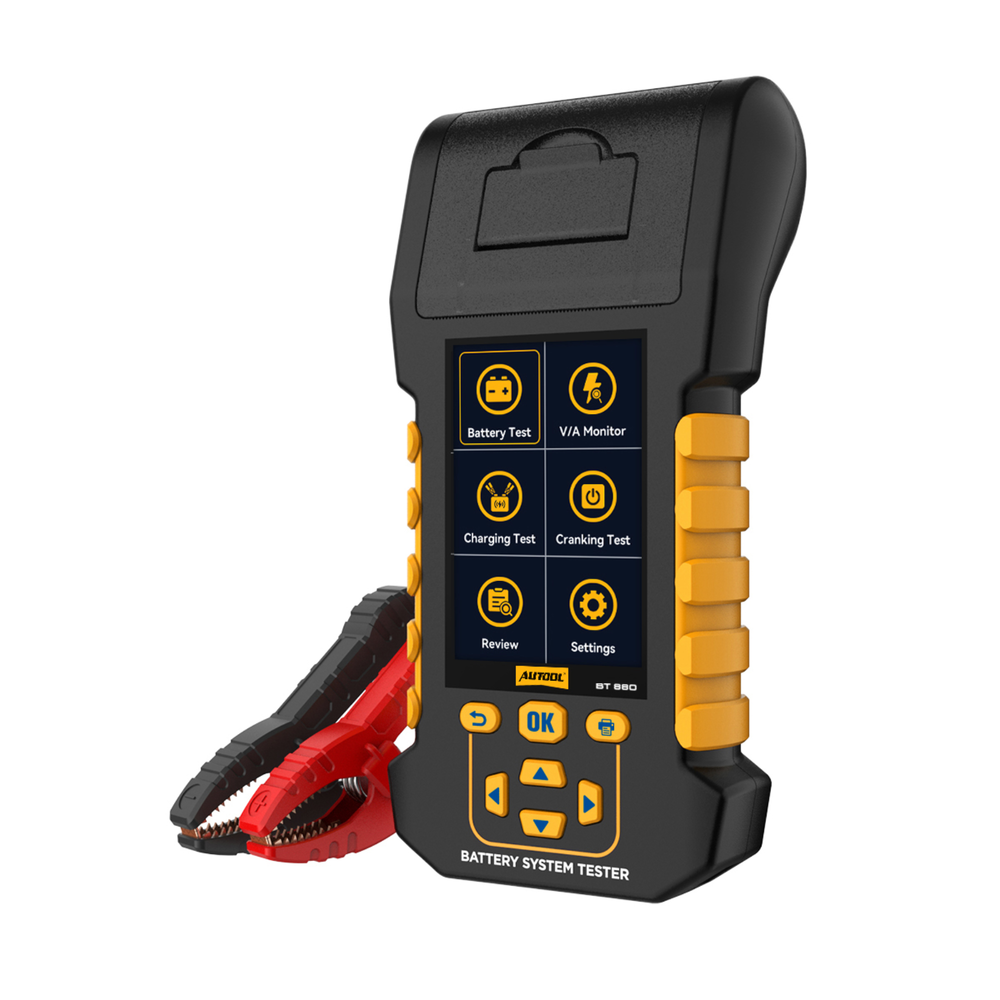

The AUTOOL BT880 Automotive Battery Tester is a professional-grade 12V/24V battery diagnostic tool engineered for accurate battery, cranking, charging, load, and leakage testing across a wide range of vehicles.

AUTOOL Battery Tester Comparison: BT360 vs BT460 vs BT760 vs BT880 vs BT960

AUTOOL car battery testers use conductance testing to check battery health, cranking and charging in seconds. All five test Flooded, AGM, Gel and EFB lead-acid batteries. Step up for 24V truck battery testing, a built-in printer, parasitic drain testing, or lithium battery testing on the BT960.

Compare features	AUTOOL BT360Compact 12V testerView BT360	AUTOOL BT46012V/24V car & truck testerView BT460	AUTOOL BT76012V/24V with printerView BT760	AUTOOL BT880Printer + parasitic drain testView BT880	Lithium + most features AUTOOL BT960Lithium & lead-acid, 6–80VView BT960
Best for	Simple 12V battery checks at home	Home and workshop use on cars, 4WDs and 24V trucks	Workshops needing printed customer reports	Tracking down battery drains, with printed reports	Lithium, caravan, marine and mixed-voltage batteries
Battery type & voltage
Battery rated voltage	12V	12V / 24V	12V / 24V	12V / 24V	12V / 24V + lithium packs
Voltage measurement range	8–20V	8–30V	8–30V	8–30V	6–80V
Lead-acid battery types	Flooded, AGM Flat Plate, AGM Spiral, Gel, EFB	Flooded, AGM Flat Plate, AGM Spiral, Gel, EFB	Flooded, AGM Flat Plate, AGM Spiral, Gel, EFB	Flooded, AGM Flat Plate, AGM Spiral, Gel, EFB	Flooded, AGM Flat Plate, AGM Spiral, Gel, EFB
Lithium batteries	–	–	–	–	LiFePO4, lithium polymer, ternary lithium
Test range & standards
CCA testing range	30–2000 CCA	30–2000 CCA	30–2000 CCA	30–2000 CCA	30–2000 CCA
Battery rating standards	CCA, SAE, EN, DIN, IEC, JIS, GB	CCA, EN, DIN, IEC, JIS, GB	CCA, SAE, EN, DIN, IEC, JIS, GB	CCA, CA, BCI, MCA, SAE, EN, DIN, IEC, JIS, GB	CCA, CA, BCI, MCA, SAE, EN, DIN, IEC, JIS, GB
Test functions
Battery test Health (SOH), charge (SOC) and CCA	✓	✓	✓	✓	✓
Cranking test Starter motor performance	✓	✓	✓	✓	✓
Charging test Alternator output	✓	✓	✓	✓	✓
Maximum load test System voltage with accessories on	–	✓	✓	✓	✓
Parasitic drain (leakage) test Key-off current draw	–	–	–	15mA–5A	0–10A
Temperature monitor	–	–	–	✓	✓
Reverse polarity protection	✓	✓	✓	✓	✓
Screen, printing & power
Colour screen	2.4"	2.8"	3.2"	3.2"	3.2"
Built-in thermal printer	–	–	✓	✓	✓ Custom reports with rego & date
Powered by	Vehicle battery	Vehicle battery	Vehicle battery	Vehicle battery	Vehicle battery, AAA batteries or USB-C

Maximum load test checks system voltage with the engine running and the vehicle's electrical loads switched on. It isn't a traditional heavy-load (carbon pile) battery test. Parasitic drain test measures the total key-off current; finding the circuit responsible still requires pulling fuses to isolate it.

Comparison tables are for reference only and based on AUTOOL specifications. Refer to each product page or contact us for more information.

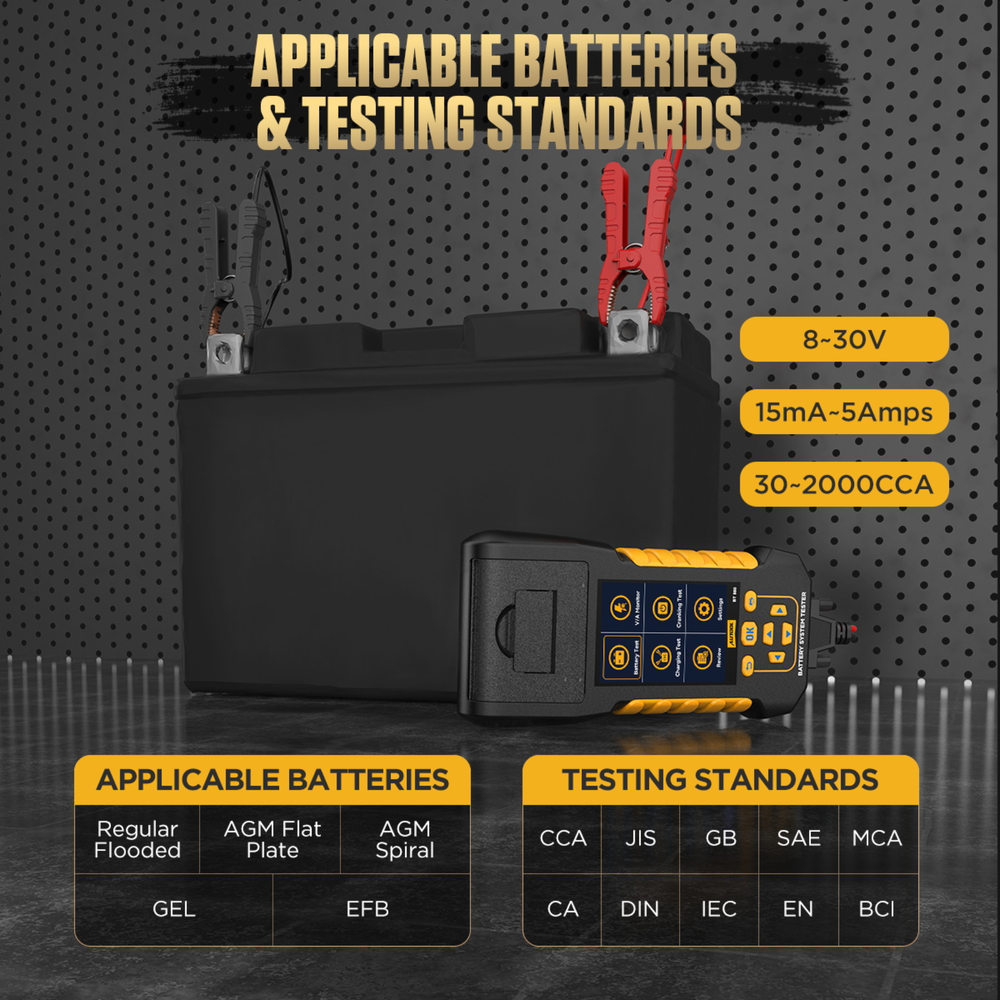

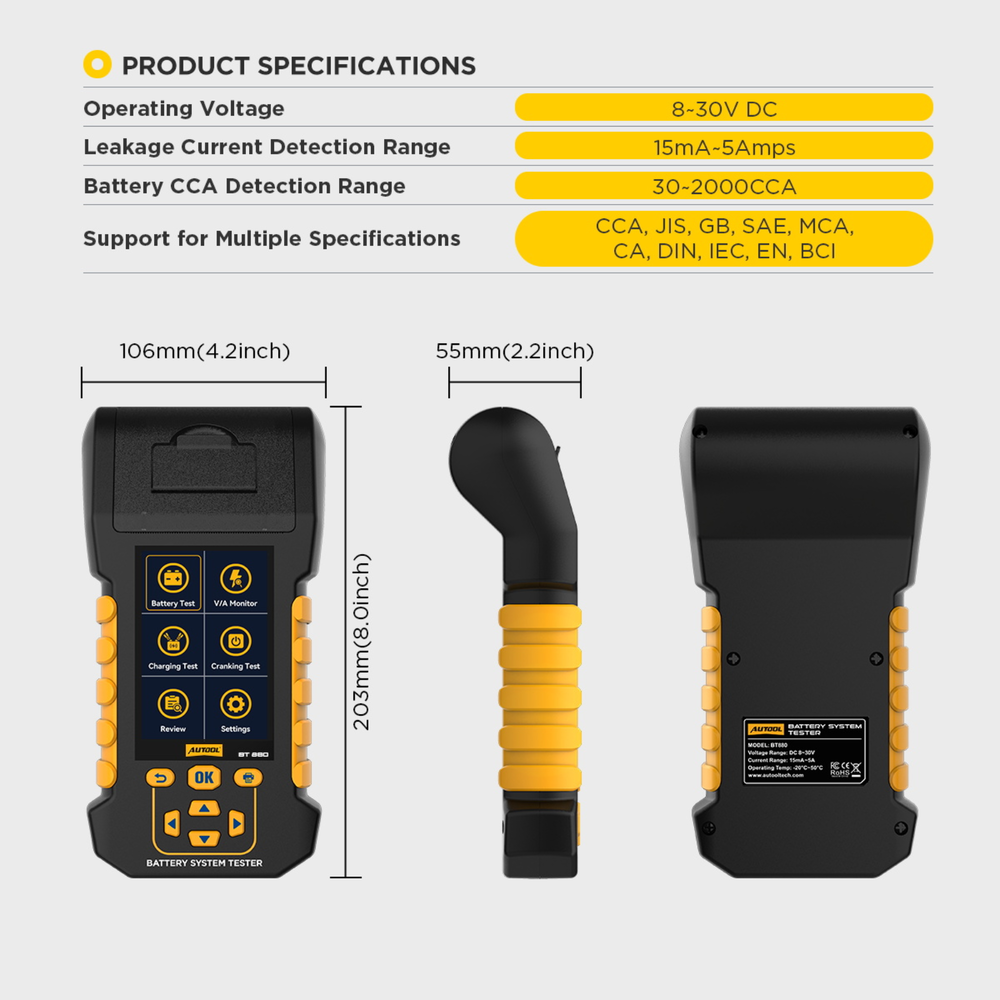

AUTOOL BT880 Automotive Battery Tester

Operating Voltage: 8-30V DC

Leakage Current Detection Range: 15mA-5Amps

Battery CCA Detection Range: 20-2000CCA

Support for Multiple Specifications: CCA, JIS, GB, SAE, MCA, CA, DIN, IEC, EN, BCI

Applicable Batteries: Regular Flooded/AGM Flat Plate/AGM Spiral/GEL/EFB

AUTOOL BT880 Automotive Battery Tester
