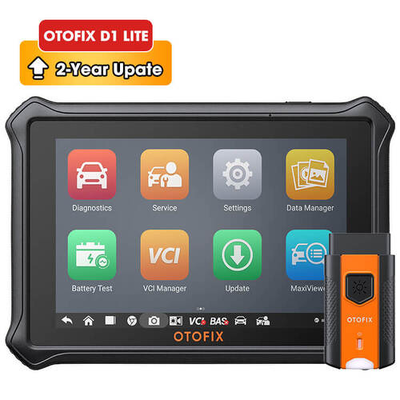

OTOFIX D1 Lite OBD1 OBD2 All System Diagnostic Scanner and Service Scan Tool

OTOFIX D1 Lite is a professional diagnostic tool with a 7-inch touch screen that focuses mainly on complete reading and deleting DTCs for complete systems as well as various reset services such as oil reset, DPF, EPB, SAS reset, injectors coding etc.

D1 Lite is a powerful diagnostic tool that provides one-stop solutions when paired with the OTOFIX cloud-based app on your phone or tablet. You’ll never have to wonder what that check engine light means when you have the ability to run full systems diagnostics, comprehensive service functions, and dealership-grade diagnosis and diagnostic trouble code (DTC) analysis. Plus, with the power of OTOFIX cloud services behind it, the D1 Lite will keep you on top of all the latest problems and fixes for your an extensive variety of popular vehicle makes and models. Put the power of a professional garage in your hand with the OTOFIX D1 Lite. All OTOFIX products are backed by a One Year Limited Warranty.

Main Features

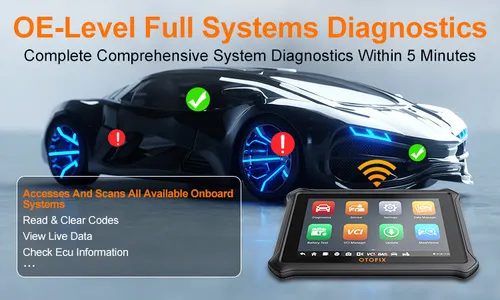

Read/clear codes for all available systems. Display live data in text, graph & analog for easy data review
Auto VIN technology can automatically identify the vehicle’s make, model, and year information in no time
Connect seamlessly with OTOFIX cloud service to obtain remote expert support and share diagnostic reports
Supports battery diagnostics with BT1 Lite Smart Battery Tester (purchased separately)
Display live data in text, graph & analog for easy data review

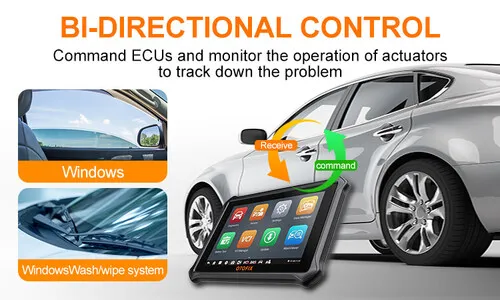

Active testing

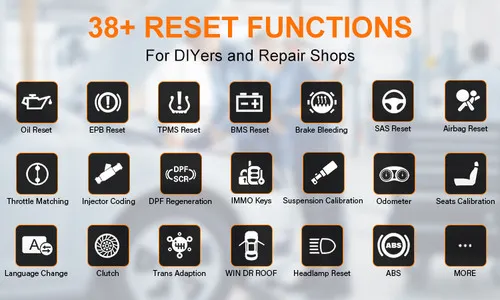

Oil service reset and reset service mileage and service intervals
Support injector coding functions
ABS bleeding
EPB reset, relearn parking brake pad after replacement
Support forced DPF regeneration and adjusting injectors
Support battery registration and reset
IMMO and key programming functions
Reset steering angle sensor (SAS)
and more

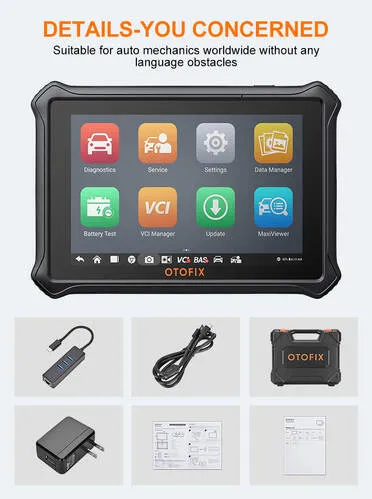

Package Includes

Otofix D1 Lite Main Unit
Power Adapter
Main Cable
Type C USB Cable
USB to Ethernet Adapter
Carrying Case
Quick Reference Guide

The functions and features stated are generic and maybe not applicable on all vehicles covered. We're here to help you find the best scan tool for your need. If you have questions or want to check suitability for a specific vehicle or function, please contact us for more information. Please include your vehicle's make, model and year and desirable outcome from a scan tool.

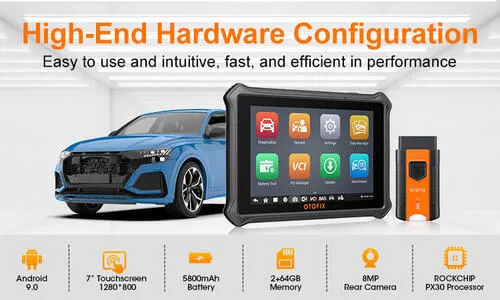

Operating System: Android™ 9

Processor: 4x ARM Cortex-A35 (1.5Ghz)

Memory: 64GB

Display: 7-inch LCD capacitive touchscreen

Connectivity: USB OTG Type-C/ USB Host Type-C

Battery: 5800 mAh

Operating Temp: 0 to 45°C

Storage Temp: -10 to 60°C

Operating Humidity: 5%-95%non-condensing

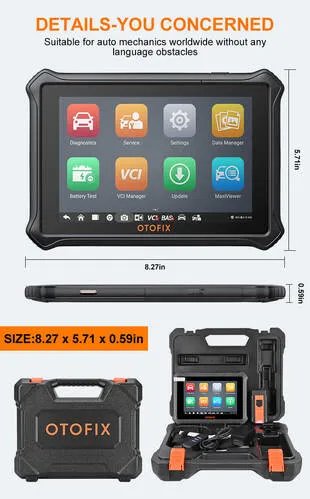

Dimensions: 270.8mm x 176.0mm x 36.0mm

Recommended Use Indoor

Weight: 885g

Protocols: ISO9141-2, ISO14230-2, ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850PWM, ISo11898 (Highspeed, Middlespeed, Low-speed, and Singlewire CAN, fault-tolerant CAN) SAE J2610, GM UART UART Echo Byte Protocol Honda Diag-H Protocol, TP2.0, TP1.6
