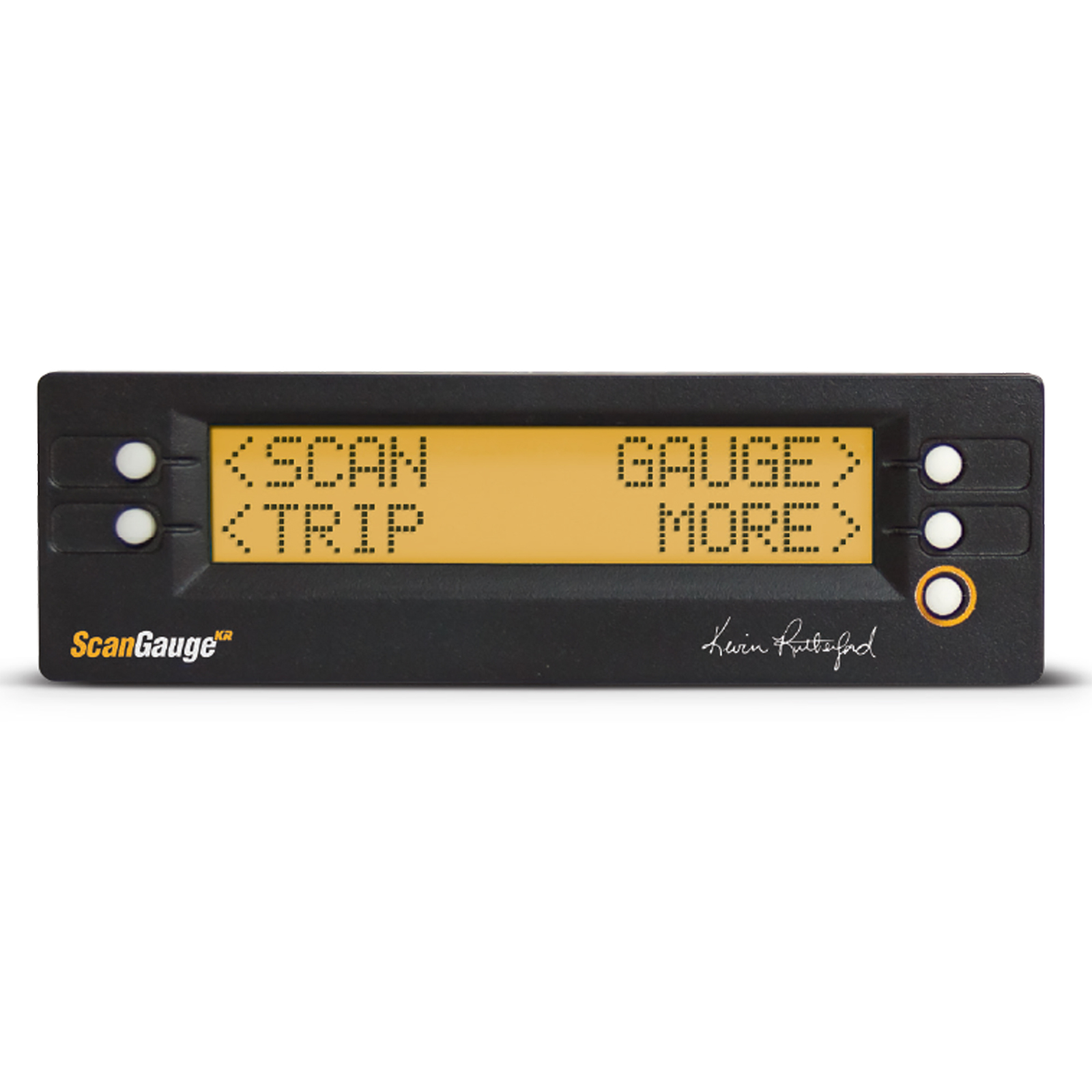

ScanGauge-KR Heavy Diesel Truck Monitor

Live Engine Gauges, Diagnostics & Profit Data

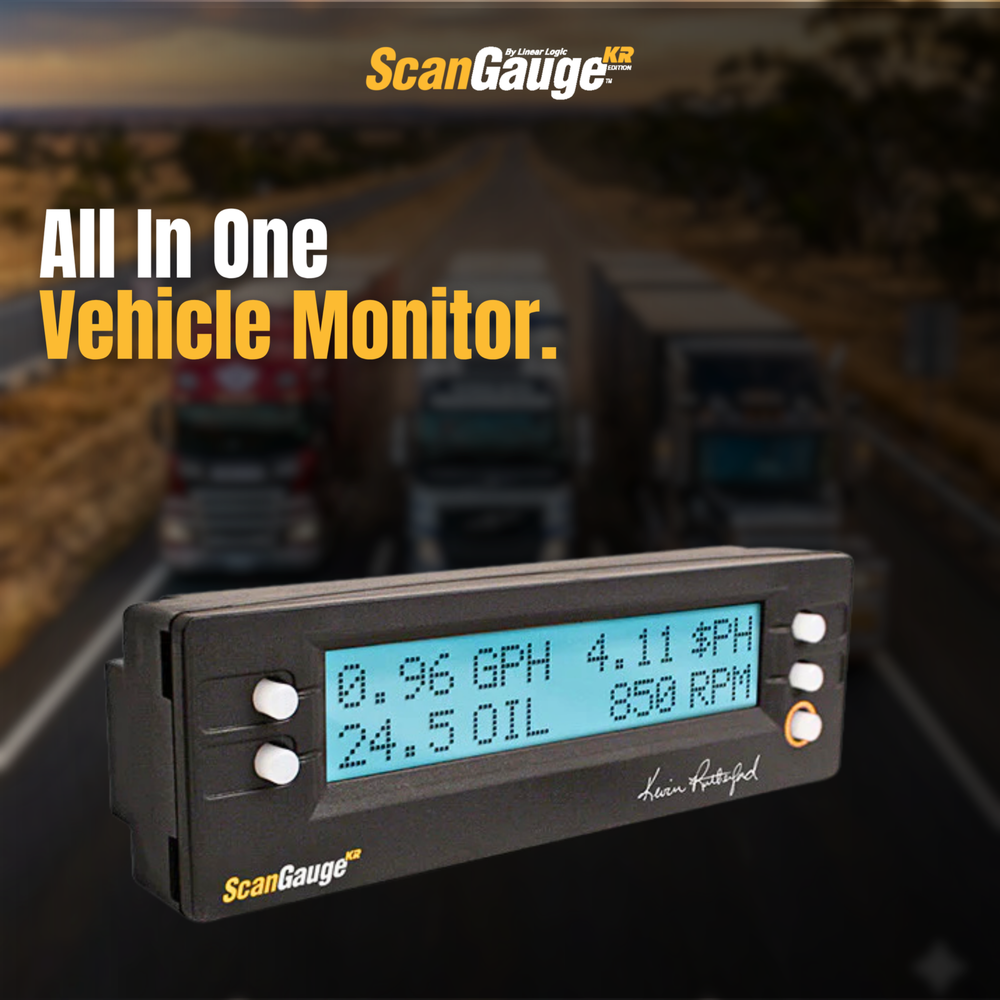

The ScanGauge-KR Heavy Diesel Truck Monitor provides real-time engine monitoring, fuel economy analysis, diagnostic trouble code reading and profit tracking for commercial diesel vehicles. Supporting J1939 and J1708 protocols, it features over 15 digital gauges, five trip computers, programmable X-Gauge™ functions and live income-per-hour calculations. Designed for owner-operators and fleet drivers, it delivers essential vehicle performance and operating cost information through a compact, plug-and-play device.

The ScanGauge-KR Heavy Diesel Truck Monitor provides real-time engine monitoring, fuel economy analysis, diagnostic trouble code reading and profit tracking for commercial diesel vehicles.

Main Features

J1939 & J1708 Heavy Diesel Compatibility – Supports compatible heavy diesel trucks, buses and earthmoving equipment equipped with J1939 9-pin or J1708 6-pin diagnostic connections.
15+ Real-Time Digital Engine Gauges – Monitors engine RPM, coolant temperature, oil pressure, turbo boost, battery voltage, engine load and other supported parameters, displaying up to four readings simultaneously.
Real-Time Profit & Loss Monitoring – Calculates live income per hour using the entered pay rate, fuel price and actual fuel consumption, helping owner-operators assess fuel-related operating returns.
Advanced Fuel Economy Monitoring – Displays instantaneous and average fuel economy, litres per hour, fuel cost per kilometre and trip fuel expenditure to support informed driving decisions.
X-Gauge™ Programmable Monitoring System – Enables additional vehicle-specific parameters, including transmission temperature, exhaust gas temperature, DPF soot load and fuel rail pressure, where supported by the vehicle ECU.
Five Integrated Trip Computers – Records current trip, daily, previous-day and fuel tank information, including distance travelled, driving time, average speed, fuel consumption and operating costs.
Heavy Diesel Diagnostic Trouble Code Reader – Retrieves and clears supported diagnostic trouble codes, providing valuable fault information to assist with preliminary engine troubleshooting and maintenance.
Performance Monitor™ Functionality – Measures acceleration and braking performance, supports saved performance runs and provides additional information for evaluating vehicle operation.
Customisable Four-Gauge Display – Allows drivers to select and arrange four preferred digital gauges for convenient monitoring of critical engine and vehicle operating information.
Metric & Imperial Measurement Support – Offers configurable measurement units, including kilometres, litres, degrees Celsius and kPa, for Australian heavy vehicle applications.
Retained Trip Data Memory – Stores trip computer information within the device, maintaining recorded data even when disconnected from the vehicle's power supply.
Plug-and-Play Diagnostic Installation – Connects directly to compatible J1939 9-pin or J1708 6-pin diagnostic ports without additional hardwiring, using power supplied through the vehicle's diagnostic connection.

Package Includes

1 × ScanGauge-KR unit
1 × J1939 9-pin cable
1 × J1708 6-pin adapter
1 × Velcro mounting tape
User Manual

ScanGauge-KR Advanced Heavy Diesel Monitoring & Diagnostic Features

J1939 & J1708 Compatibility – Supports compatible heavy diesel vehicles with 9-pin and 6-pin diagnostic ports.
15+ Live Engine Gauges – Displays four real-time engine parameters simultaneously.
Real-Time Profit & Loss Tracking – Calculates live income per hour based on pay rate and fuel costs.
Fuel Economy Monitoring – Tracks L/100km, litres per hour and fuel cost per kilometre.
X-Gauge™ Programmable Gauges – Supports additional vehicle-specific monitoring parameters.
Five Trip Computers – Records distance, fuel consumption, driving time and trip costs.
Heavy Diesel Fault Code Reader – Reads and clears supported diagnostic trouble codes.
Performance Monitor™ – Measures acceleration, braking and vehicle performance.
Customisable Digital Display – Allows selection of four preferred live engine gauges.
Metric & Imperial Units – Supports kilometres, litres, Celsius and other measurement units.
Trip Data Memory – Retains recorded trip information when disconnected from power.
Plug-and-Play Installation – Connects directly to compatible diagnostic ports without additional wiring.

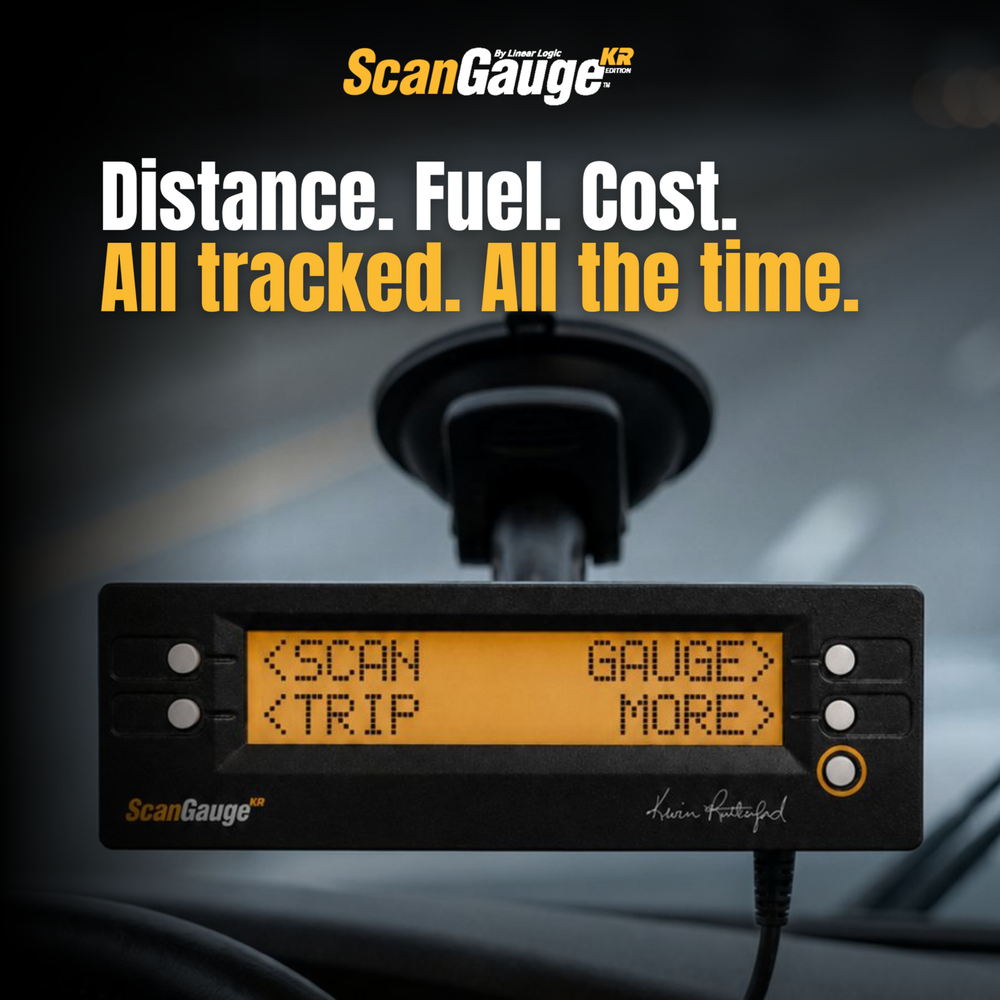

ScanGauge-KR heavy diesel truck monitor and diagnostic scan tool features

ScanGauge-KR Heavy Diesel Truck Monitor Technical Specifications

Display	Backlit LCD with adjustable colour, 5-button operation
Gauges on screen	4 at once
Built-in gauges	15+ incl. oil pressure, intake temp and boost
Profit / loss gauges	✔ Live income per hour ($PH) from your pay rate, fuel price and economy
X-Gauges	✔ Vehicle-specific list built from your truck's recorded data
Fault codes	Read & clear, with data captured when the code was set
Trip computers	5 (3 time & distance, 2 tank)
Performance Monitor	✔ Acceleration and braking
Compatibility	Heavy diesel from 1990 — J1939 (9-pin) & J1708 (6-pin)
Connection	J1939 9-pin cable + J1708 6-pin adapter — powered by the diagnostic port
Mounting	Velcro mount included
Units	Metric & imperial
Dimensions	12.19 × 3.8 × 2.55 cm
Warranty	3 years (Australia)

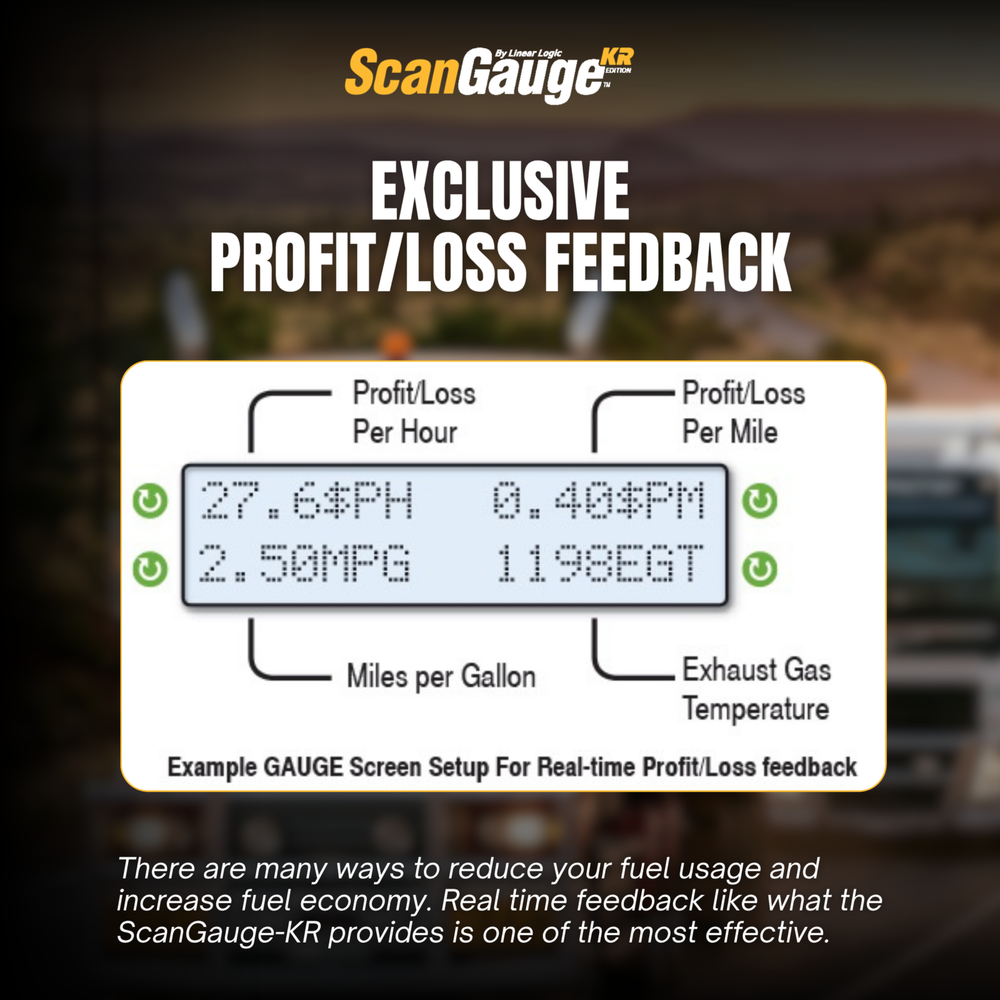

ScanGauge-KR digital engine monitoring display for commercial trucks
