TOPDON Phoenix Max Professional Diagnostic Scanner

TOPDON Phoenix Max Professional Automotive Diagnostic Scanner

Professional OE-Level Vehicle Diagnostics

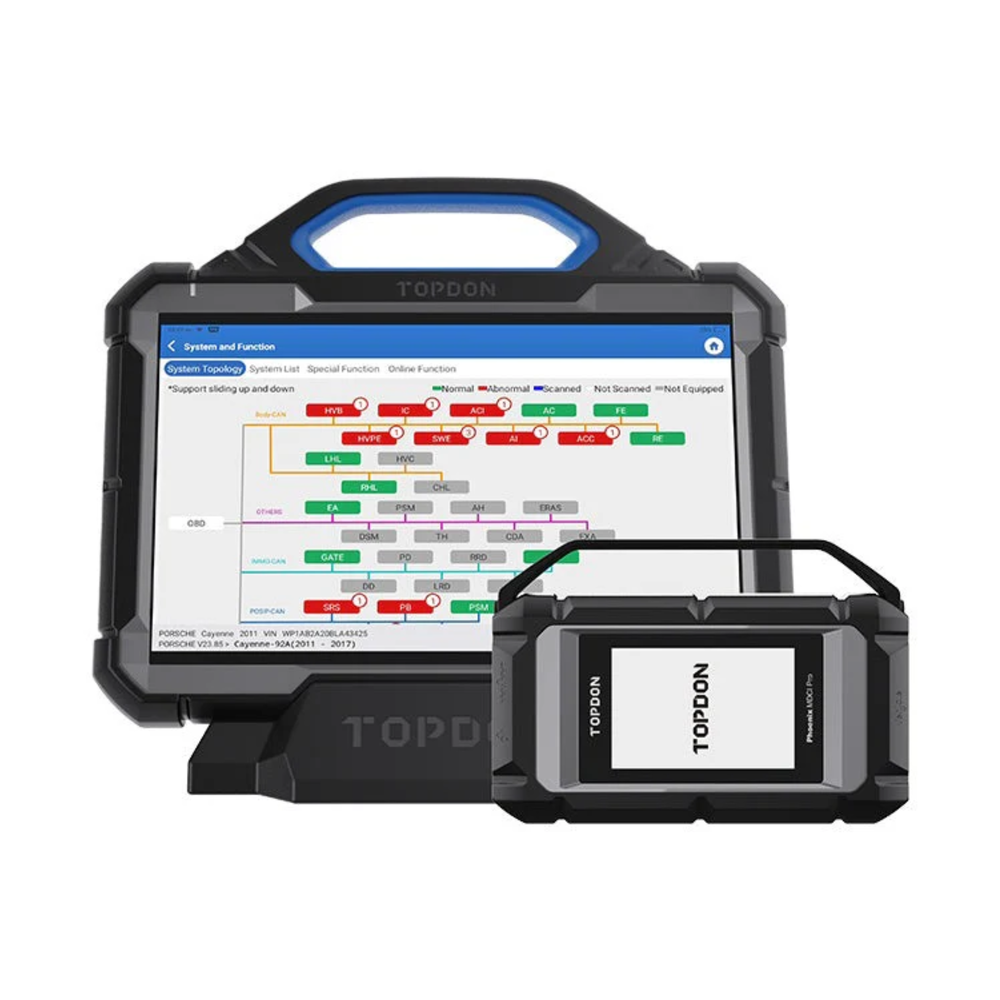

The TOPDON Phoenix Max is a premium professional diagnostic platform designed for advanced automotive workshops and technicians requiring comprehensive OE-level diagnostics, ECU programming, topology mapping and cloud-based coding. Featuring a large 13.3-inch display, the powerful Phoenix MDCI Pro interface, integrated 4-channel oscilloscope support and extensive vehicle coverage, the Phoenix Max delivers exceptional performance for passenger vehicles and optional heavy-duty applications, making it an ideal solution for modern automotive repair businesses.

Main Features

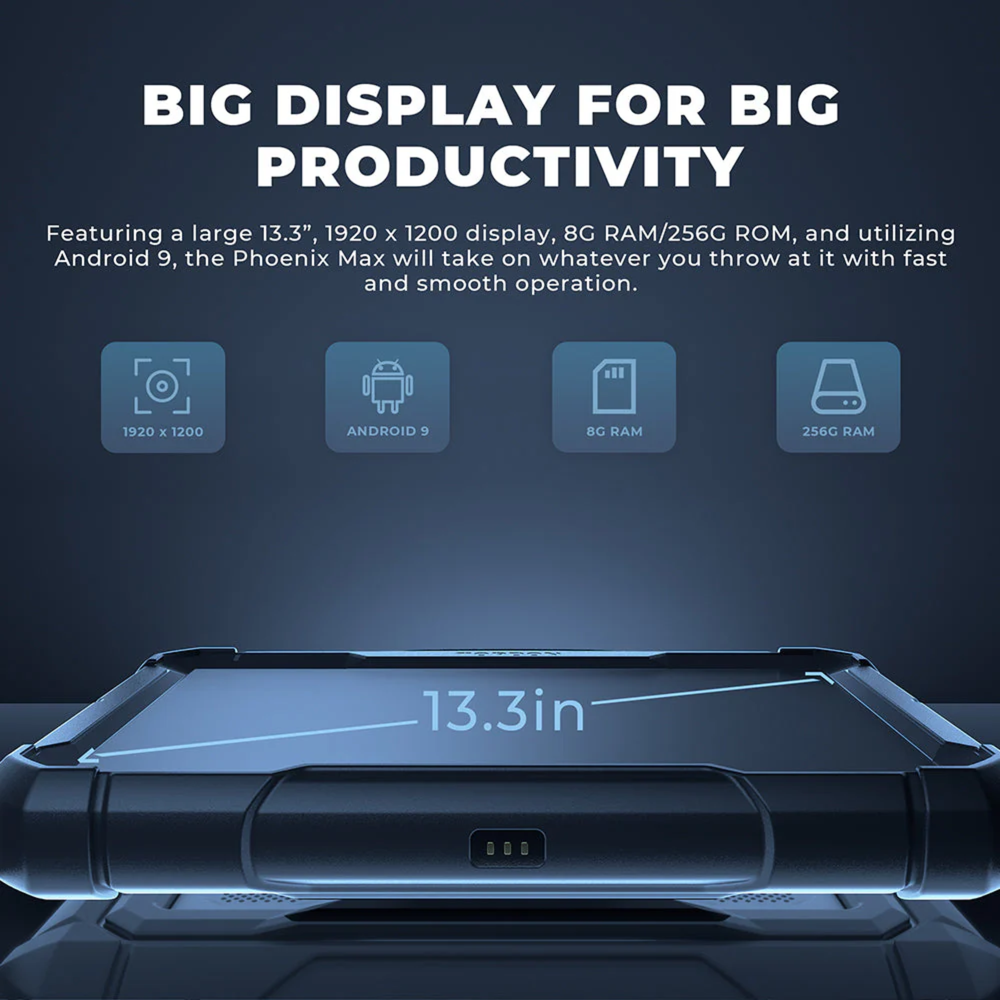

13.3" Full HD Touchscreen Display – Features a large 13.3-inch Full HD touchscreen with 1920 × 1200 resolution, delivering exceptional clarity for live data, diagnostics and effortless navigation throughout the repair process.
Phoenix MDCI Pro Communication Interface – Includes the advanced Phoenix MDCI Pro VCI supporting DoIP, CAN FD, D-PDU and RP1210 protocols for fast, stable and reliable communication with the latest vehicle systems.
Cloud-Based ECU Programming – Supports cloud-based ECU programming for selected manufacturers including Mercedes-Benz, BMW, Volkswagen Group, Audi, Škoda, SEAT, Porsche, Jaguar, Land Rover, Hyundai, Nissan, Subaru and Renault.
Online ECU Coding – Performs online coding for supported Audi, BMW and Porsche vehicles, allowing module replacement, system configuration and feature activation with OE-level functionality.
Intelligent Topology Mapping – Displays every vehicle control module and its communication status in a single graphical layout, allowing technicians to quickly identify faults and communication issues.
Integrated 4-Channel Oscilloscope Support – Supports advanced waveform analysis for accurate testing of sensors, actuators and electrical circuits, helping diagnose complex electronic faults with greater precision.
Full-System Diagnostics – Performs comprehensive diagnostics across all major vehicle systems, including the engine, transmission, ABS, SRS, TPMS, steering, air conditioning, gateway, radio and immobiliser for OE-level fault detection.
41 Professional Service Functions – Includes 41 advanced maintenance functions such as Oil Reset, EPB, SAS Calibration, DPF Regeneration, Injector Coding, Battery Registration and many additional workshop service procedures.

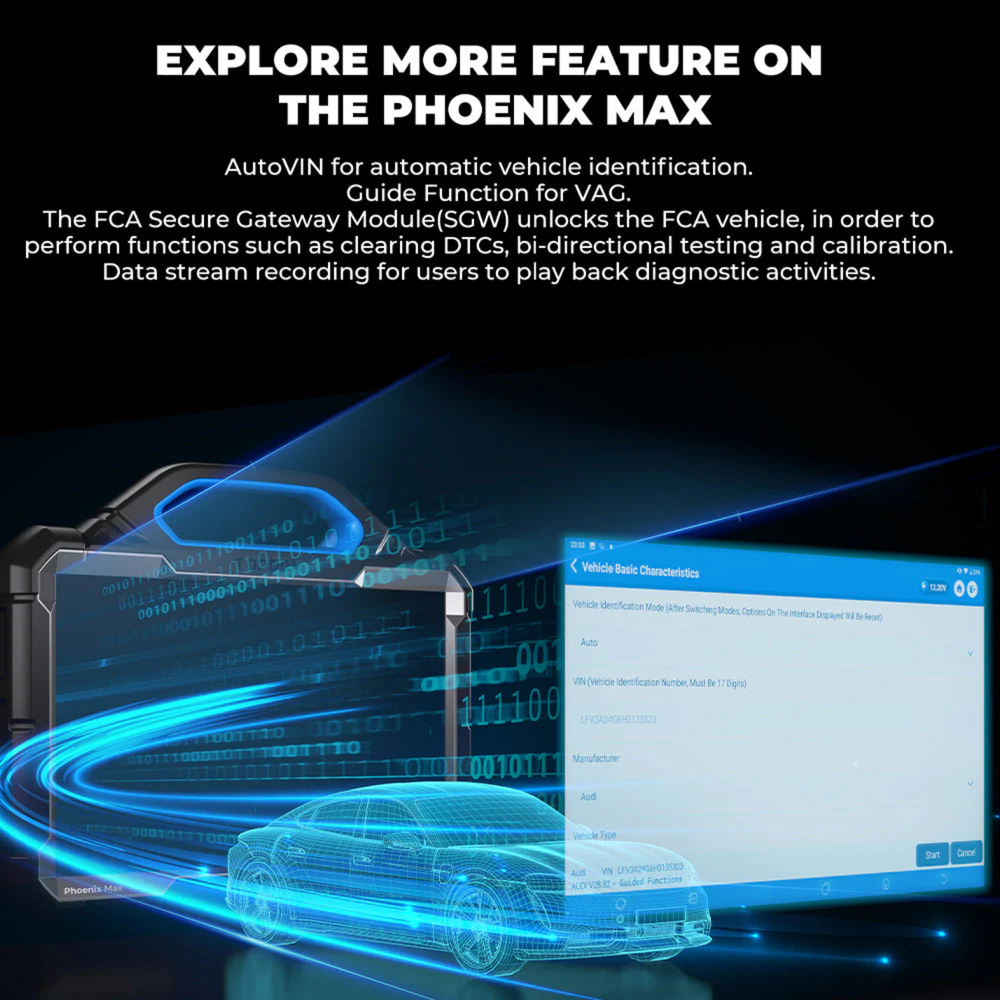

AutoVIN Vehicle Identification – Automatically identifies supported vehicles using the VIN, reducing setup time and enabling technicians to begin diagnostics more efficiently.
FCA Secure Gateway Access – Supports authorised FCA SGW access, allowing advanced diagnostics, active tests, calibrations and service functions on compatible FCA vehicles.
High-Performance Hardware – Powered by Android 9 with 8GB RAM, 256GB internal storage and a high-performance processor for fast operation, smooth multitasking and reliable performance.

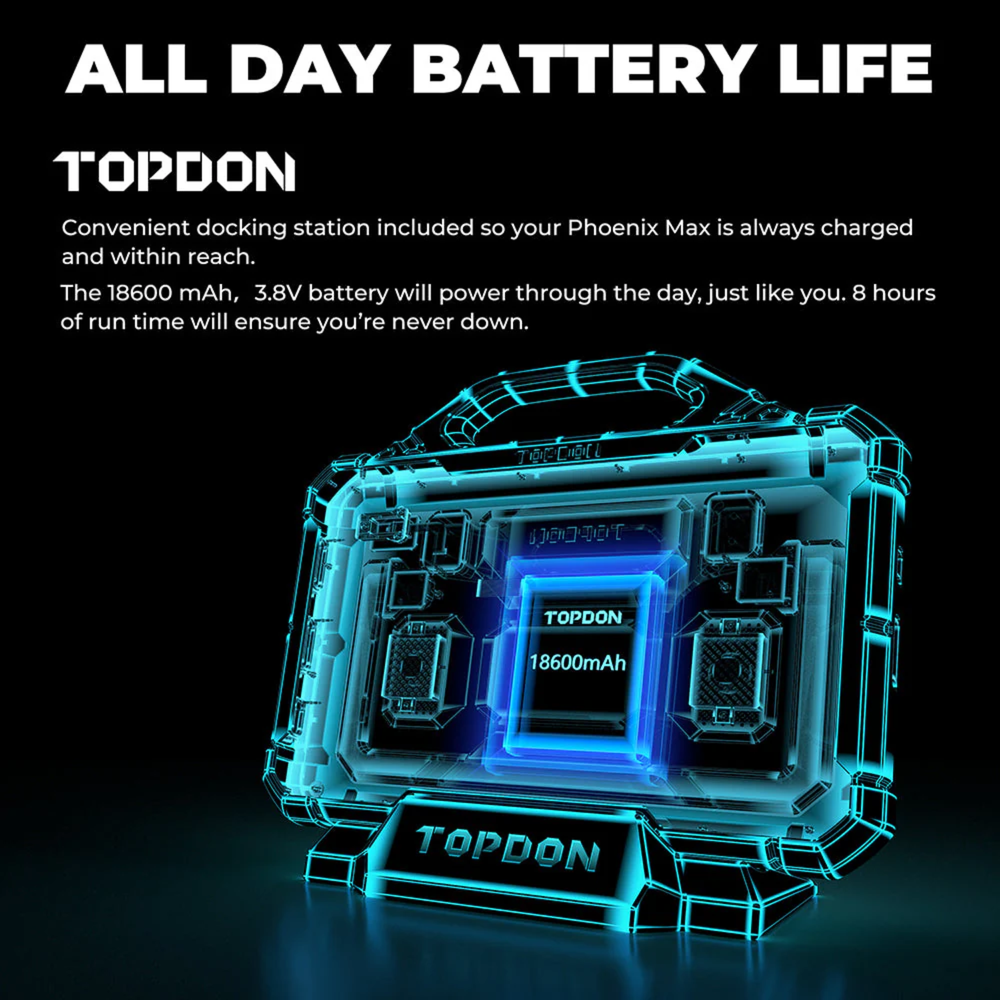

Long-Lasting Battery Performance – Equipped with a high-capacity 18,600mAh lithium battery delivering up to 8 hours of continuous operation, complete with a convenient charging dock for all-day productivity.

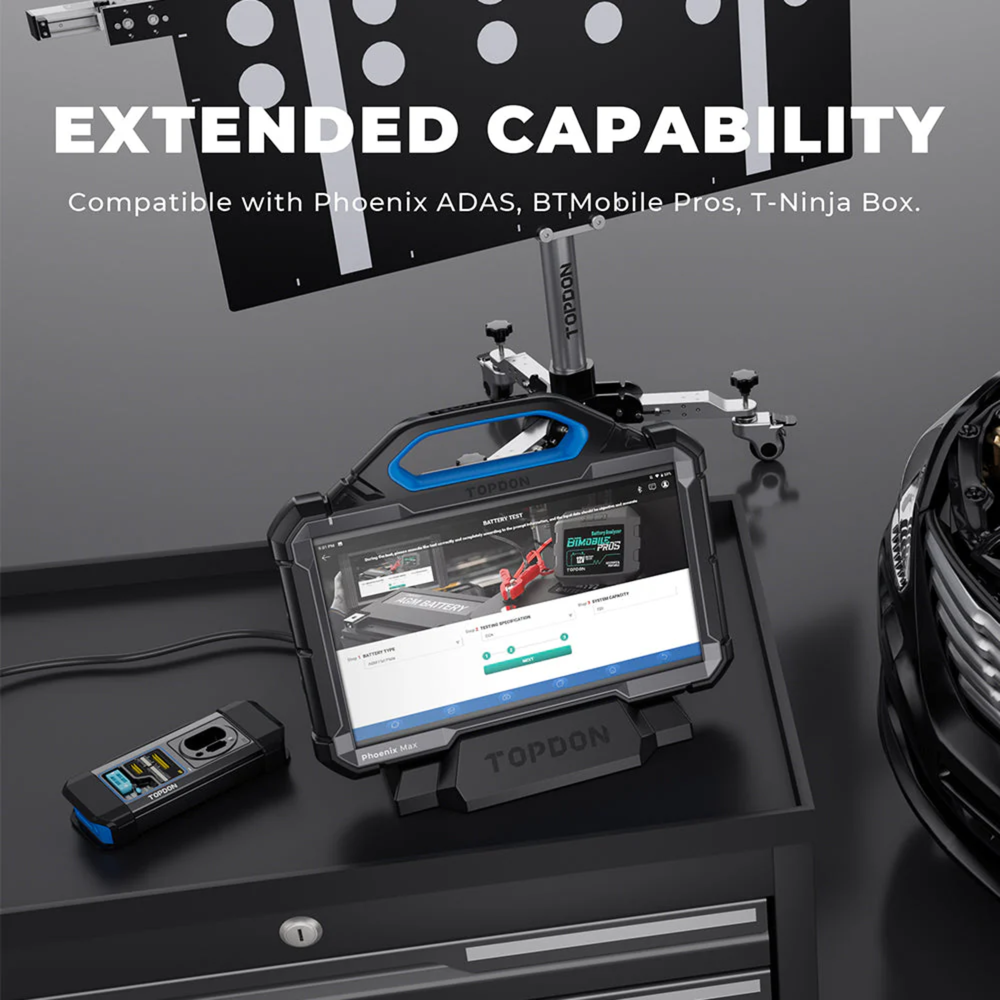

Expandable Workshop Compatibility – Compatible with the TOPDON Phoenix Mobile ADAS system, BTMobile ProS battery tester and T-Ninja Box key programming device for expanded workshop capabilities.
Optional Heavy-Duty Vehicle Diagnostics – Supports optional heavy-duty diagnostic software and cable packages, allowing workshops to diagnose both passenger and commercial vehicles using a single platform.

Package Includes

ArtiDiag900 Lite & VCI
Power Adapter & Ethernet Cable
OBD-II Extension Cable
USB Cable (Type-A to Type-C)
Quick User Guide and User Manual
Carrying Case & Package Box
Phoenix Max & Base
Phoenix MDCI PRO
MDCI PRO CAB Male to Diagnostic Cable
Clipper Cable ( LCDSS )
Fuse ( AC250V/5A, φ5x20mm ) * 4
MDCI PRO CAB Type A to B Cable
Cigarette Lighter Cable
Fuse ( AC250V/5A, φ6x30mm ) * 2
BZ-38 ( BENZ ) , TA-17 ( TOYOTA ), B-20 ( BMW ), HA-3 ( HONDA )
M/H-12+16 (MITUBISHI/HYUNDAI)
OBD I Adaptor , Charging Cable
TA-22 ( TOYOTA ), G/V-12 ( GM/VAG ), CR-6 ( CHRYSLER ), NN-14+16 ( NISSAN )
Adaptor & AC Cable (US/ EU/UK）
Mini-HDMI to HDMI
3-in-1 Charger (Matched with U.S., U.K. and Europrean plugs)
FT-3 (FIAT）
Type A USB to Type C

Phoenix Max Premium Professional Diagnostic Platform

13.3-inch Full HD Touchscreen Display

OE-Level Diagnostics for 200+ Vehicle Brands

Cloud-Based ECU Programming & Online Coding

Phoenix MDCI Pro with DoIP & CAN FD Support

Integrated 4-Channel Oscilloscope

Intelligent Topology Mapping

41 Professional Maintenance Service Functions

AutoVIN Automatic Vehicle Identification

FCA Secure Gateway (SGW) Access

Android 9 Operating System

8GB RAM & 256GB Internal Storage

Up to 8 Hours Battery Operation

Supports Optional Heavy-Duty Diagnostics

Compatible with Phoenix Mobile ADAS Calibration Systems

TOPDON Phoenix Max 13.3 inch diagnostic tablet

TOPDON Phoenix Max Technical Specifications

Phoenix Max Specifications

Display: LCD 13.3 inches, 1920 x 1200 pixels

CPU: 8-Core Processor, 2.0 GHz, Android 9.0

RAM: 8G

ROM: 256G

Battery: 18600 mAh / 3.8V

Operating Voltage: 9~18V

Storage Temperature: -20℃~60℃（-4℉~140℉）

Working Temperature: 0℃~50℃（32℉~122℉）

Product Dimensions: 364 x 285 x 82mm (14.30 x 11.20 x 3.20 inches)

Package Dimensions: 673 x 474 x 201mm (26.50 x 18.66 x 7.91 inches)

Net Weight: 3.18kg(7.0 lb)

Multilingual Support: 24 Languages: English, German, Spanish, French, Italian, Japanese, Portuguese, Russian, Polish, Turkish, Dutch, Hungarian, Chinese (Traditional), Korean, Finnish, Greek, Slovak, Romanian, Arabic, Croatian, Slovenian, Czech, Danish, Norwegian

Phoenix MDCI PRO Specifications

CPU: Cortex-A7 + Cortex-M7, Dual Processor

Operating System: Linux

RAM: 256M

ROM: 8G

Display: TFT, 3.97 inches, 320 x 480 pixels

Wi-Fi: 2.4GHz/5GHz, Dual Band

Working Temperature: 0℃~50℃（32℉~122℉）

Operating Voltage: DC 9~36 V

Dimensions: 196 x 135 x 42.8 mm（7.72 x 5.31 x 1.69'')

New Protocols Supported: CAN FD, DOIP, D-PDU, RP1210

TOPDON Phoenix Max advanced vehicle diagnostic equipment
