TOPDON TC001 Thermal Camera 256×192 IR for Android & PC

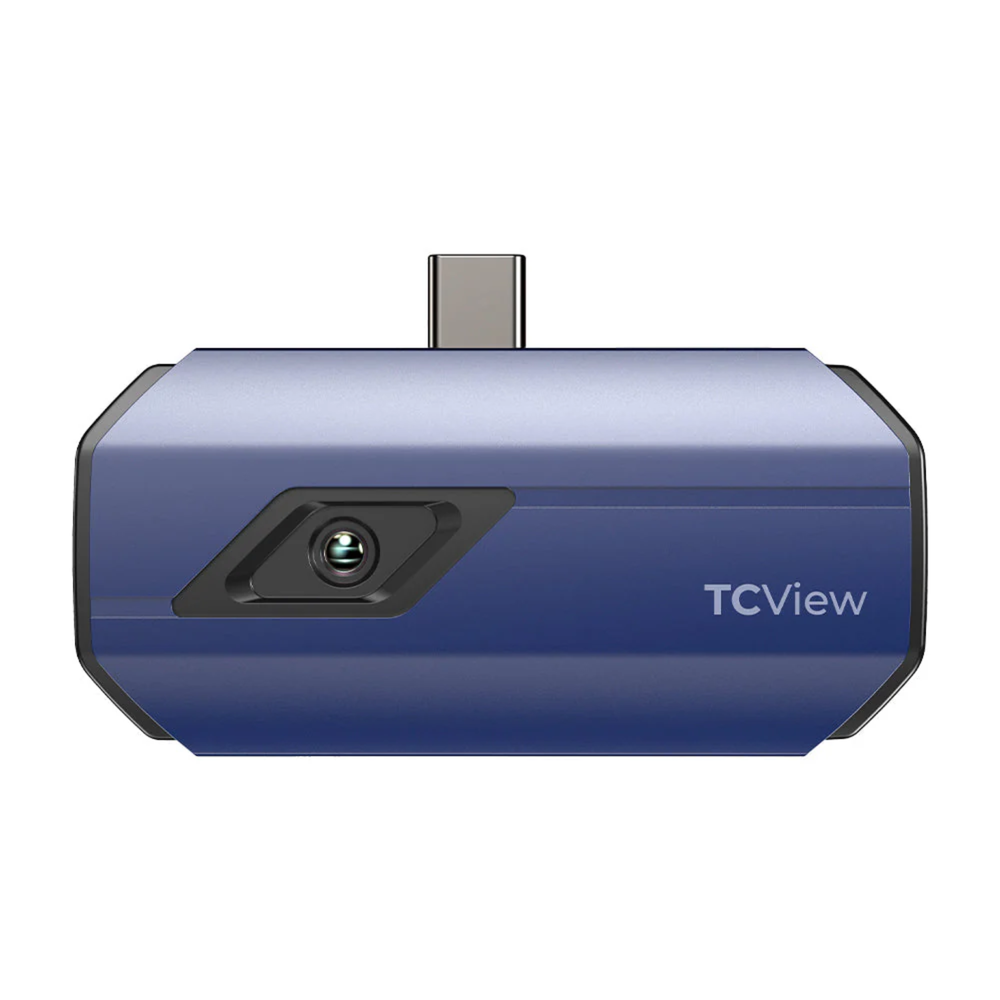

TOPDON TC001 Thermal Imaging Camera

256×192 IR Thermal Camera USB-C Tool

The TOPDON TC001 Thermal Imaging Camera delivers advanced infrared diagnostics in a compact, plug-and-play design engineered for automation and industrial environments. Featuring a high-resolution 256×192 IR sensor, this device transforms Android smartphones and Windows systems into precision thermal analysis tools. With real-time monitoring, waveform graphing, and customizable imaging, it enables accurate detection of temperature anomalies across electrical systems, HVAC units, automotive components, and industrial machinery.

High-resolution 256×192 infrared sensor for precise thermal imaging

Main Features

High-Resolution Infrared Imaging – Equipped with a 256×192 IR sensor, delivering sharp, detailed thermal images for accurate detection of temperature variations in complex systems.
Wide Temperature Measurement Range – Covers -20°C to 550°C, enabling reliable diagnostics across electrical systems, HVAC units, mechanical components, and industrial equipment.
Precision Temperature Detection – Offers ±2°C or ±2% accuracy with 0.1°C sensitivity, ensuring consistent and highly reliable thermal readings for critical applications.

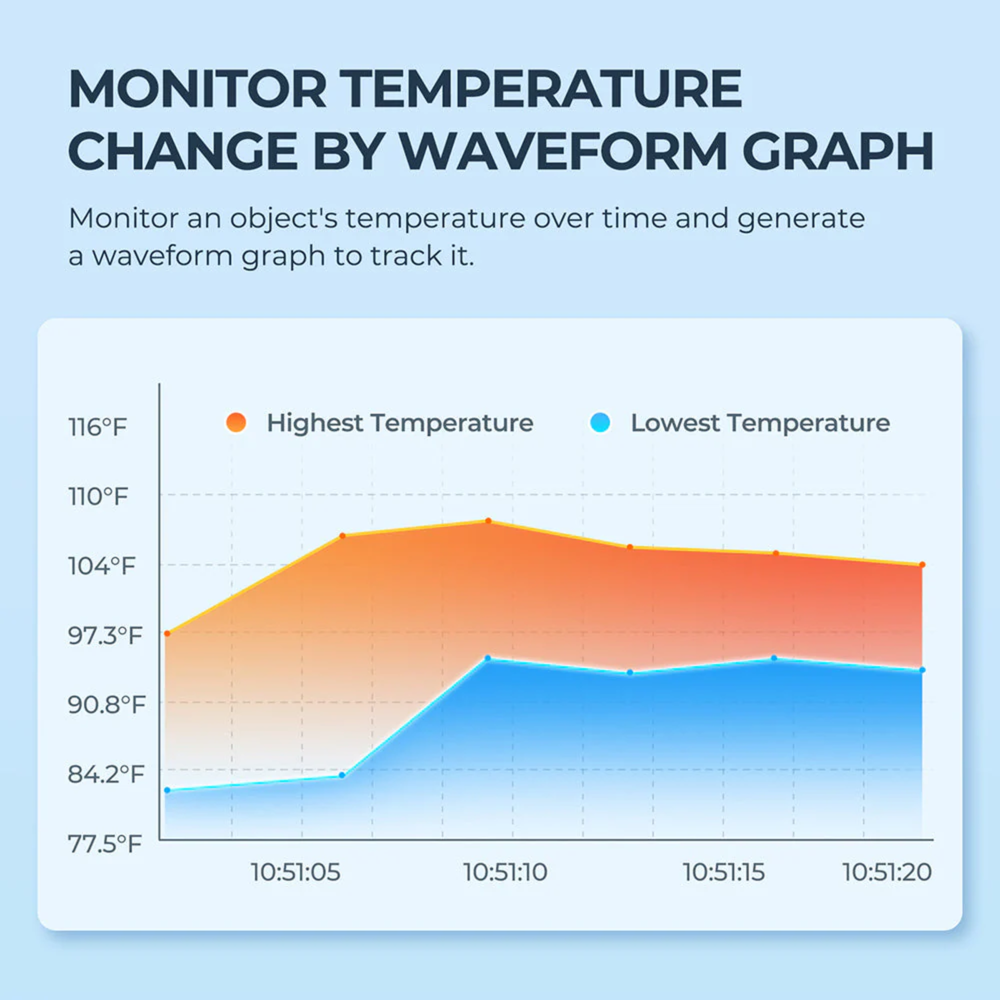

Real-Time Thermal Monitoring & Analysis – Captures continuous temperature data with live display and waveform graph visualization for improved fault detection and trend analysis.

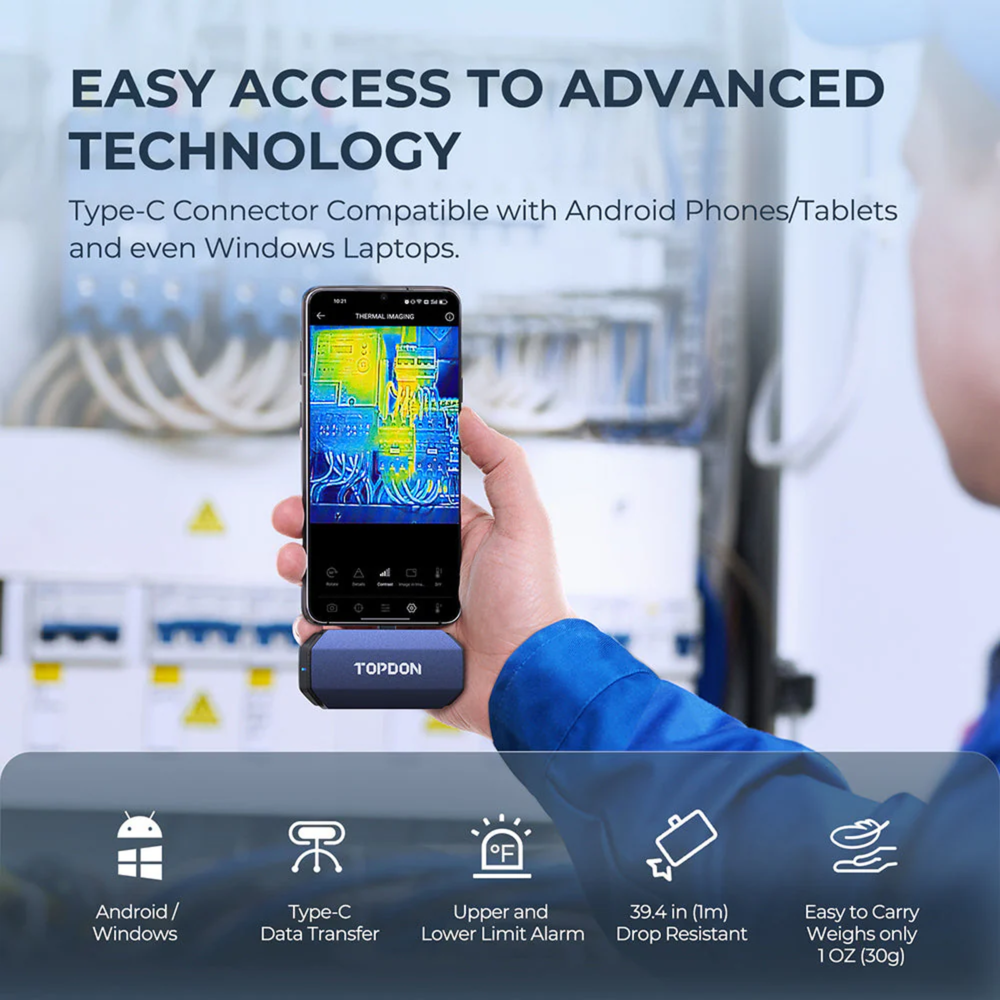

Plug-and-Play USB-C Connectivity – Instantly connects to Android devices and Windows systems without complex setup, enabling immediate thermal inspection in the field.

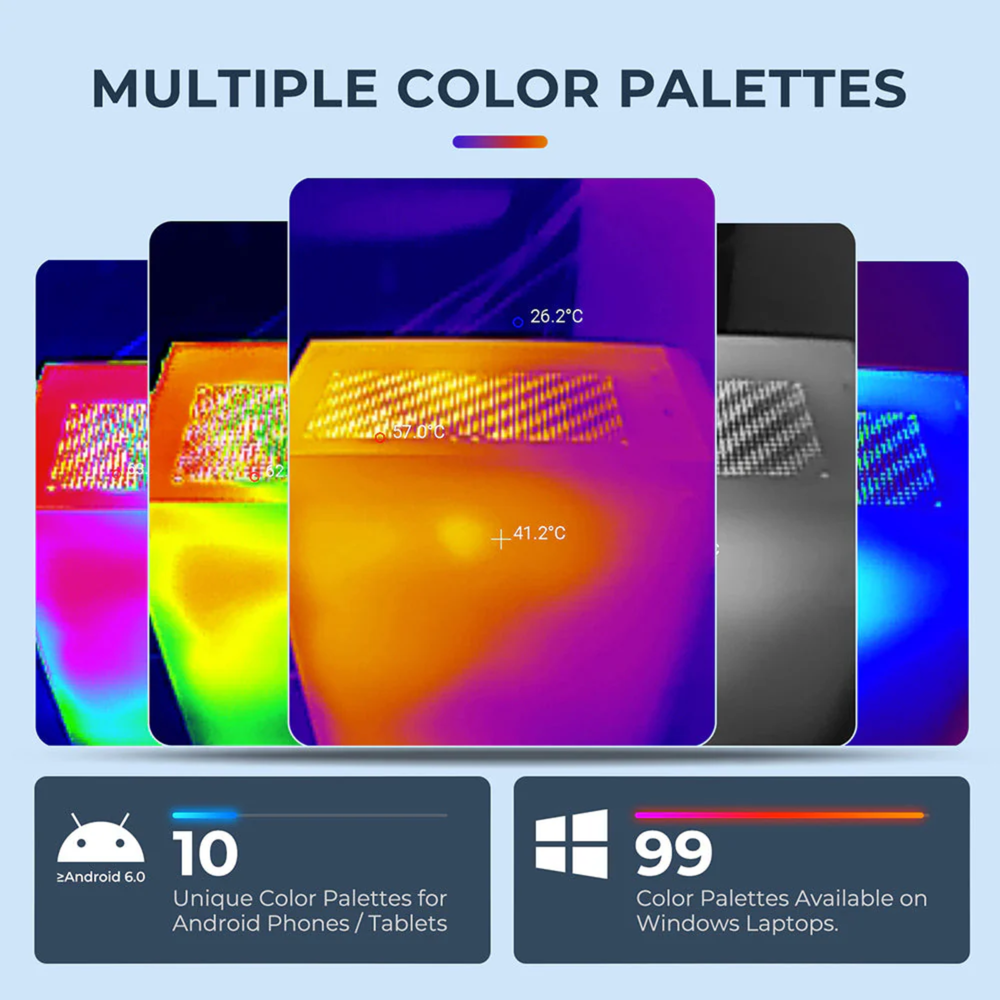

Advanced Image Enhancement Technology – Features 10 color palettes, adjustable contrast, sharpness control, and picture-in-picture mode for improved visibility and target identification.
Low Power Consumption Design – Operates efficiently at just 0.35W, powered directly by the connected device, eliminating the need for additional batteries during extended use.
Compact & Lightweight Construction – Weighing only 30g with a portable form factor, ideal for mobile technicians and on-site industrial inspections.

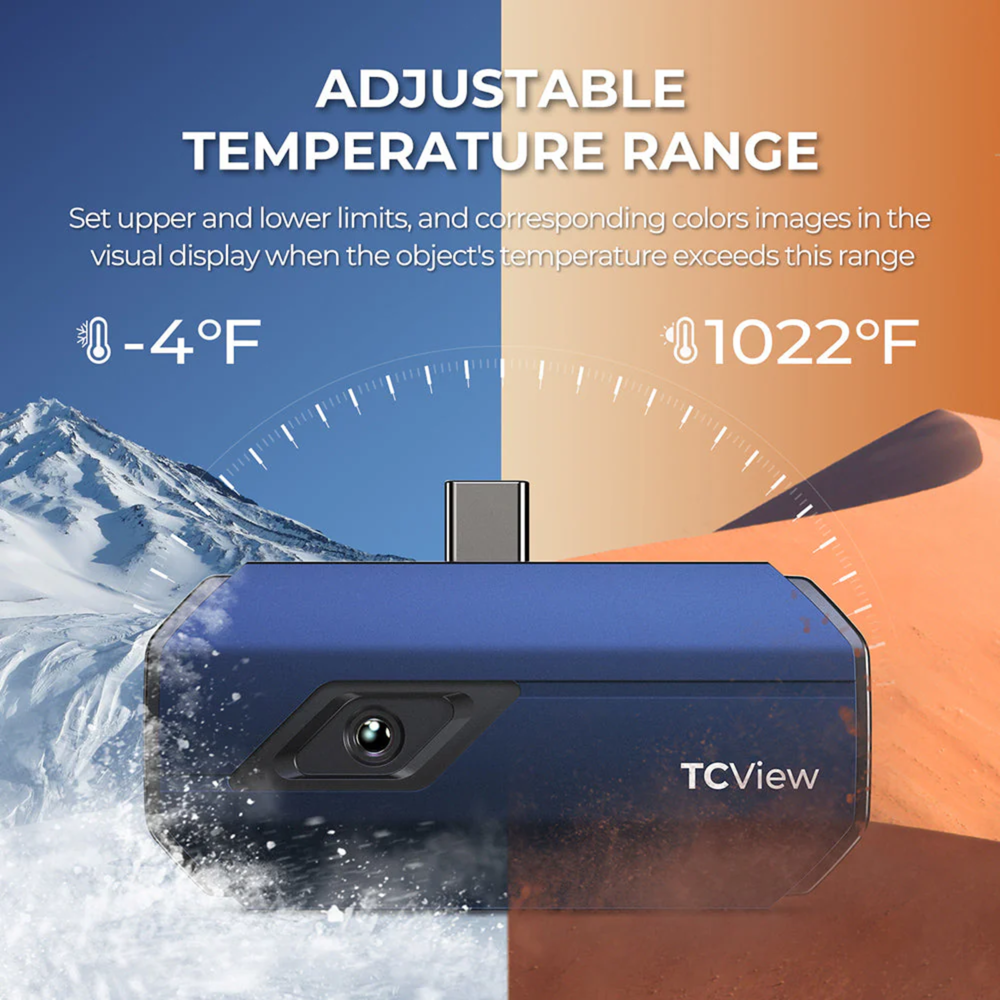

Customizable Temperature Thresholds – Allows users to define upper and lower temperature limits with color-coded alerts for faster anomaly identification.

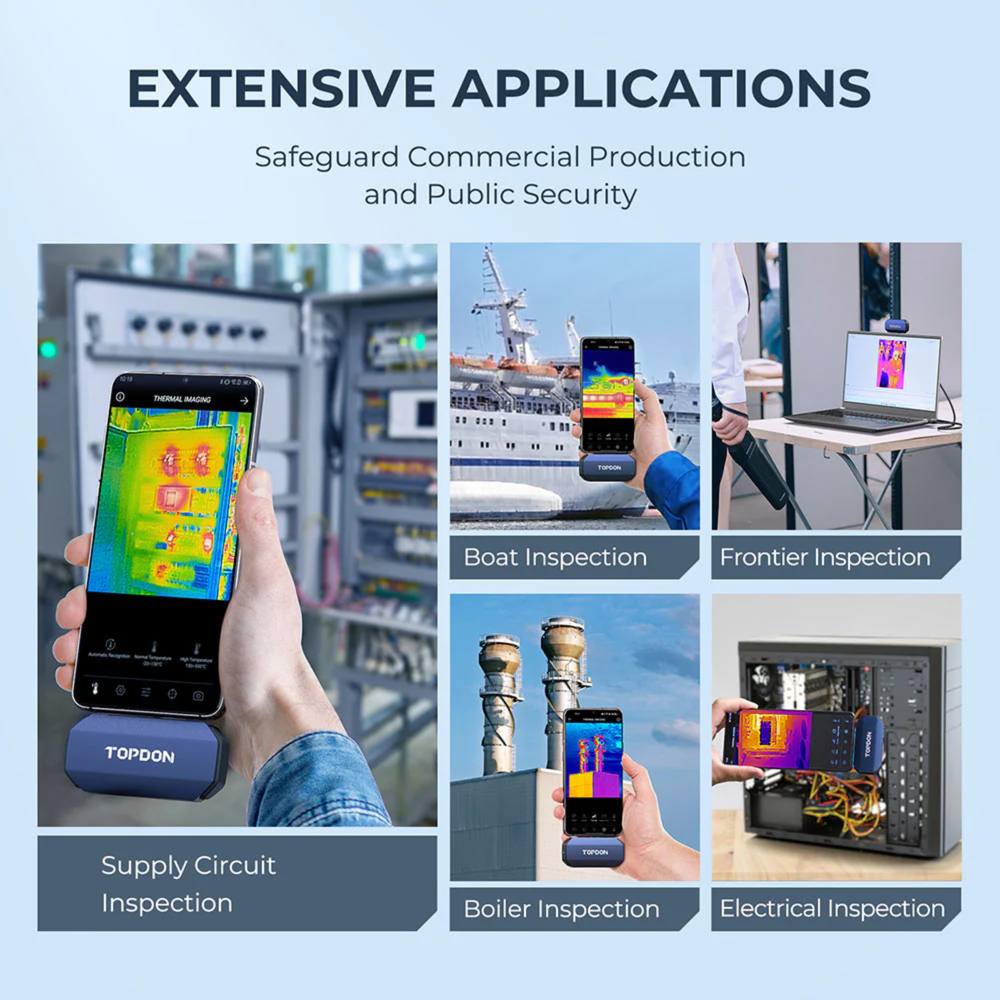

Versatile Application Across Industries – Suitable for automation, electrical diagnostics, HVAC inspection, automotive maintenance, insulation checks, and leak detection tasks.

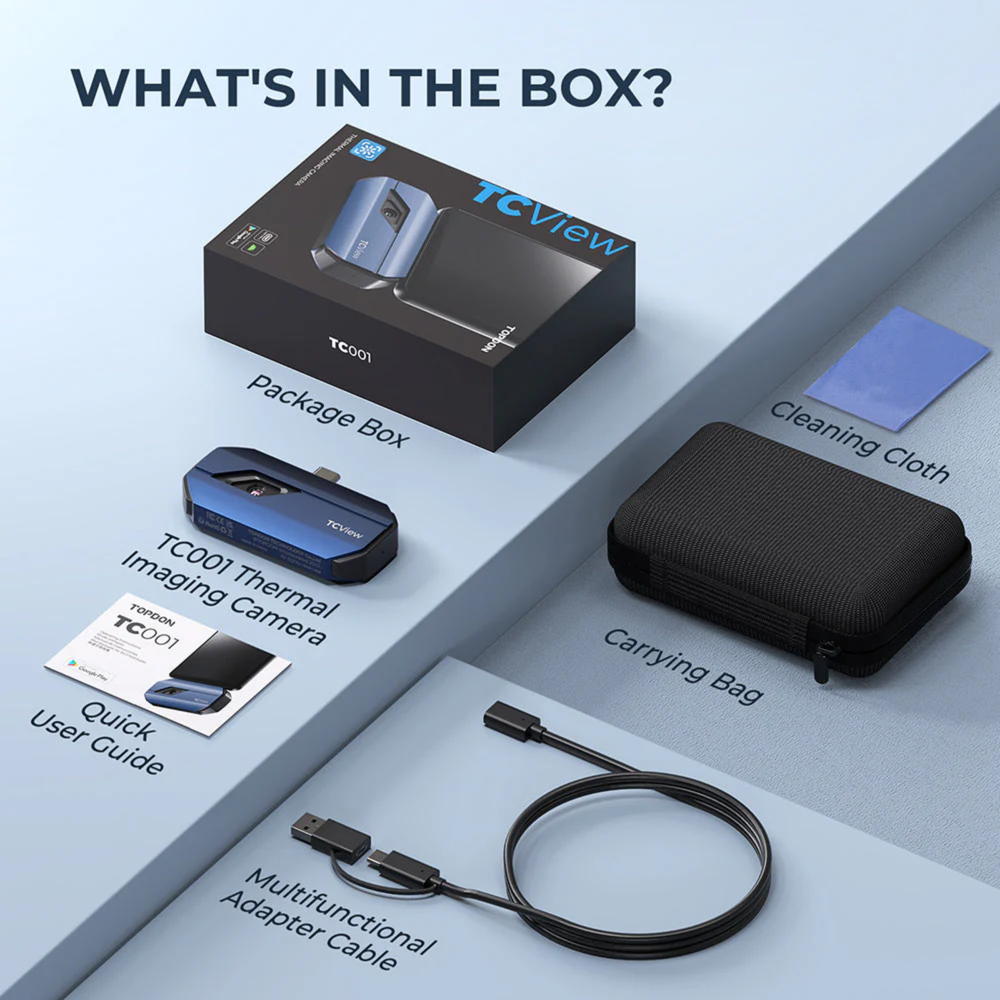

Package Includes

TC001 Thermal Imaging Camera
Carrying Case
Multifunctional Adapter Cable
Package Box
Quick User Guide
Cleaning Cloth

Advanced Thermal Imaging Capabilities for Industrial Diagnostics

High-resolution 256×192 infrared sensor for precise thermal imaging

Wide temperature range from -20°C to 550°C for industrial applications

Real-time thermal analysis with waveform graph monitoring

Ultra-sensitive detection with 0.1°C temperature resolution

Plug-and-play USB-C connectivity for Android and Windows devices.

Advanced image enhancement with 10 color palettes and contrast control

Low power consumption (0.35W) powered directly by host device

Lightweight, compact design optimized for field mobility

Accurate readings with ±2°C or ±2% measurement precision

Ideal for automation, HVAC, electrical, and mechanical diagnostics

Wide temperature range from -20°C to 550°C for industrial applications

TOPDON Thermal Imager Comparison

Comparison Table: TOPDON TC001 | TOPDON TC002C Duo | TOPDON TC004 Lite | TOPDON TC004

	Phone Attachment		Standalone
	TOPDON TC001	TOPDON TC002C Duo	TOPDON TC004 Lite	TOPDON TC004

Thermal Module
IR Resolution	256×192	256×192	160×120	256×192
Super Resolution (TISR)	✓	✓	✓	✓
Field of View (FOV)	56°×42°	50°×37.2°	40°×30°	56°×42°
Spectral Range	8–14μm	8–14μm	8–14μm	8–14μm
NETD	<40mK	<40mK	<40mK	<40mK
Frame Rate	25Hz	25Hz	25Hz	25Hz
Measurement and Analysis
Focal Length	3.2mm	3.5mm	2.6mm	3.2mm
Laser Distance Meter	-	-	-	-
Identification Distance	0.1–50m	0.1–50m	0.1–33m	0.1–40m
Detection Distance	80–320m	80–320m	65–260m	80–320m
Measurement Accuracy	±2°C or ±2%	±2°C or ±2%	±2°C or ±2%	±2°C or ±2%
Temperature Range	-20°C to 550°C	-20°C to 550°C	-20°C to 550°C	-20°C to 350°C
Digital Zoom	-	-	1×/2×/4×	1×/2×/4×

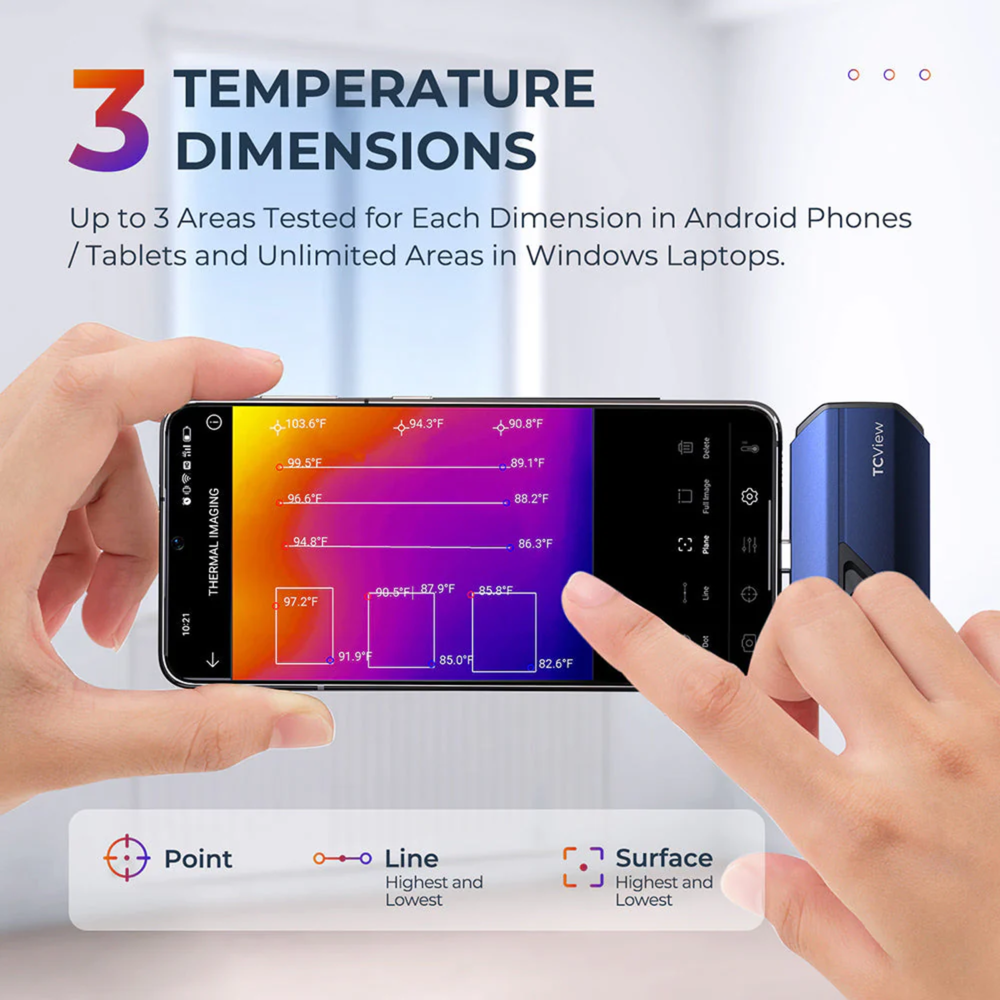

Measurement Modes	Dot / Line / Plane	Dot / Line / Plane	Center spot / Hot spot / Cold spot	Center spot / Hot spot / Cold spot
PC-Based Analysis	✓	✓	-	✓
Visible Light Camera	-	-	-	-
Colour Palettes	10	10	5	5
Battery
Battery Capacity	Phone-powered	Phone-powered	2,900mAh	5,000mAh
Battery Life	-	-	15h	8.5h
Charging Time	-	-	4h	4h
General
Display	Phone screen	Phone screen	2.8" (320×240)	3.5" (640×480)
Storage	Phone storage	Phone storage	512MB built-in	64GB eMMC
LED Flashlight	-	-	-	✓
Video Recording	✓	✓	-	✓
Operating Temperature	-10°C to 50°C	-10°C to 50°C	-10°C to 50°C	-10°C to 50°C
Protection Level	-	-	IP54	IP54
Weight	30g	30g	520g	487g
Standalone Use	-	-	✓	✓
Compatible Systems	Android / Windows	iOS / Android / Windows	Standalone	iOS / Android / Windows / Standalone
	LEARN MORE	LEARN MORE	LEARN MORE	LEARN MORE

TOPDON TC001 Precision Infrared Diagnostic Solution

Model: TC001

Spectral Range: 8~14μm

Resolution: 256×192 Pixels

Pixel Size: 12μm

NETD: ＜40mK at 25°C, F#1.0, 25Hz

Frame Rate: 25Hz

Object Temperature Range: -20~150°C (-4~302°F), 150°C~550°C (302~1022°F)

Accuracy: Temperature Accuracy: ±3.6ºF(2ºC). Note: The potential thermal error will be less than ±1.8°F (1ºC) when the target temperature is below 212°F (100ºC).

Temperature Resolution: down to 0.1ºC (0.1ºF)

Weight: 30g

Dimension: 71*42*14mm (2.80*1.65*0.55 inch)

Cable Length: 50cm (19.69 inch)

Operating Systems: Compatible with Android Phone / Tablet & Windows Laptops
