TOPDON TC004 Industrial Thermal Imaging Camera

IP54 Industrial Infrared Inspection Tool

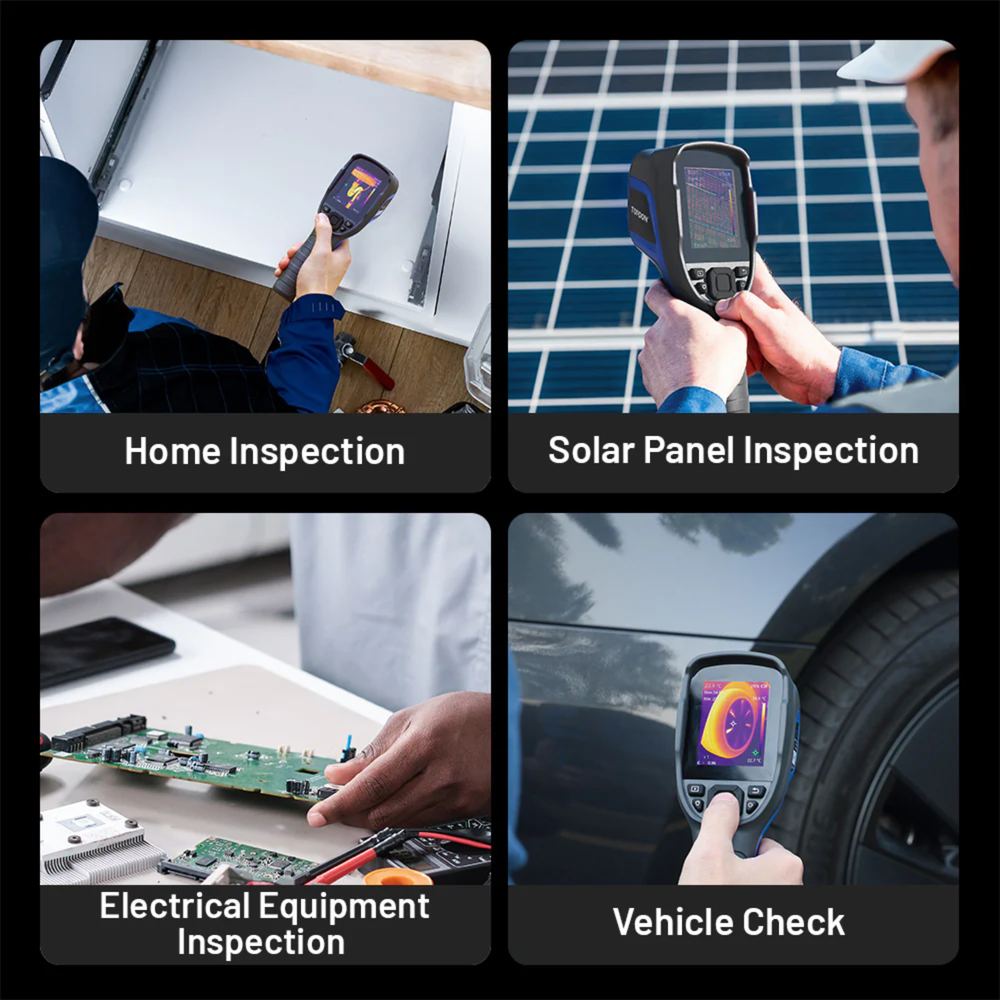

The TOPDON TC004 Thermal Imaging Camera is engineered for high-precision diagnostics across industrial, electrical, automotive, and building inspection environments. Featuring advanced Thermal Image Super Resolution (TISR) technology, it enhances image clarity for accurate fault detection and analysis. With a wide temperature range, real-time imaging, and intelligent detection modes, the TC004 enables professionals to identify heat anomalies quickly and efficiently, improving maintenance accuracy, operational safety, and workflow productivity.

The TOPDON TC004 Thermal Imaging Camera is engineered for high-precision diagnostics across industrial, electrical, automotive, and building inspection environments.

Main Features

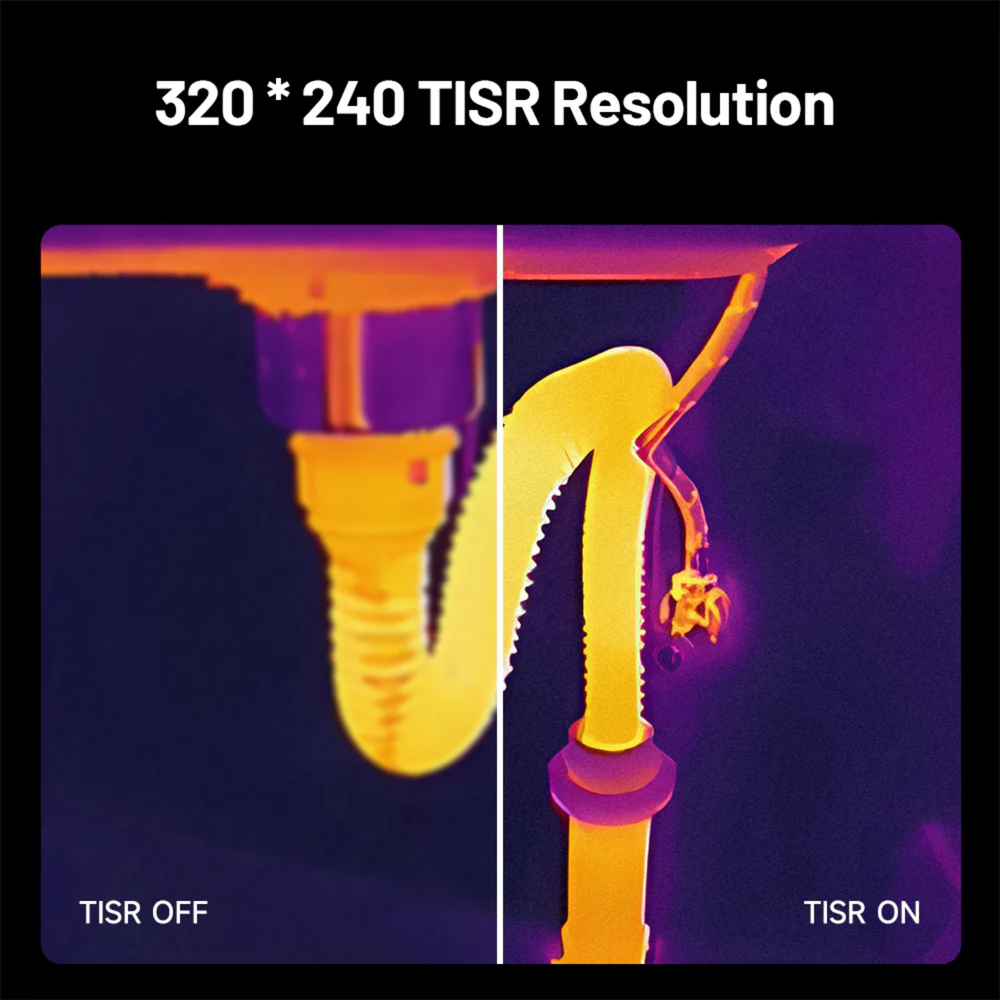

Thermal Image Super Resolution (TISR) Technology – Enhances thermal image clarity from 256×192 to 320×240, delivering sharper visuals and improved detail recognition for precise diagnostics.
Multi-Mode Temperature Measurement – Supports center point, hot spot, and cold spot detection, enabling accurate identification of temperature variations across different inspection scenarios.
Automatic Thermal Anomaly Detection – Intelligently highlights temperature differences in real time, allowing faster identification of potential faults without manual analysis.
Wide Field of View Coverage – Features a 52.5° × 39.5° FOV to capture larger inspection areas in a single frame, reducing scanning time and improving efficiency.
Extended Temperature Measurement Range – Measures temperatures from -20°C to +350°C, making it suitable for a wide range of industrial, electrical, and automotive applications.
High Measurement Accuracy – Delivers precise readings with ±2°C accuracy, ensuring dependable results for critical diagnostics and maintenance tasks.
High Thermal Sensitivity (<40mK) – Detects even minimal temperature differences, enabling early identification of faults before they develop into major issues.
Real-Time Imaging with 25Hz Refresh Rate – Provides smooth and continuous thermal imaging, ensuring accurate monitoring of dynamic temperature changes.

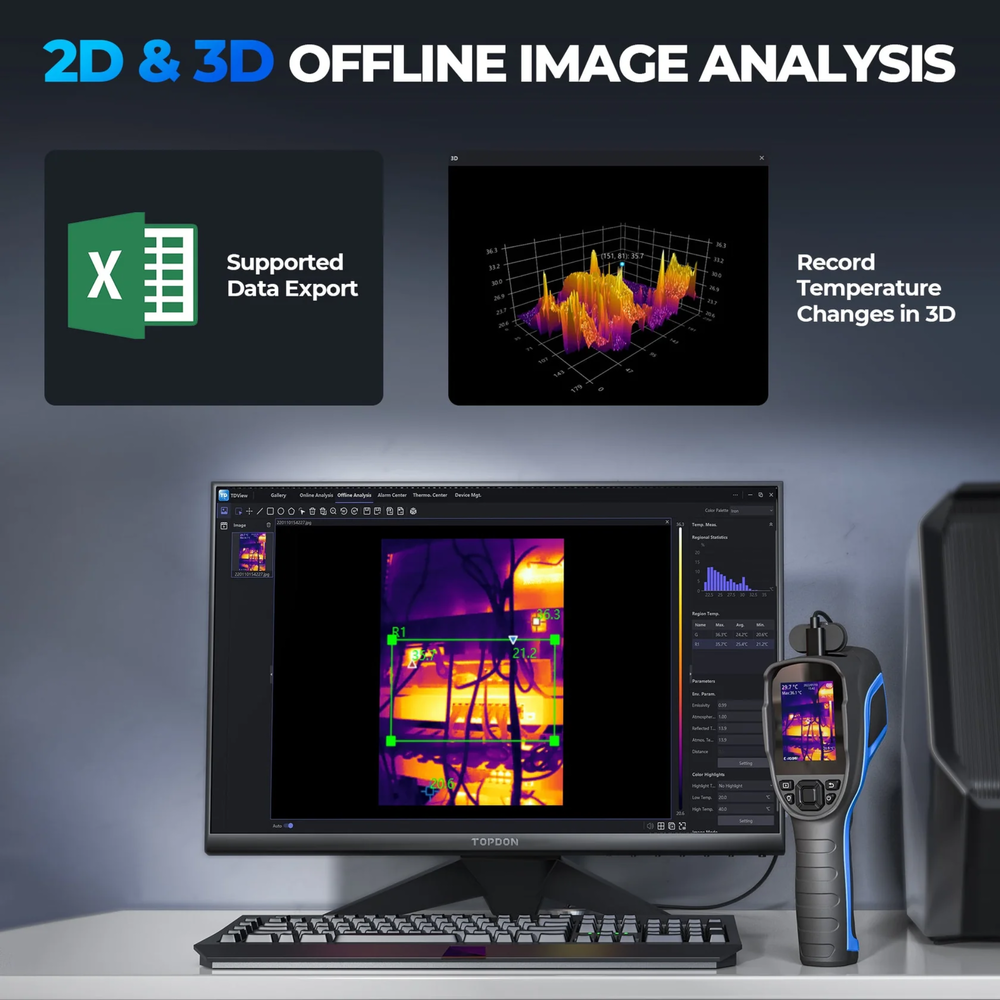

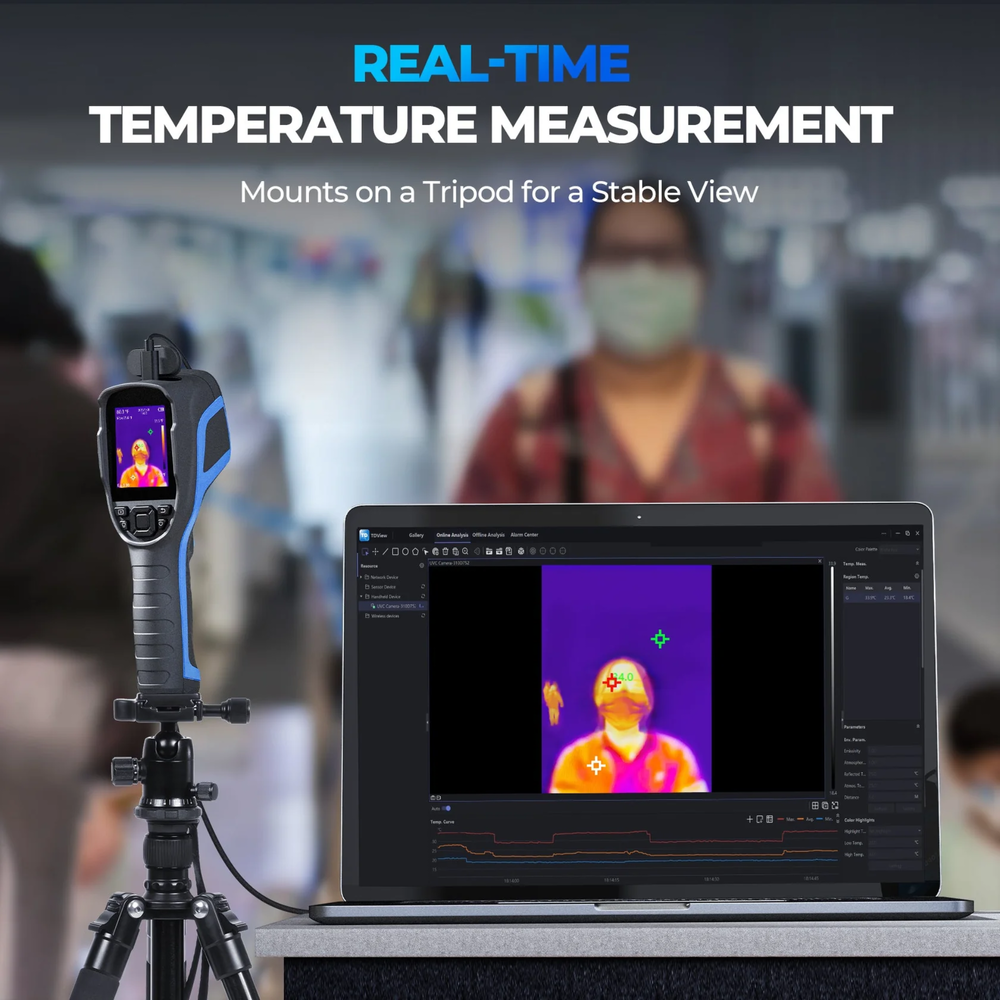

Professional PC Analysis & Screen Projection – Enables seamless data transfer, in-depth analysis, and real-time projection on a computer for reporting and diagnostics.

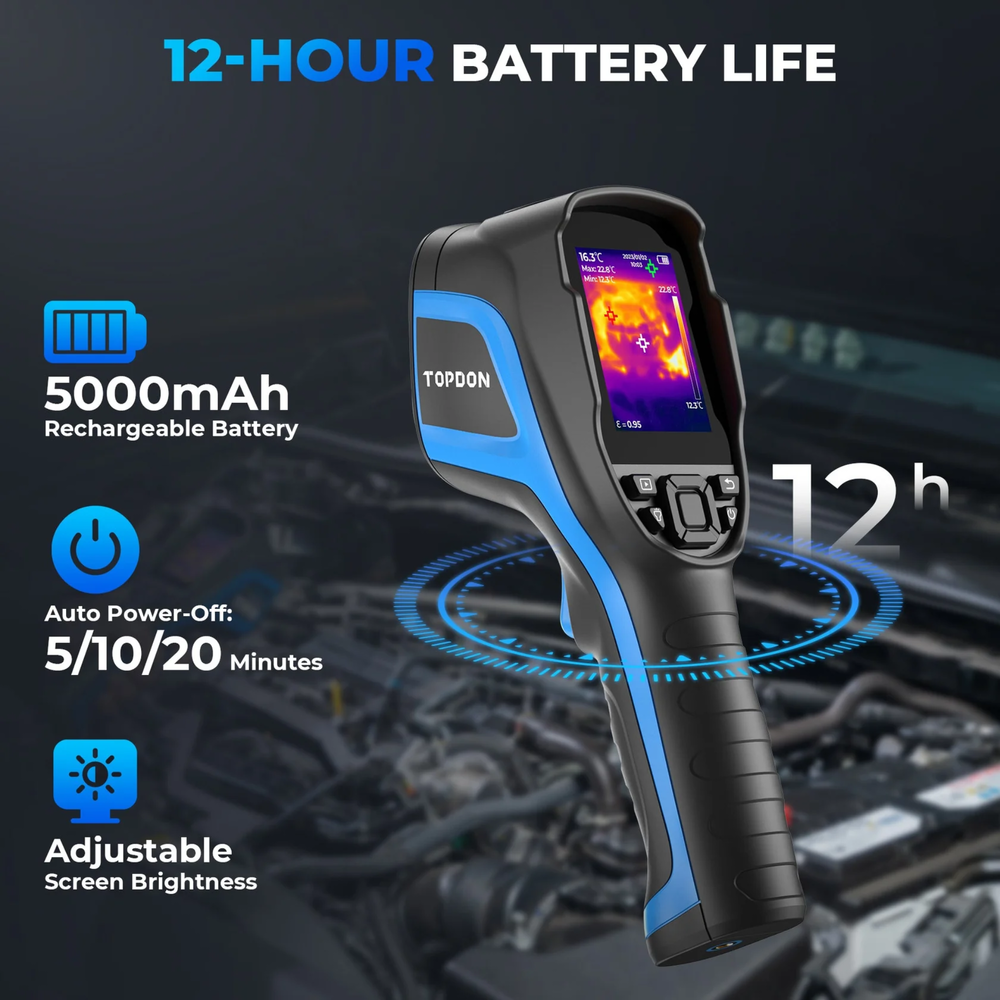

Long-Lasting Battery Performance – Equipped with a high-capacity battery that supports up to 12 hours of continuous operation for extended field use.
Integrated LED Work Light – Includes a built-in LED light to support inspections in low-light or dark environments without requiring additional equipment.
Rugged Industrial Design – Built with IP54-rated protection against dust and water, along with 2-meter drop resistance for reliable performance in demanding conditions.

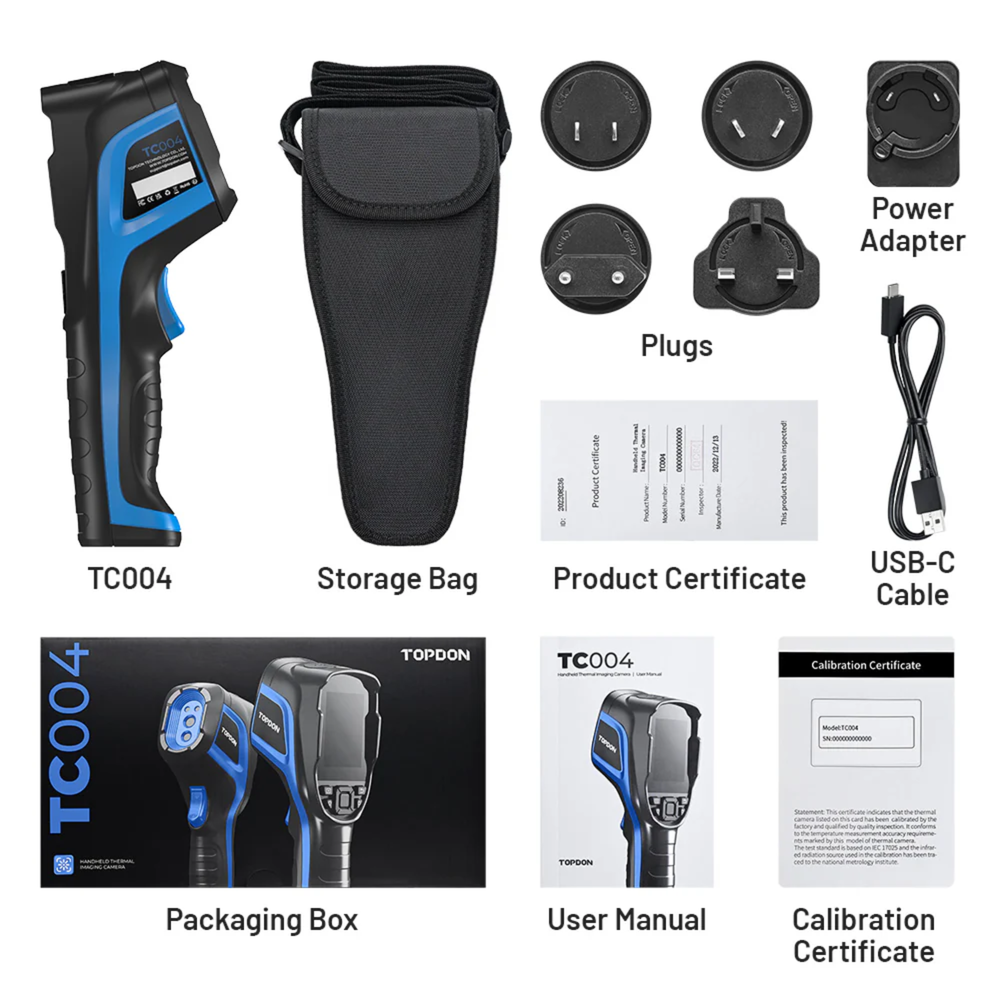

Package Includes

TC004 Thermal Camera
Power Adapter
Plugs
USB Data Cable
Calibration Certificate
Product Certificate
User Manual
Storage Bag
Package Box

Advanced Thermal Imaging Performance & Reliability

Advanced TISR technology enhances thermal resolution to 320×240 for improved image clarity

Three measurement modes: center point, hot spot, and cold spot detection

Automatic temperature anomaly detection for faster diagnostics

Wide 52.5° × 39.5° field of view for comprehensive inspection coverage

Temperature measurement range from -20°C to +350°C

High accuracy of ±2°C for reliable readings

<40mK thermal sensitivity for detecting minimal temperature differences

25Hz refresh rate ensures smooth real-time imaging

PC software for data analysis, reporting, and screen projection

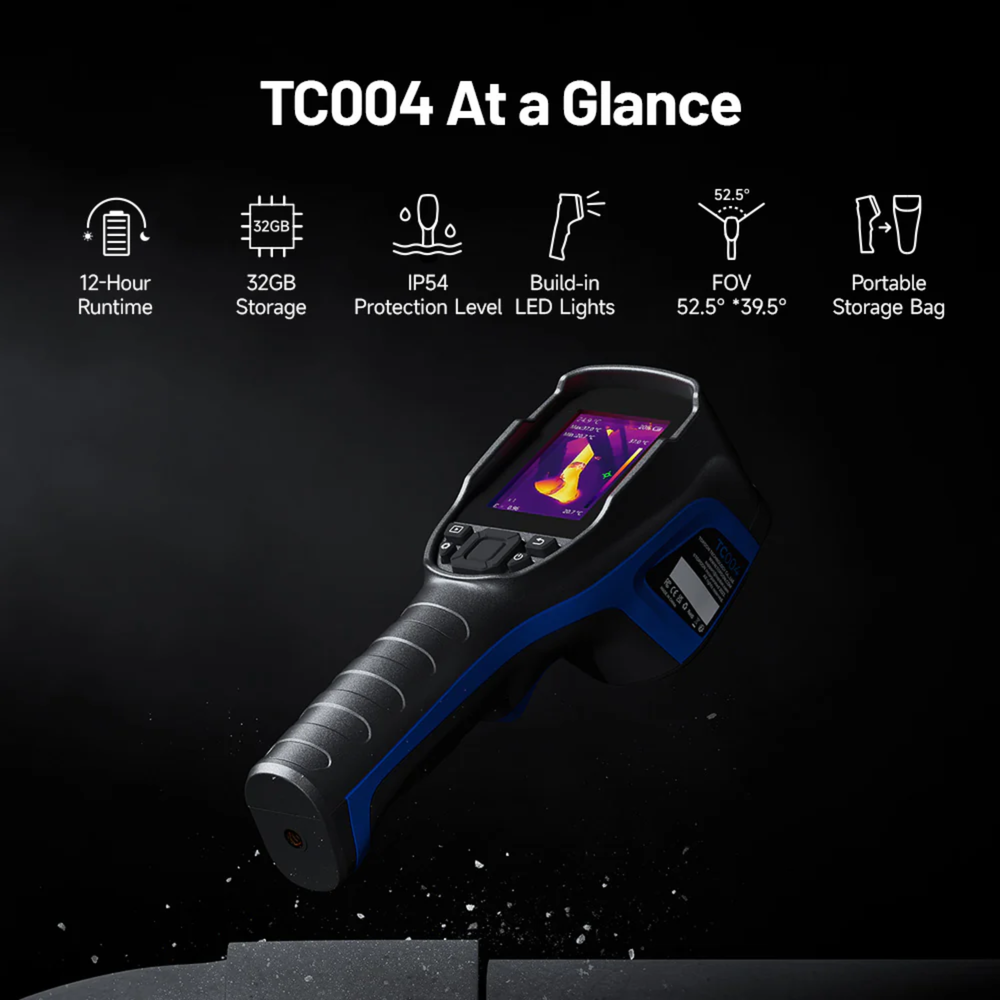

Up to 12-hour continuous runtime with integrated battery

Built-in LED light for low-light working environments

Rugged IP54-rated design with 2m drop resistance

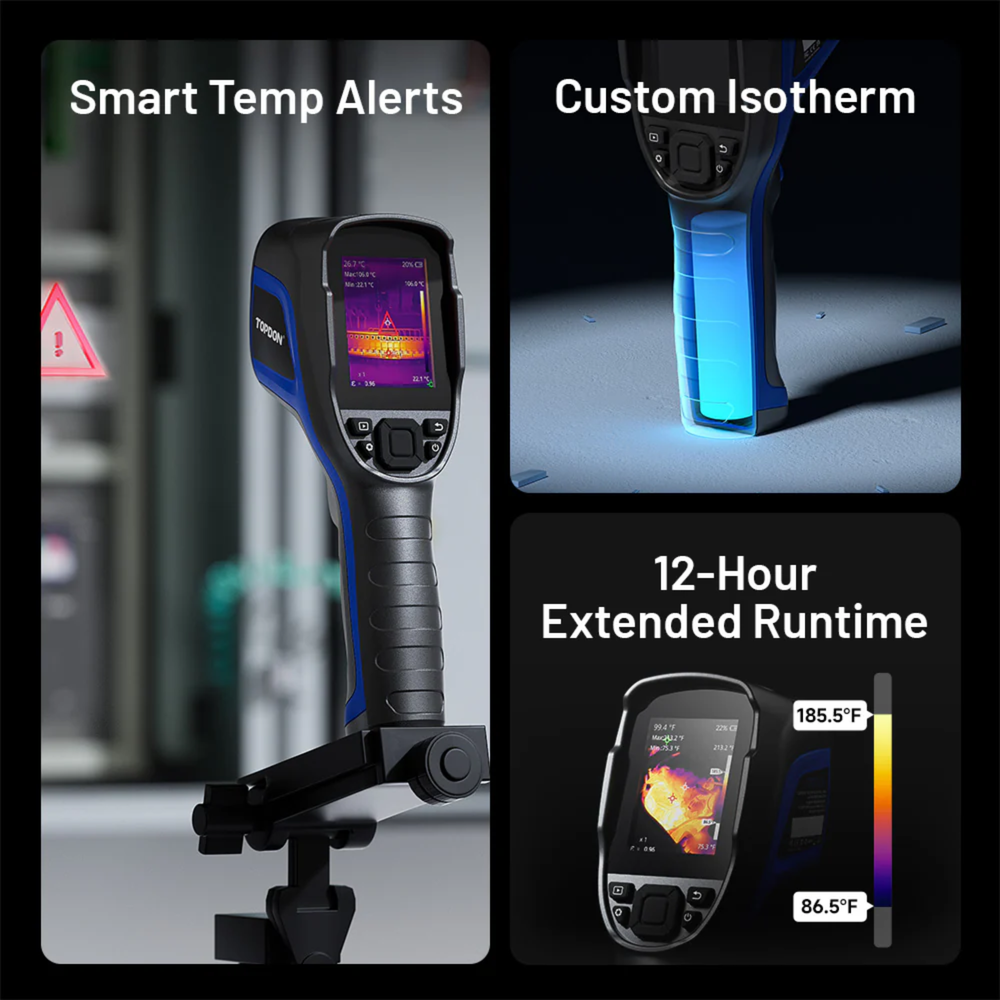

TOPDON TC004 handheld IR camera with LED light active

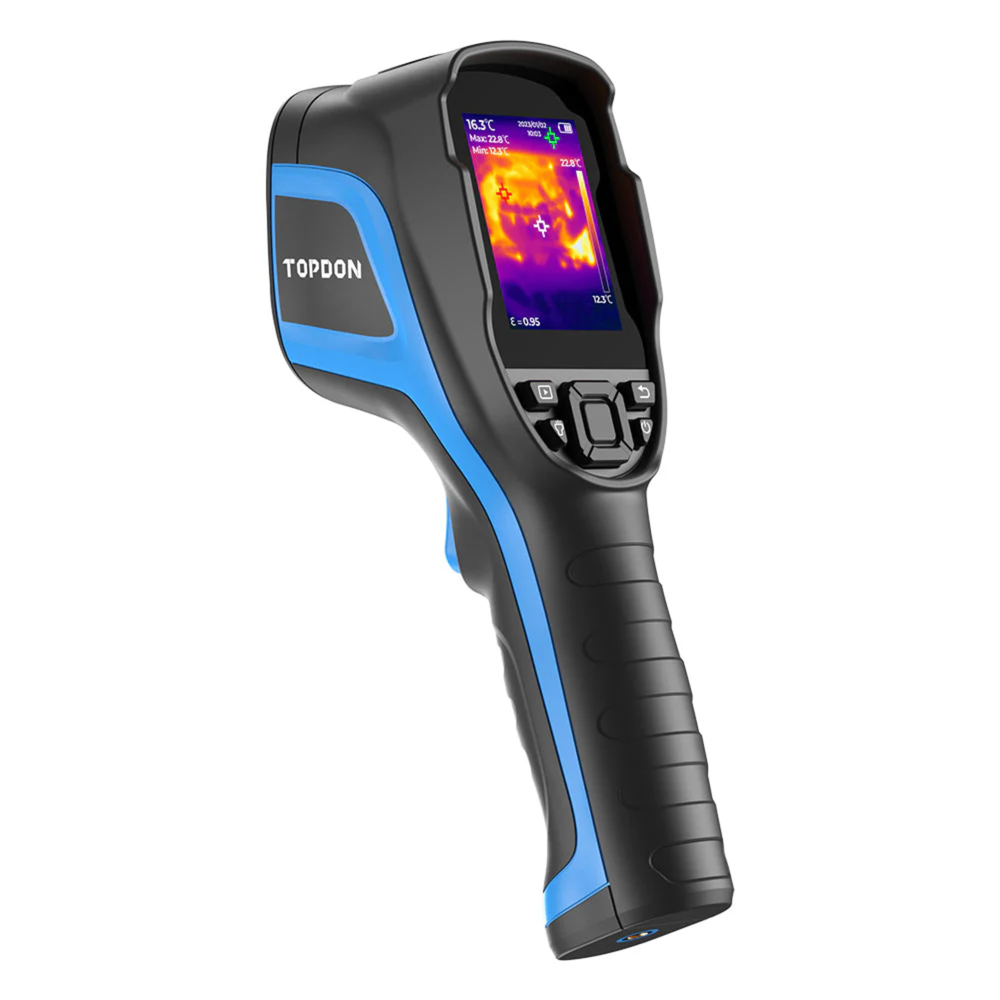

TOPDON TC004 Thermal Imaging Camera

Model: TC004

LWH: 9.45” x 2.76” x 3.54” (240 x 70 x 90mm)

Weight: 18.3 oz (520g)

Storage Temp: 14°F to 131°F (-10 to +55℃)

Working Temp: 14°F to 122°F (-10 to +50℃)

Screen Size: 2.8-inch Display (7.1 cm)

Resolution: 256 x 192 Pixels

TISR Resolution: 320 x 240 Pixels

Object Temp. Range: -4°F to +662°F (-20 to 350℃)

Spectral Range: 8 – 14μm

Image Frequency: 25Hz

FOV: 52.5° x 39.5°

Focal Length: 0.12 in. (3.2 mm)

Heat Sensitivity: <40mk

Memory Card: 32G
