TOPDON TC004 Lite Thermal Camera

TOPDON TC004 Lite Professional Thermal Imaging Camera

Handheld Infrared Inspection Device

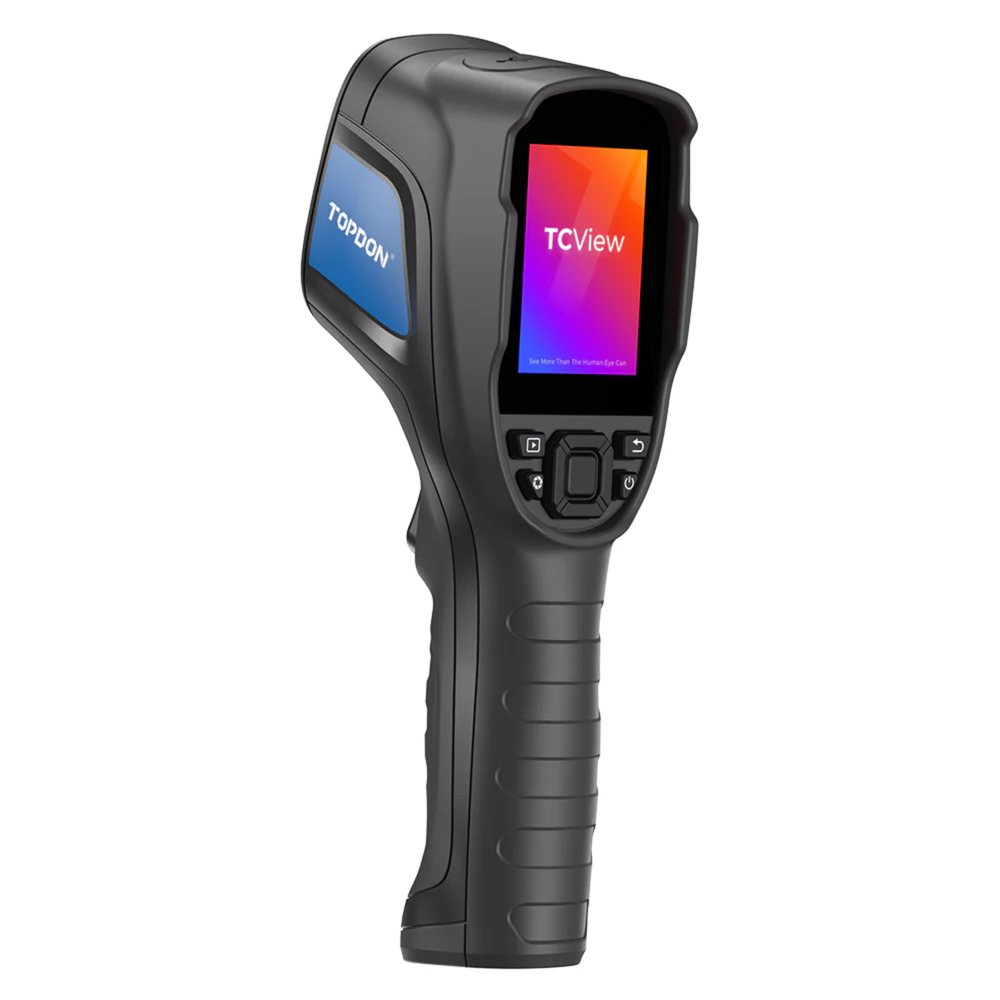

The TOPDON TC004 Lite Thermal Imaging Camera is a precision-engineered handheld diagnostic tool designed for industrial, electrical, and automotive inspection environments. Featuring a 160×120 thermal resolution and a wide temperature range of -20°C to 550°C, it delivers accurate thermal analysis in real time. Its 2.8-inch display ensures clear visualization, while the compact, rugged design supports demanding field use. With extended battery life and multi-level zoom capabilities, it enables efficient fault detection, preventive maintenance, and performance analysis across multiple sectors.

The TOPDON TC004 Lite Thermal Imaging Camera is a precision-engineered handheld diagnostic tool designed for industrial, electrical, and automotive inspection environments.

Main Features

160×120 Thermal Resolution – Delivers reliable thermal imaging clarity, enabling accurate identification of heat patterns, anomalies, and hidden faults across electrical, mechanical, and structural systems.

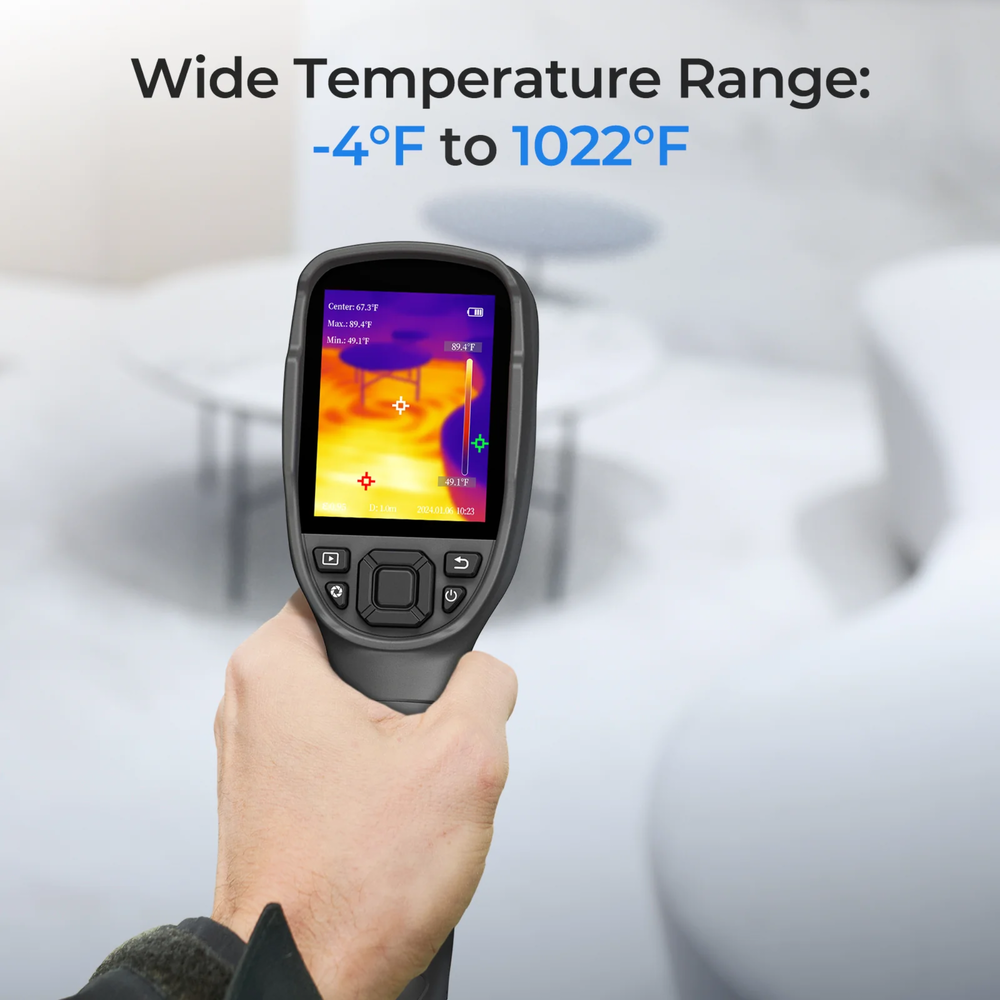

Wide Temperature Measurement Range (-20°C to 550°C) – Supports a broad spectrum of inspection applications, from low-temperature diagnostics to high-heat industrial environments, ensuring versatility across multiple sectors.

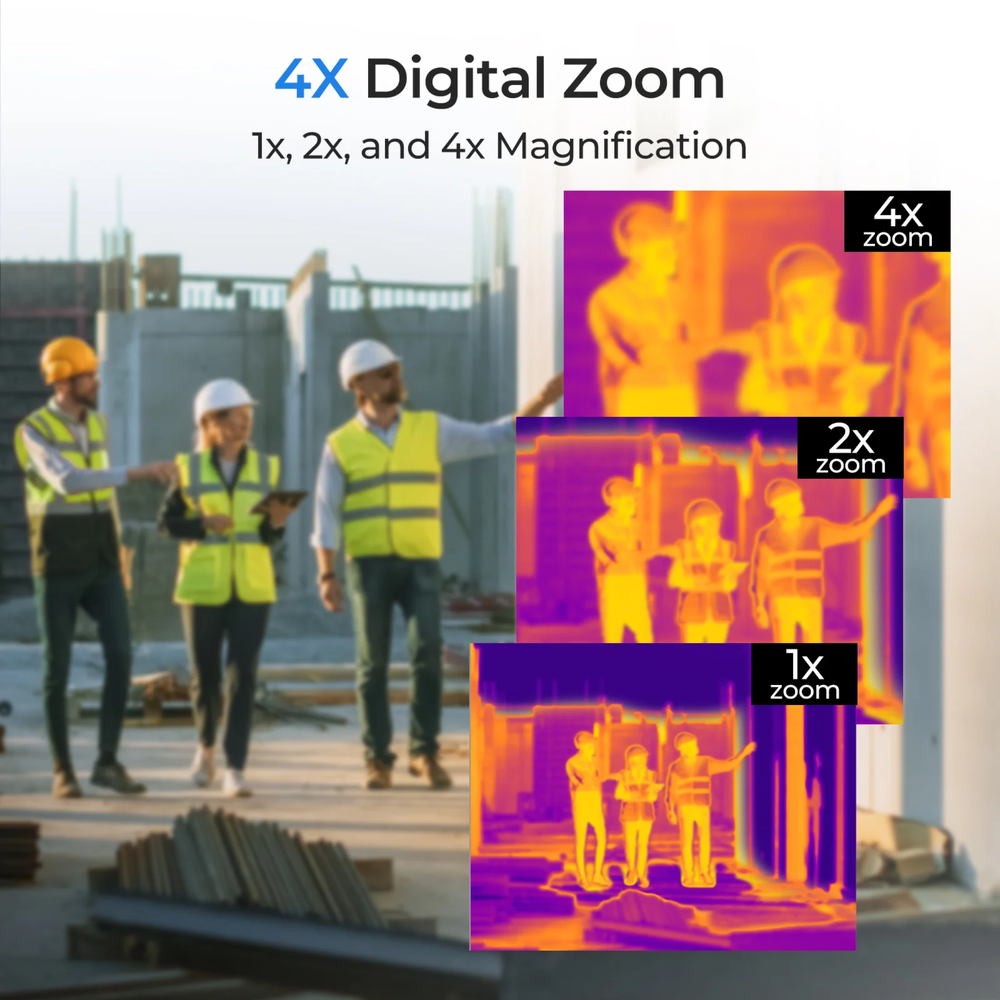

Multi-Level Digital Zoom (1x / 2x / 4x) – Provides flexible viewing options, allowing users to transition from full-scene analysis to detailed close-up inspection without compromising thermal visibility.
2.8” High-Definition Display – Features a clear and responsive screen that enhances real-time thermal visualization, making it easier to interpret temperature variations and identify problem areas quickly.

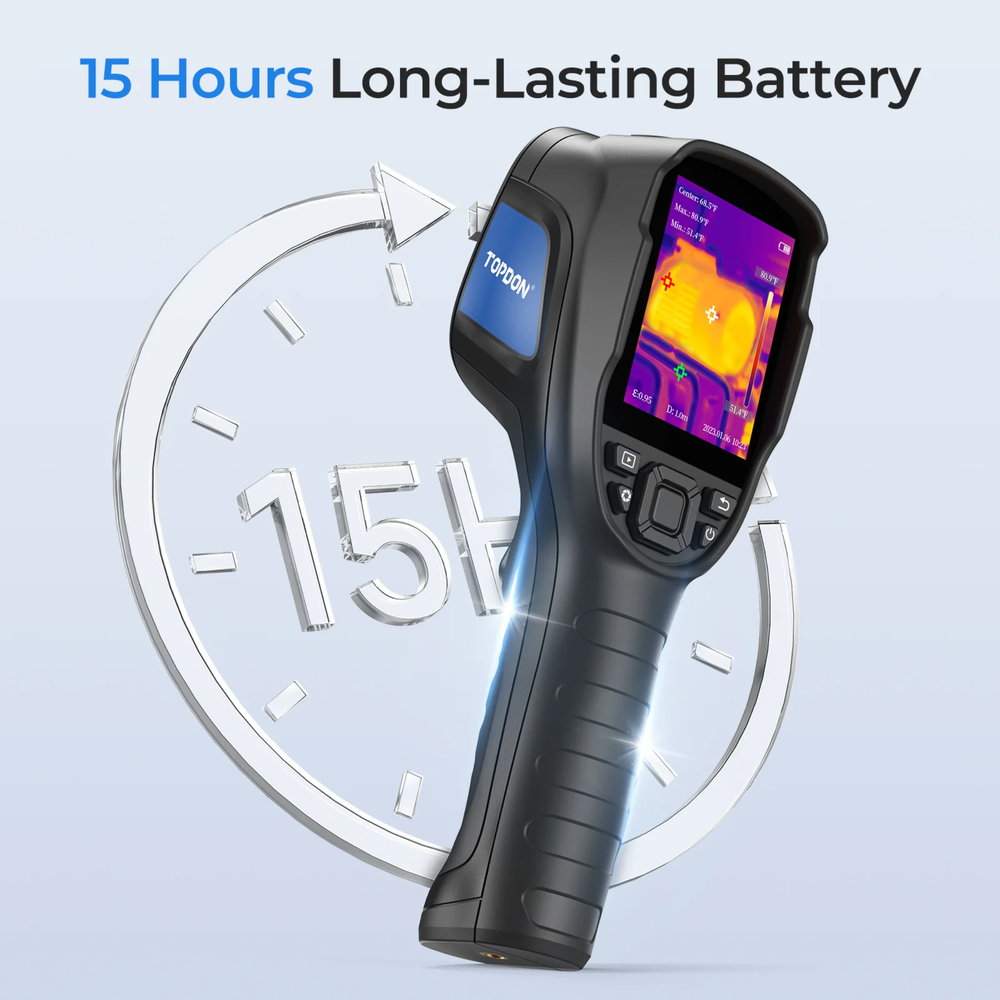

Extended 15-Hour Battery Runtime – Equipped with a high-capacity 2900mAh battery, enabling uninterrupted operation throughout extended inspection tasks without frequent recharging.
Wide 40° x 30° Field of View – Captures larger inspection areas in a single frame, improving workflow efficiency and reducing the need for constant repositioning during diagnostics.
High Thermal Sensitivity (NETD <40mK) – Detects minimal temperature differences with precision, ensuring accurate diagnostics and improved detection of subtle thermal inconsistencies.
IP54-Rated Protection – Engineered with dust and water resistance to maintain reliable performance in challenging environments, including workshops, job sites, and outdoor conditions./li>
2-Meter Drop Resistance – Built with a rugged housing designed to withstand accidental drops, enhancing durability and ensuring consistent performance in demanding field applications.
Compact and Portable Design – Lightweight and ergonomically designed for easy handling, allowing technicians to carry and operate the device comfortably across various inspection scenarios.

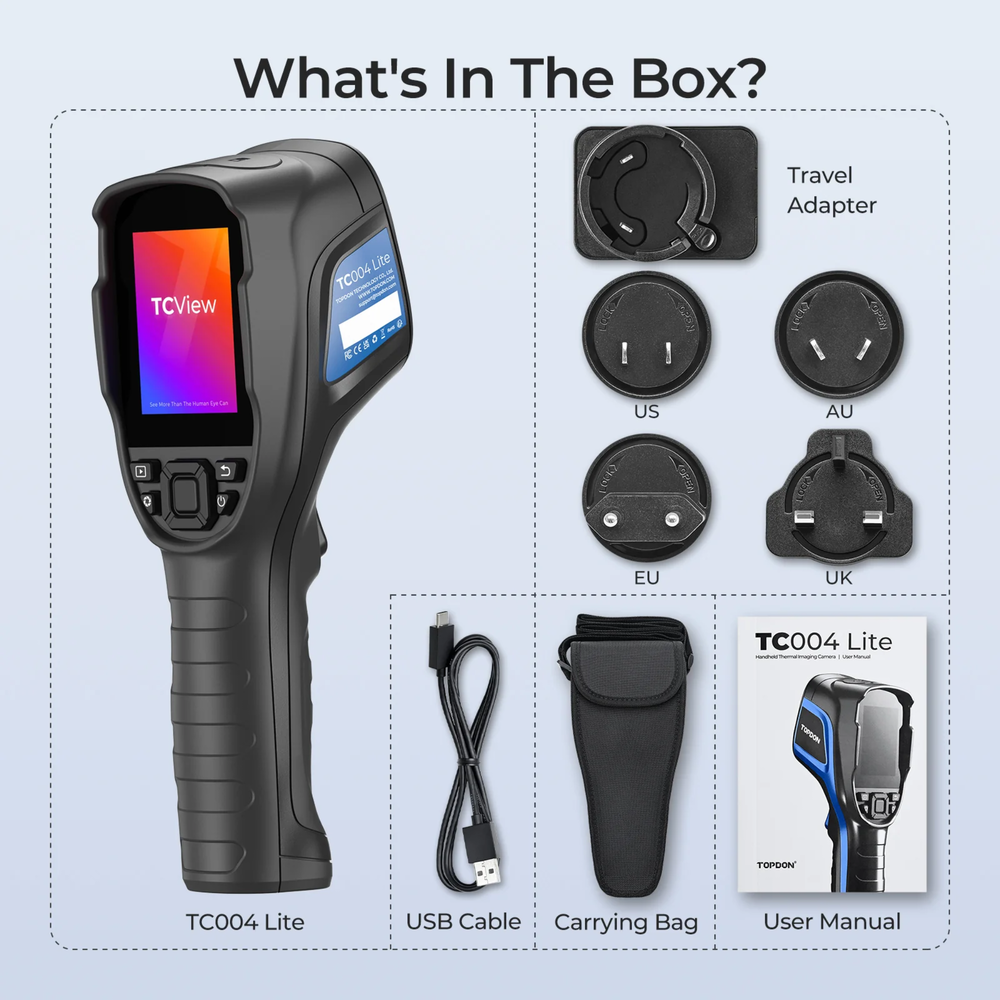

Package Includes

Thermal Camera
Storage Bag
USB Data Cable
5V3A Charger
User Manual
Calibration Certificate
Product Certificate

Advanced Thermal Imaging Capabilities for Precision Diagnostics

160×120 Thermal Resolution for accurate heat detection

Wide Temperature Range (-20°C to 550°C) for diverse applications

Multi-Level Zoom (1x / 2x / 4x) for detailed inspection

2.8” High-Definition Display for clear thermal visualization

15-Hour Battery Runtime for extended field operations

40° x 30° Wide Field of View for efficient scanning

High Sensitivity (NETD <40mK) for precise readings

IP54 Rated Protection against dust and water

2m Drop Resistance for durability in harsh environments

Compact & Lightweight Design for portability

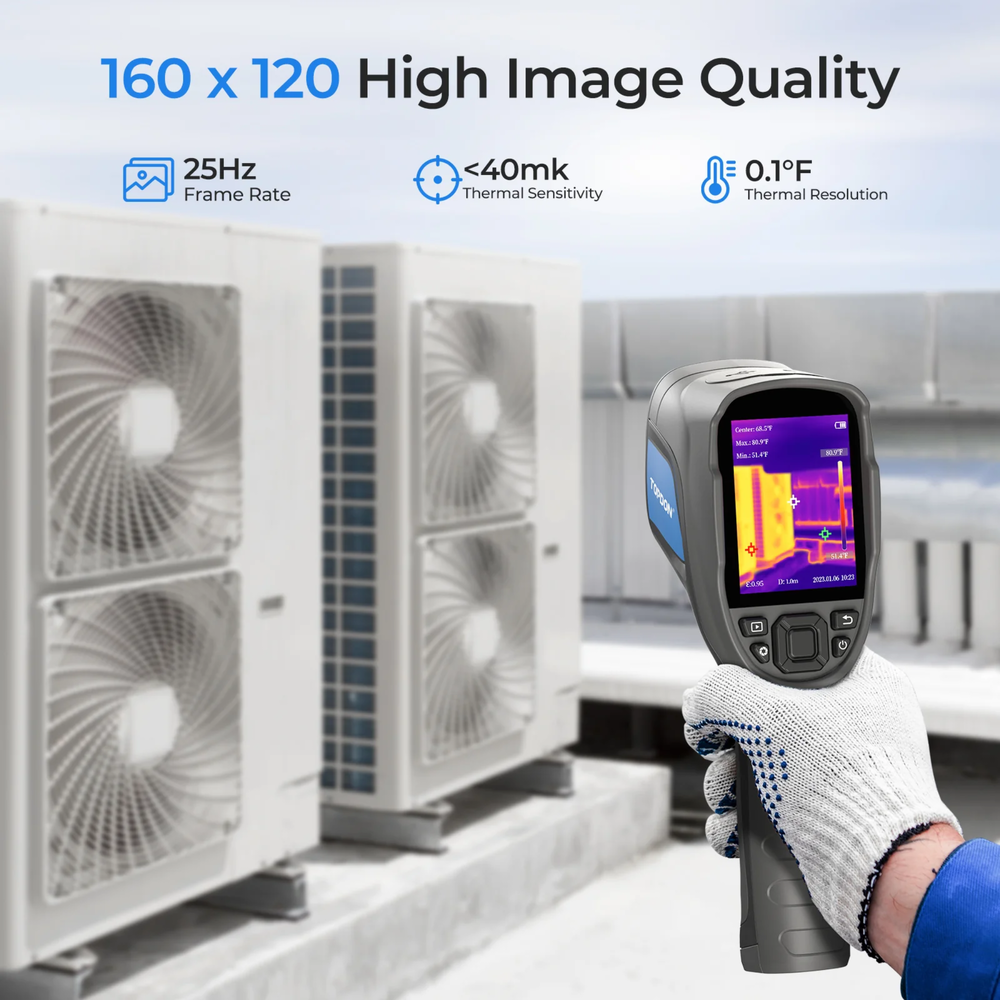

TOPDON thermal imaging device wide temperature range

TOPDON TC004 Lite Thermal Imaging Camera

Model: TC004 Lite

Resolution: 160x120 Pixels

Spectral Range: 8~14 μm

Pixel Size: 12 μm

NETD: < 40 mK

FOV: 40°x30°

IFOV: 4.62 mrad

Storage Capacity: 512 MB

Battery: 2,900 mAh

Temperature Range: -4°to 1,022°F (-20° to 550°C)

Zoom Level: 1x/2x/4x

Measurement Accuracy: ±2°C or ±2% of reading, the larger value shall prevail

Measurement Resolution: 0.18°F (0.1°C)

Length x Width x Height: 9.45” x 2.76” x 3.54” (240 x 70 x 90mm)

Weight: 18.3oz (520g)

Screen Size: 2.8” Display (7.1cm)

Multilingual Support: 13 Languages: English, Chinese (Traditional), Korean, Japanese, French, Spanish, Italian, Portuguese, German, Polish, Russian, Hungarian, Turkish.
