TOPDON TC005 Thermal Imaging Camera

TOPDON TC005 Professional Thermal Imaging Camera

High-Precision Handheld Thermal Inspection Tool

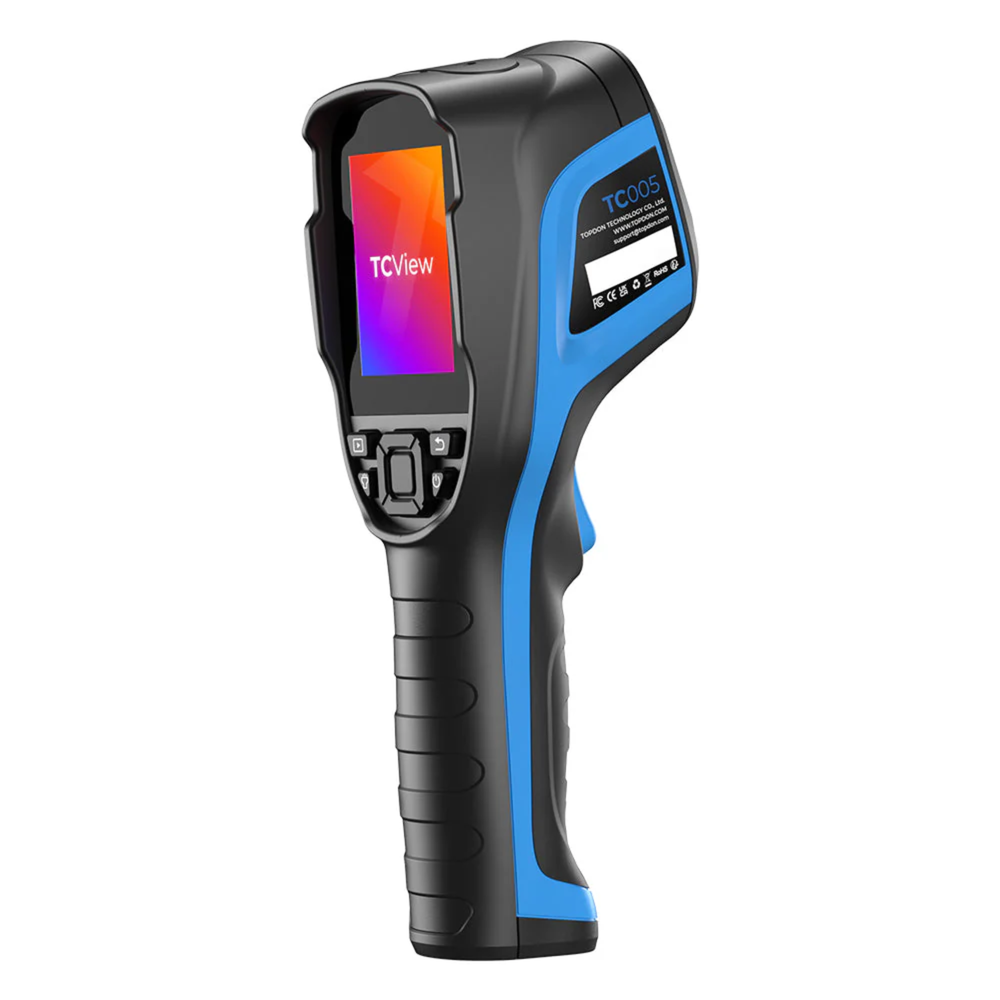

TOPDON TC005 Infrared Thermal Imaging Camera is a professional handheld diagnostic tool designed for precise temperature analysis across a wide range of applications. It features a 256x192 infrared resolution for clear imaging, a measurement range from -20°C to 550°C, and high thermal sensitivity for detecting subtle temperature differences. With dual visible and thermal imaging modes, PC analysis support, and up to 12-hour battery life, it delivers reliable performance for industrial and automotive inspections.

TOPDON TC005 Infrared Thermal Imaging Camera is a professional handheld diagnostic tool designed for precise temperature analysis across a wide range of applications.

Main Features

High-Resolution 256×192 Infrared Imaging – Captures sharp and detailed thermal images, allowing accurate identification of heat variations and ensuring clear diagnostics even in complex inspection environments.
Wide Temperature Measurement Range (-20°C to 550°C) – Supports a broad spectrum of applications from low-temperature system checks to high-heat industrial and automotive diagnostics with consistent accuracy.
High Thermal Sensitivity (≤40mK) – Detects extremely small temperature differences, enabling precise fault detection in electrical systems, mechanical components, and thermal leaks.
56° Wide Field of View (FOV) – Allows users to scan larger areas in a single frame without the need for focal adjustment, improving inspection speed and efficiency.

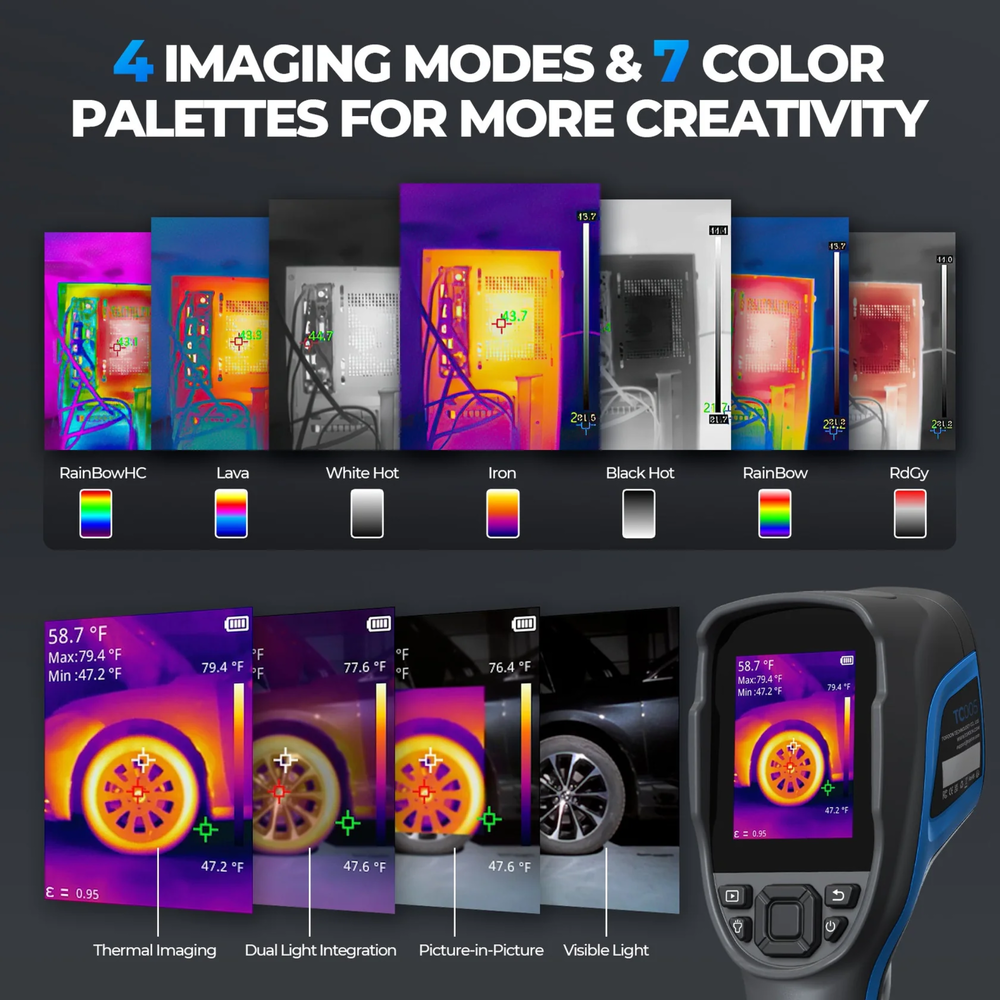

Multiple Imaging Modes (4-in-1 Functionality) – Includes Thermal, Visible Light, Dual Light, and Picture-in-Picture modes to provide flexible viewing options for detailed analysis and comparison.

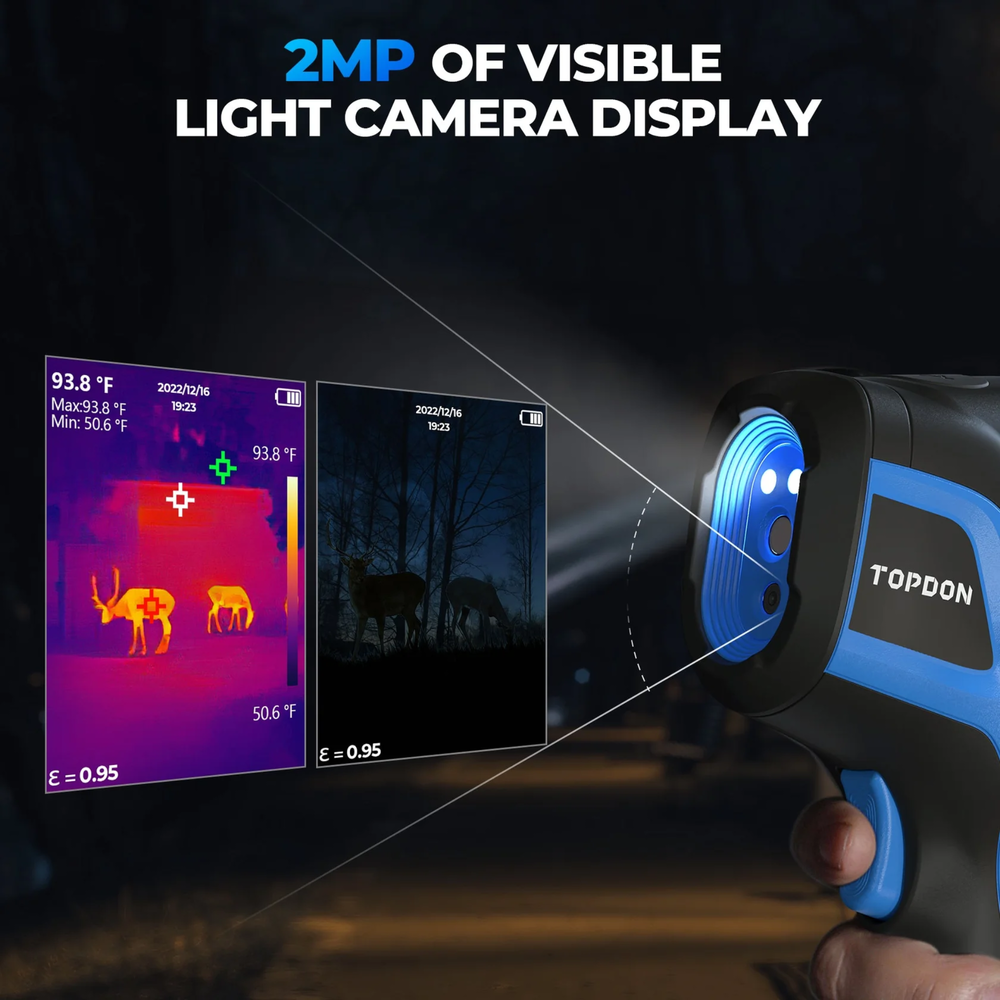

Integrated 2MP Visible Light Camera – Combines real-world imaging with thermal data overlay for clearer interpretation and more accurate diagnostic reporting.
Three-Point Temperature Detection System – Automatically identifies center, hot spot, and cold spot temperatures for fast and efficient thermal analysis during inspections.

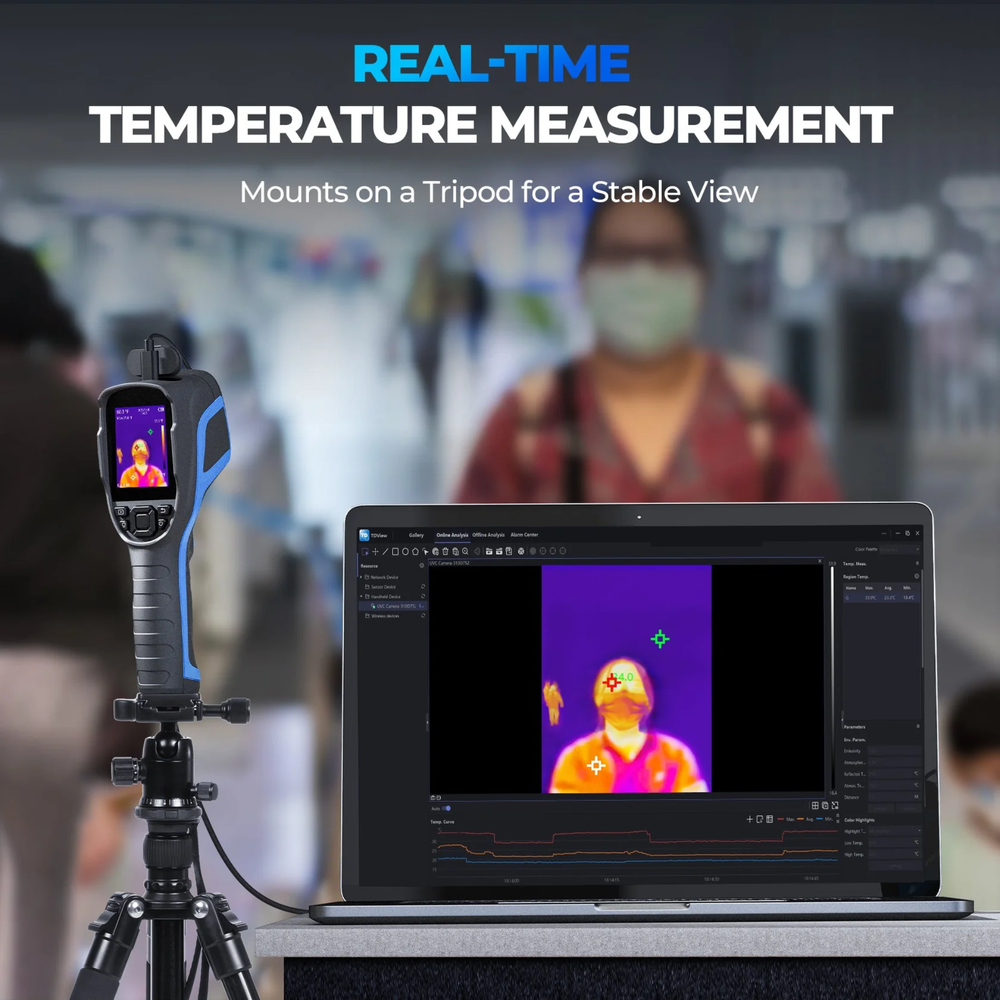

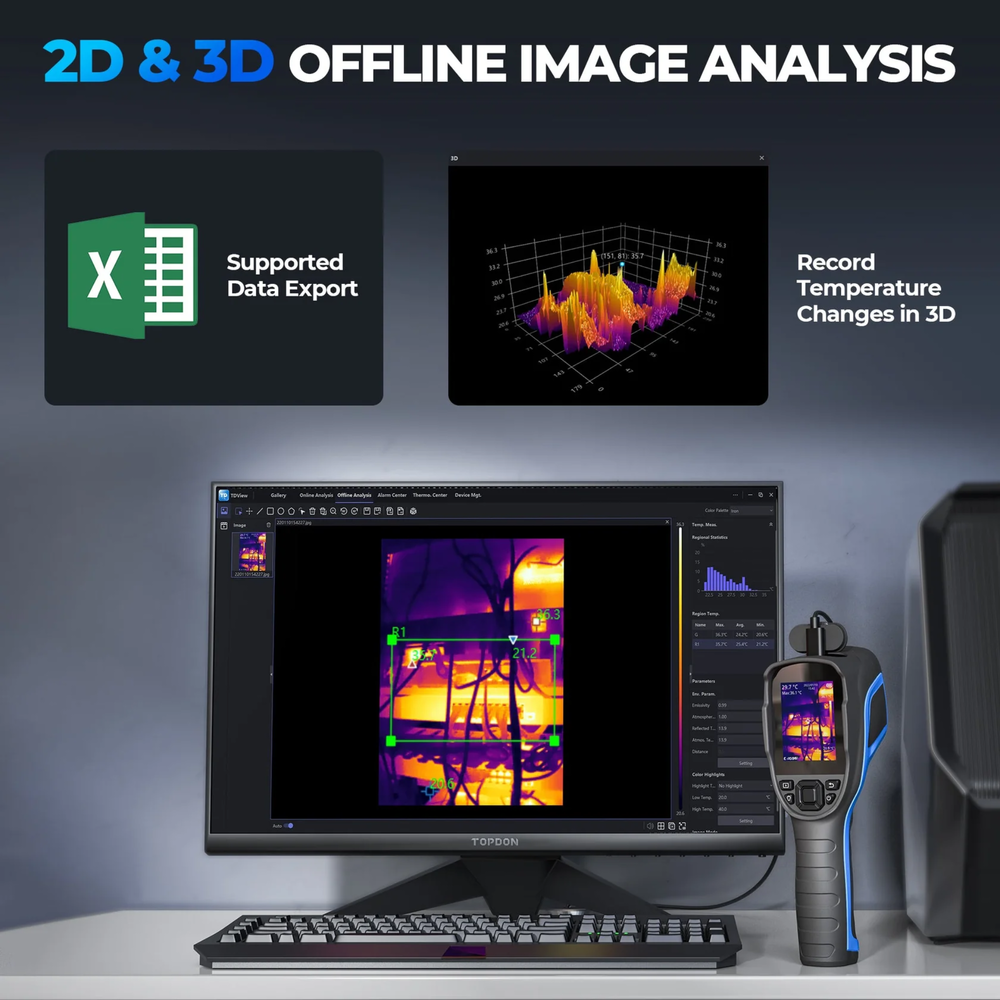

PC Connectivity with Analysis Software Support – Enables users to transfer, store, and analyze thermal images on a computer for advanced diagnostics, reporting, and documentation.

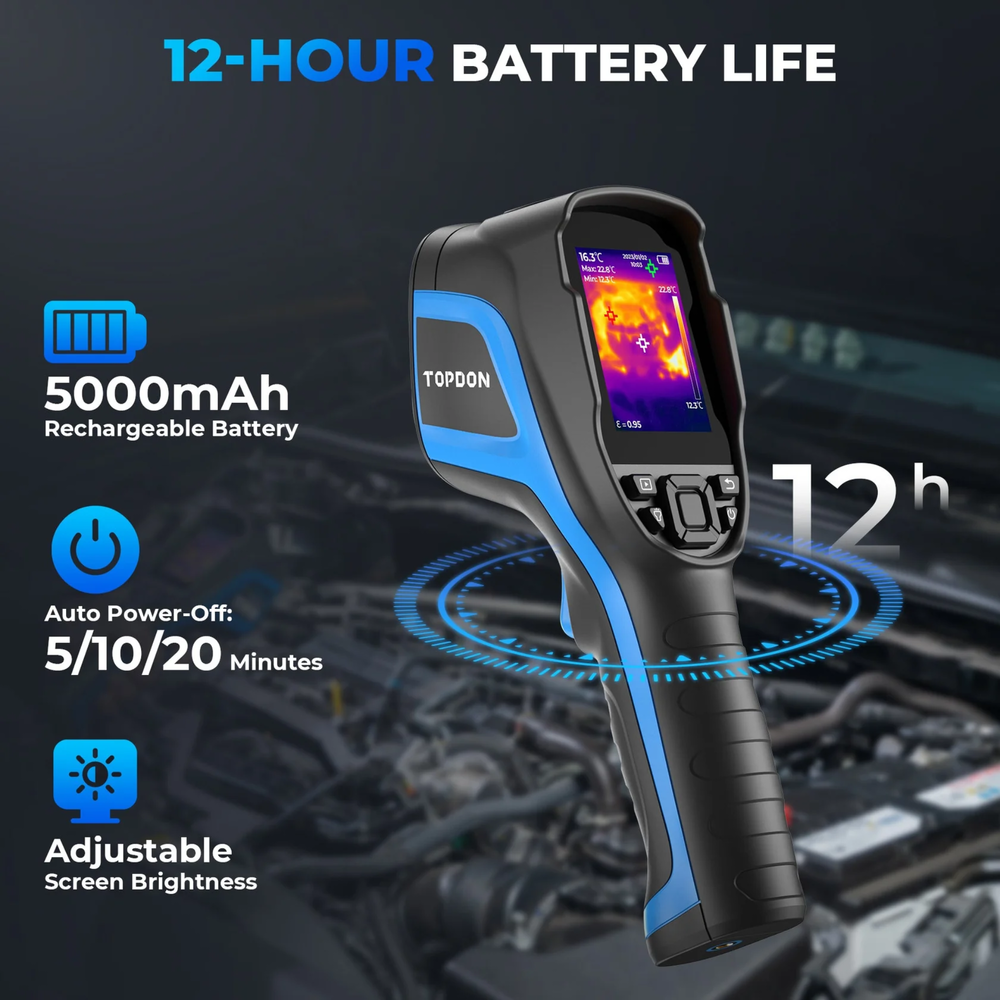

Long-Lasting 12-Hour Battery Performance – Equipped with a high-capacity rechargeable battery designed for extended field use without frequent recharging interruptions.
Rugged IP54 Rated Housing with 2m Drop Resistance – Built to withstand harsh working environments, offering protection against dust, water splashes, and accidental drops for reliable field operation.

Package Includes

TC005 Thermal Camera
16GB Memory Card
USB Data Cable
5V3A Power Adapter
Calibration Certificate
Product Certificate
User Manual
Storage Bag
Package Box

TOPDON TC005 Infrared IR Thermal Imaging Camera

High-resolution 256×192 infrared imaging for clear thermal detail capture

Wide temperature measurement range from -20°C to 550°C

High thermal sensitivity (≤40mK) for detecting minor temperature changes

56° wide field of view for broad area scanning without focal adjustment

Four imaging modes: Thermal, Visible Light, Dual Light, and Picture-in-Picture

Integrated 2MP visible light camera for blended image analysis

Three-point temperature detection: center, hot spot, and cold spot tracking

PC connectivity for data analysis, reporting, and image transfer

12-hour rechargeable battery for extended field operation

IP54-rated housing with 2m drop resistance for durable field use

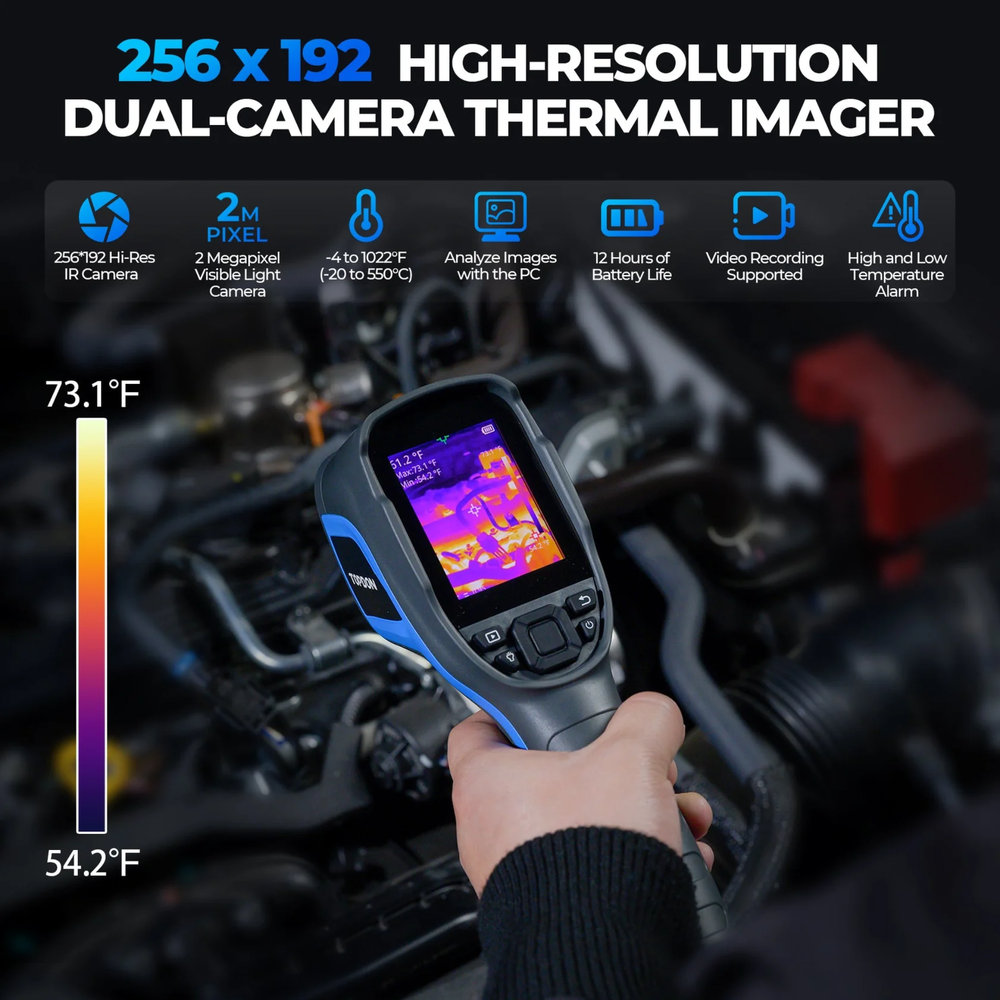

The TC005 delivers precise thermal diagnostics with high-resolution imaging, multiple analysis modes, wide temperature coverage, and strong durability.

Model: TC005

Dimensions: LWH: 9.45” x 2.76” x 3.54” (240 x 70 x 90mm)

Weight: 18.3 oz (520g)

Storage Temp: 14°F to 131°F (-10 to +55℃)

Working Temp: 14°F to 122°F (-10 to +50℃)

Screen Size: 2.8-inch Display (7.1 cm)

Resolution: 256x192 Pixels

Object Temp. Range: -4°F to +1022°F (-20 to 550℃)

Spectral Range: 8 – 14μm

Image Frequency: 20 Hz

Focal Length: 0.12 in. (3.2 mm)

Heat Sensitivity: 40mk
