TOPDON TC004 Mini Thermal Imaging Camera

Compact Thermal Camera for Precision Diagnostics

The TOPDON TC004 Mini Thermal Imaging Camera is a compact, high-performance diagnostic tool engineered for professional inspection across industrial, electrical, and building applications. Featuring advanced TISR enhancement technology, it delivers clear 240×240 thermal imaging for precise fault detection. With a wide temperature range, high sensitivity, and intelligent alert system, it enables rapid identification of overheating components, insulation failures, and hidden leaks. Designed for durability and ease of use, it is an essential handheld solution for accurate thermal analysis.

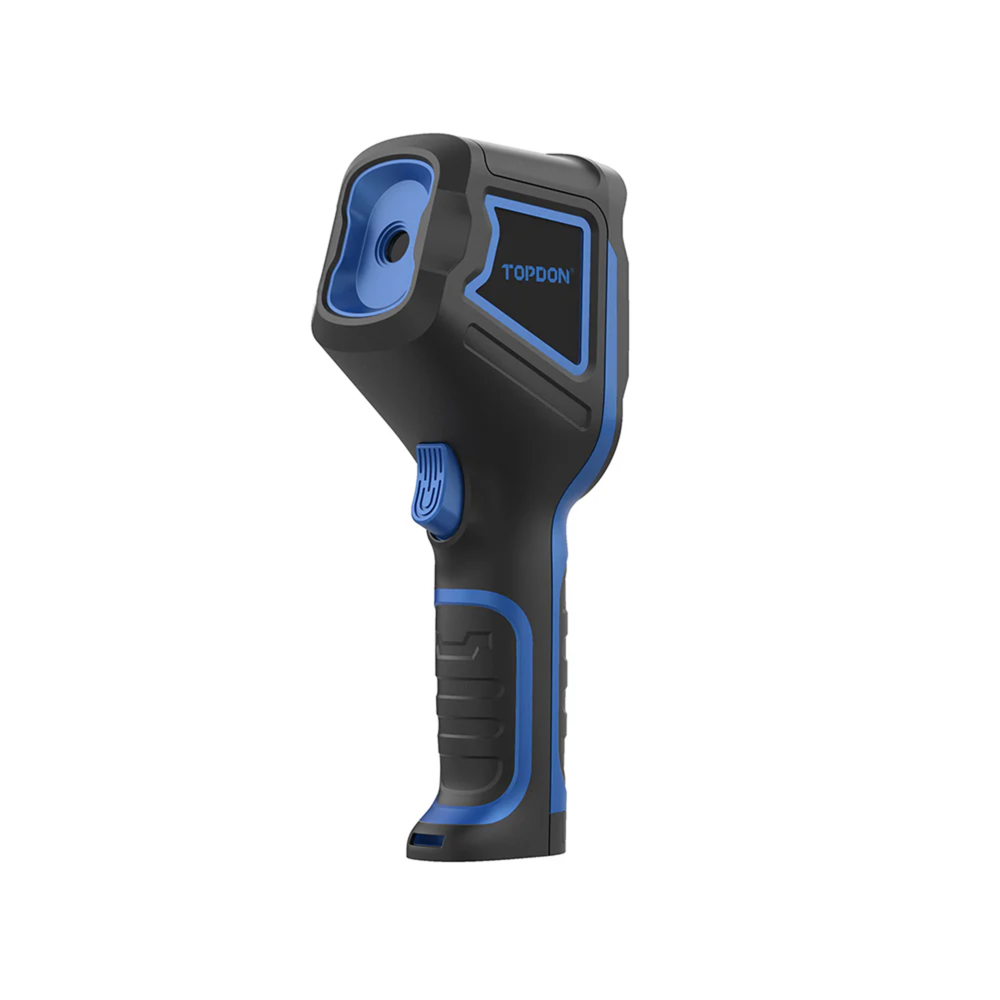

TOPDON TC004 Mini thermal imaging camera handheld device

Main Features

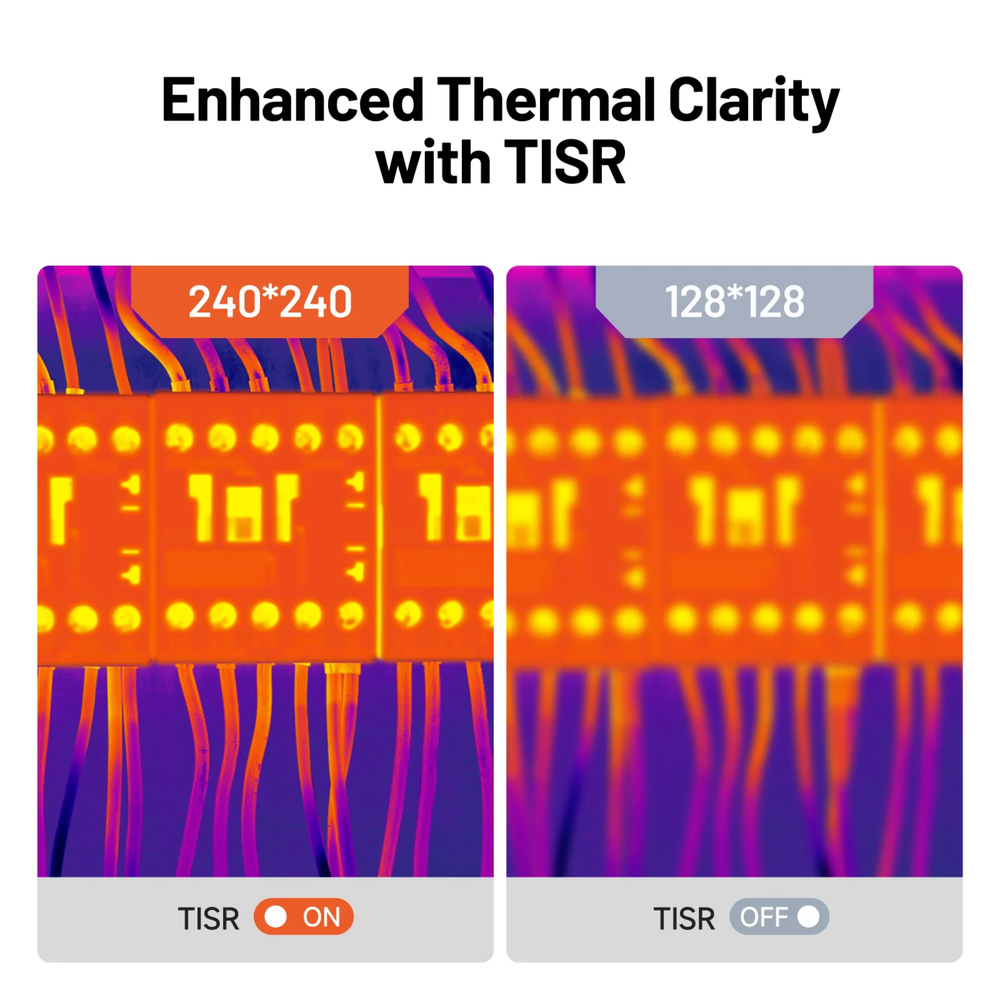

TISR Image Enhancement Technology – Transforms native 128×128 resolution into sharper 240×240 thermal images, delivering improved clarity for more accurate diagnostics.
High 25Hz Refresh Rate Performance – Ensures smooth, real-time thermal imaging, enabling users to capture fast-changing temperature variations without lag or distortion.

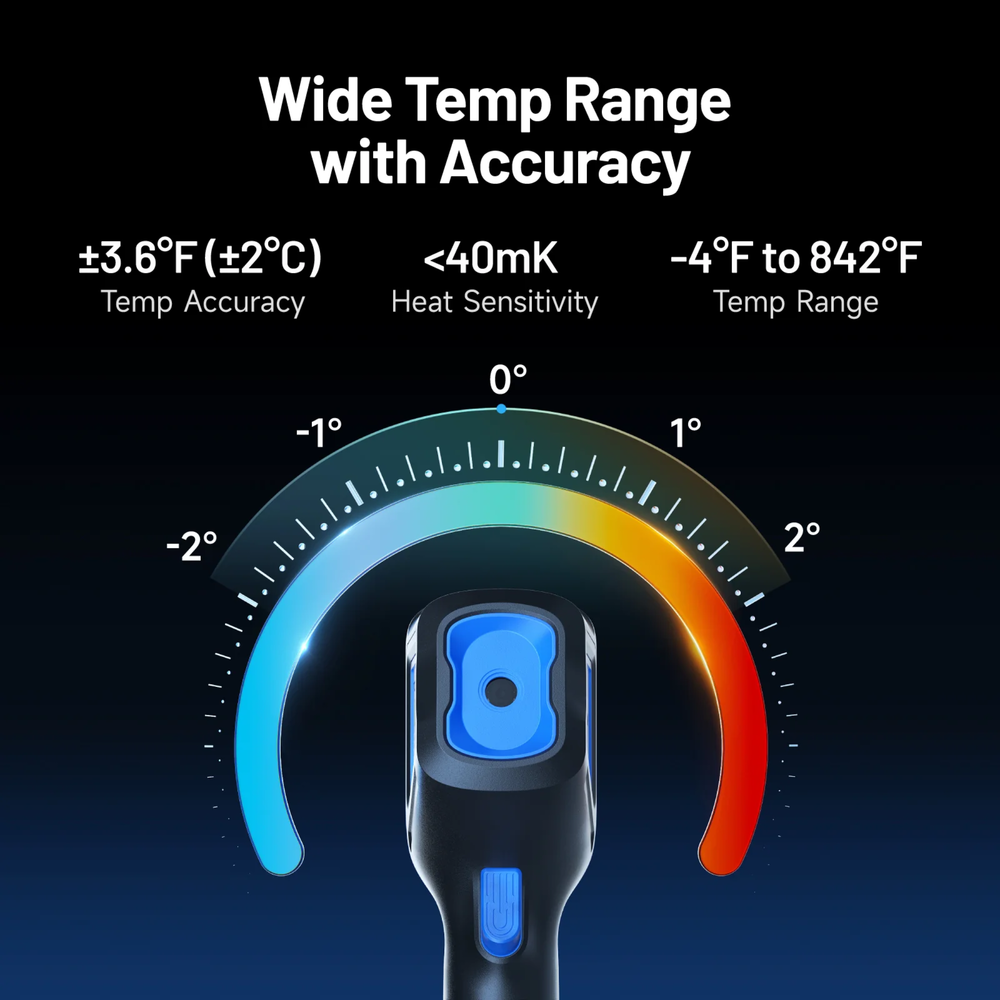

Wide Temperature Measurement Range – Covers -20°C to 450°C, making it suitable for detecting both low-temperature insulation issues and high-temperature industrial faults.
High Thermal Sensitivity (<40mK) – Detects even the smallest temperature differences, allowing precise identification of hidden issues such as moisture, air leaks, or insulation defects.

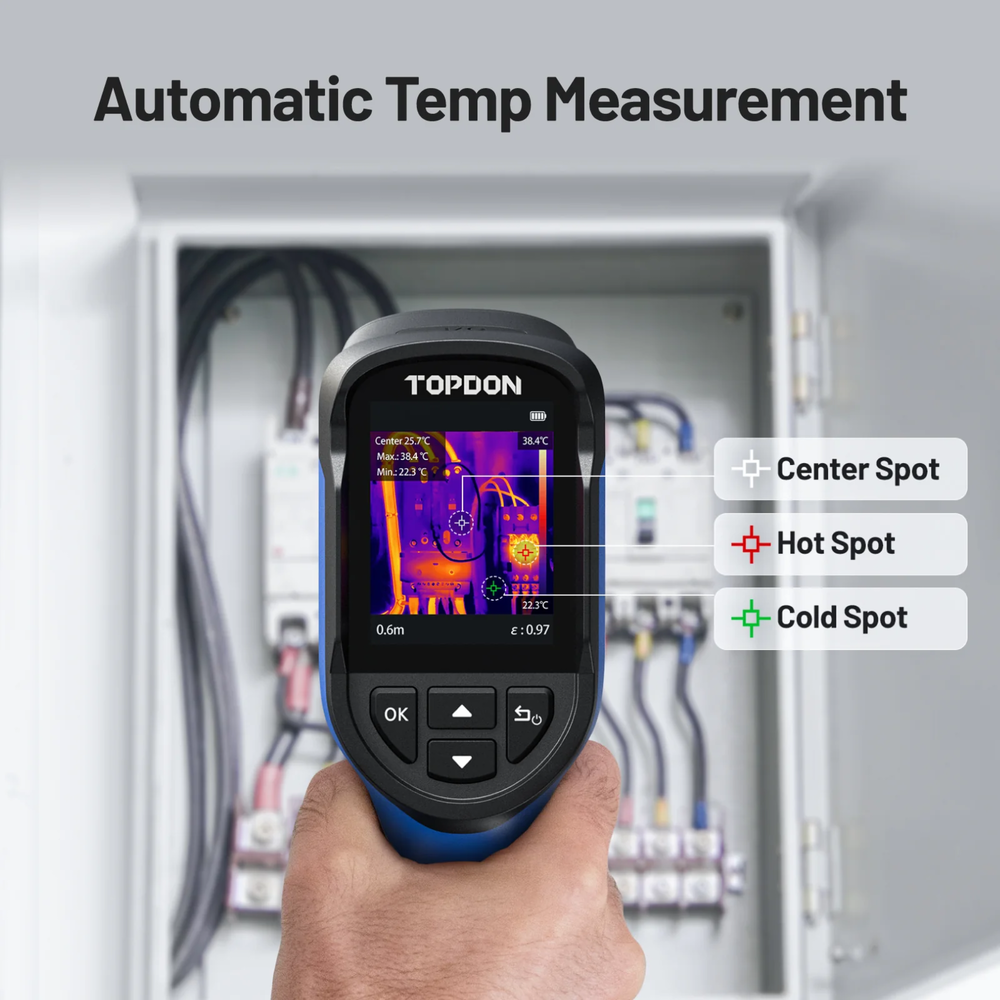

Smart Temperature Detection System – Automatically identifies maximum, minimum, and center temperature points, streamlining diagnostics and improving inspection efficiency.

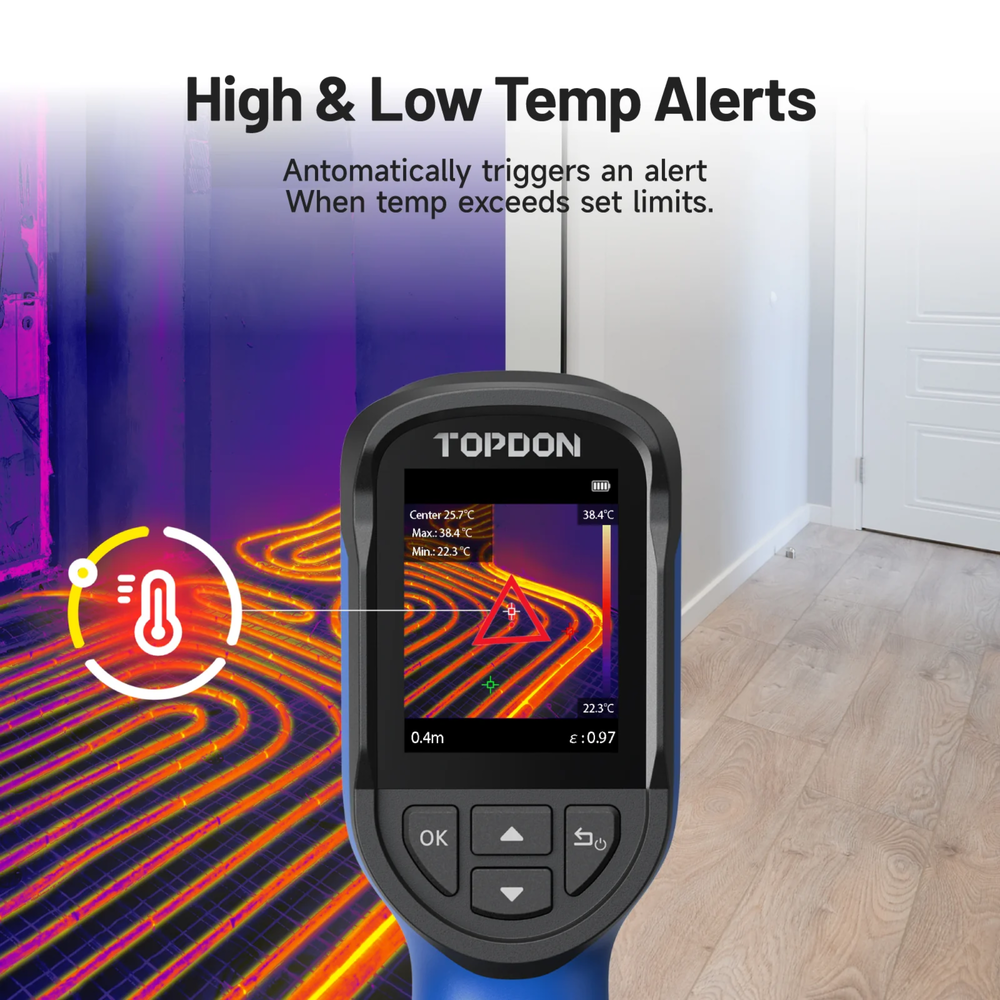

Customizable Temperature Threshold Alerts – Enables users to set upper and lower limits with automatic visual warnings and image capture for quick anomaly documentation.

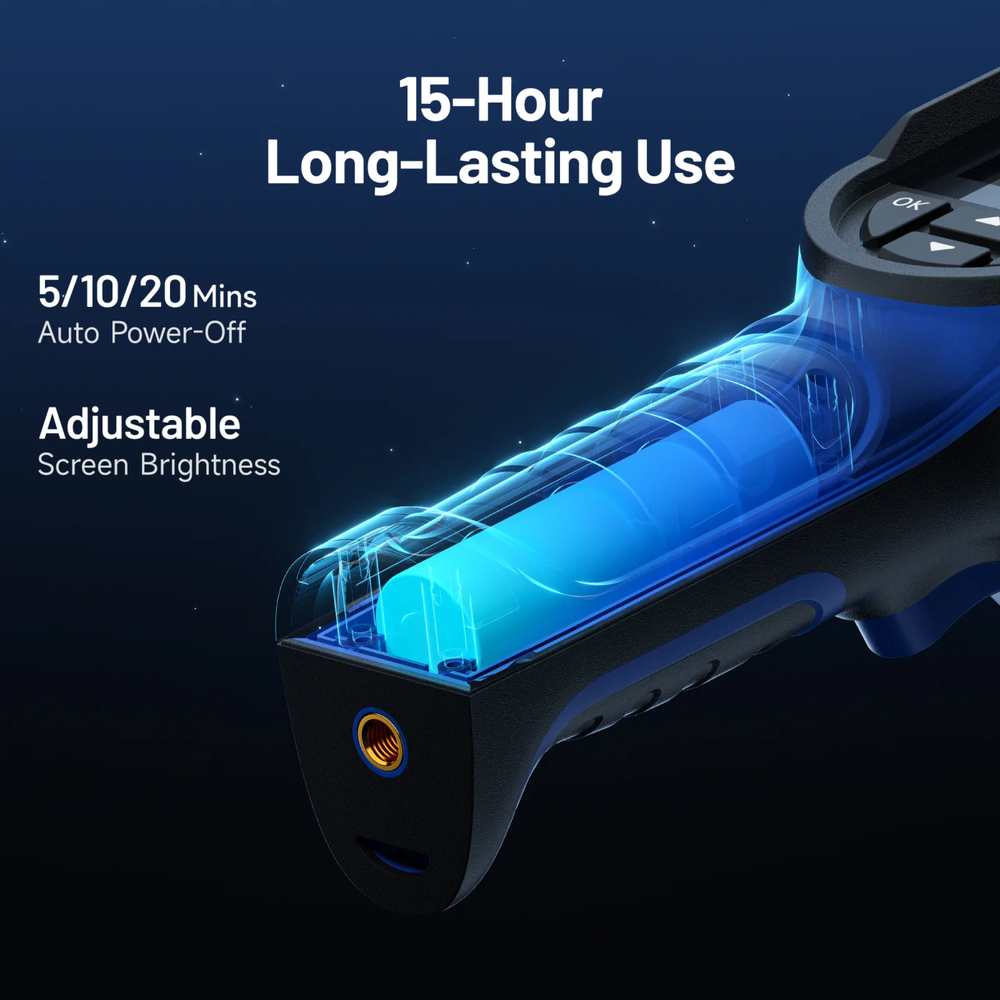

Extended 15-Hour Battery Runtime – Powered by a 2,900mAh battery with adjustable auto shut-off options, ensuring uninterrupted operation throughout long inspection sessions.

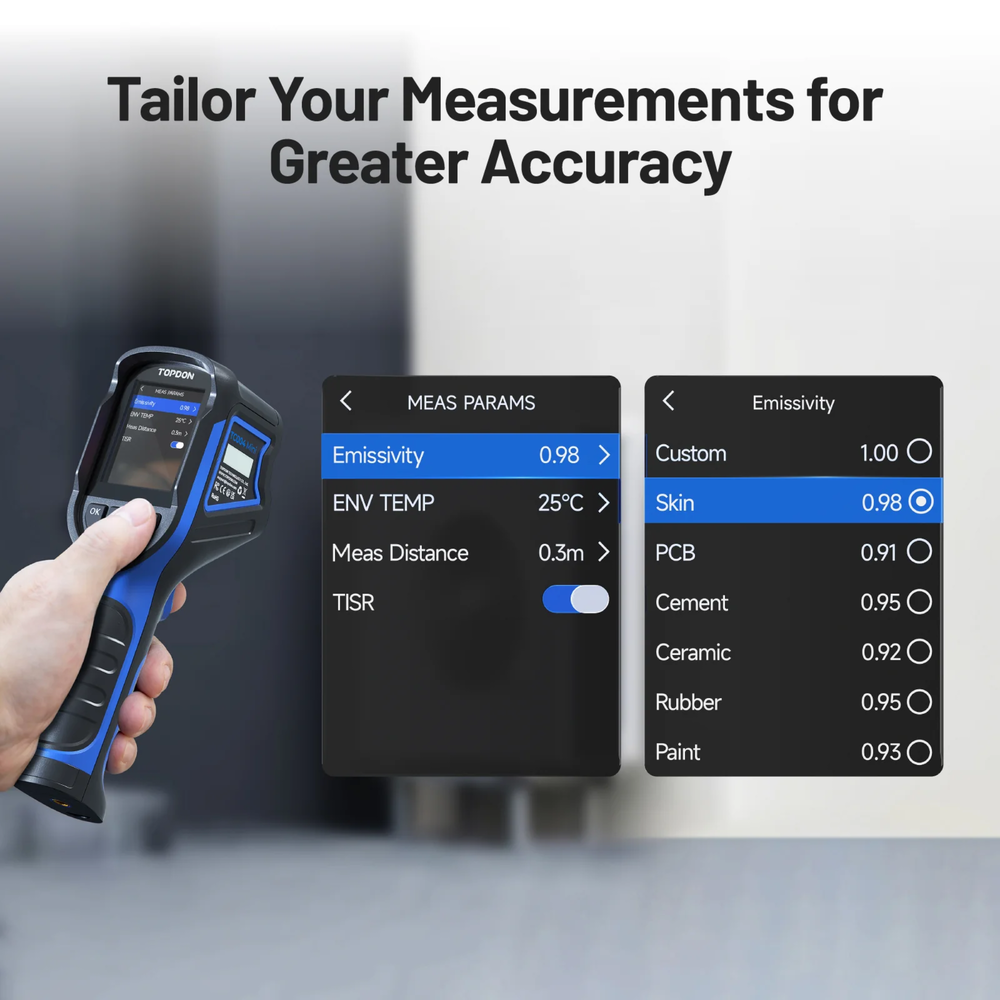

Adjustable Emissivity & Environmental Settings – Allows fine-tuning of emissivity, distance, and ambient temperature for enhanced measurement accuracy across different materials.

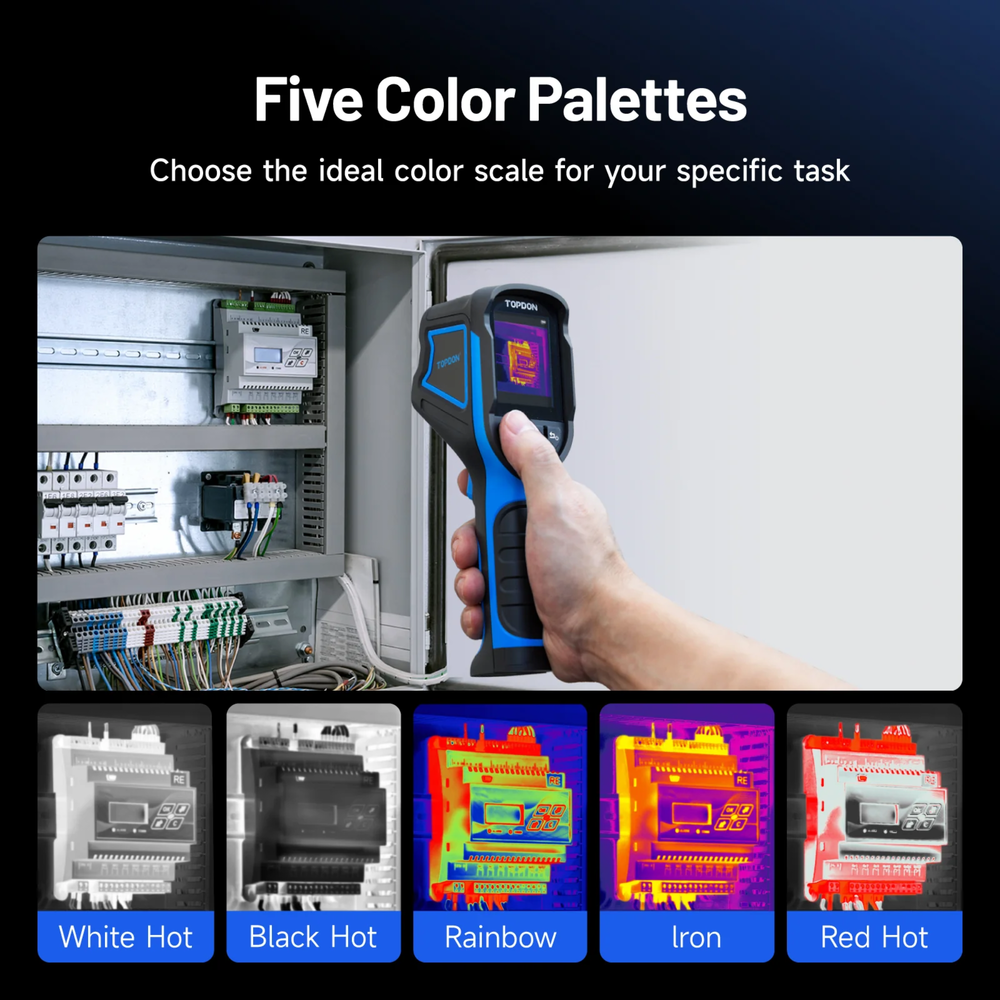

Multiple Thermal Color Palettes – Includes White Hot, Black Hot, Iron, Rainbow, and Red Hot modes to optimize visibility for various inspection environments.

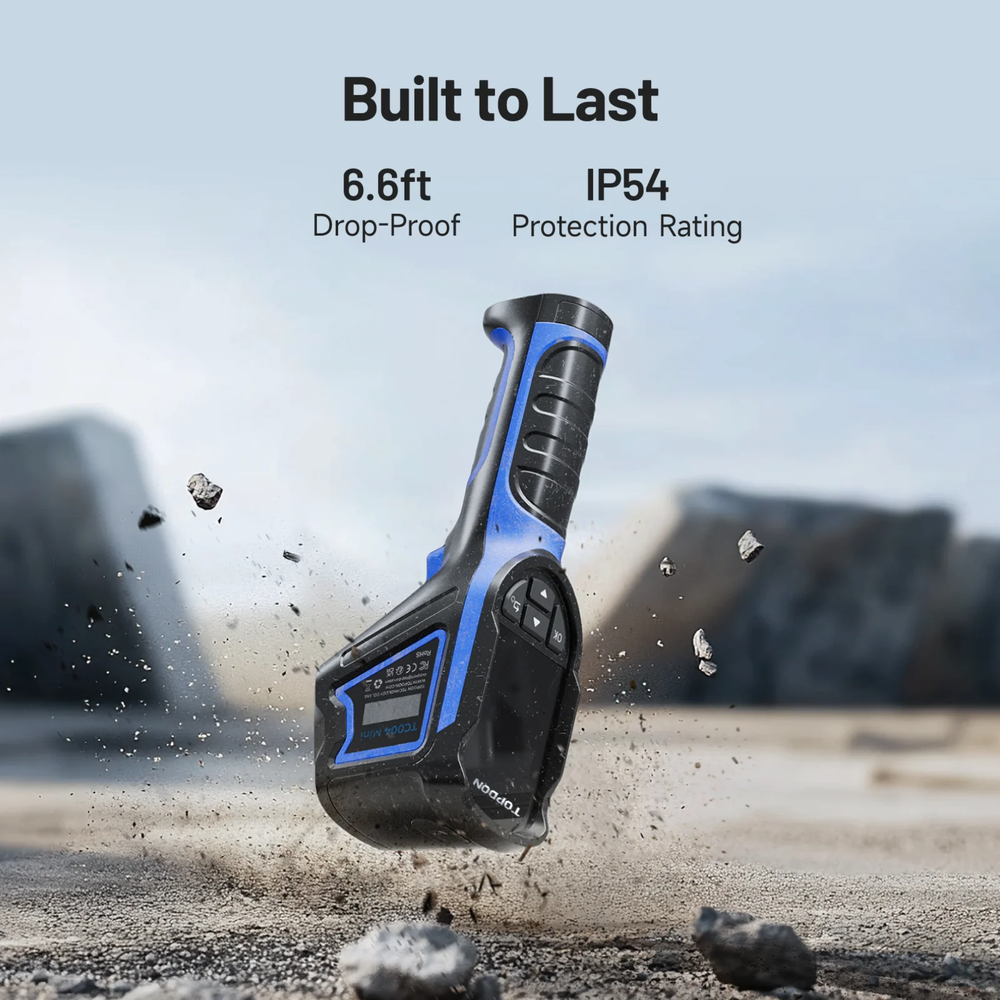

Rugged IP54 Industrial Protection – Built to withstand dust, splashes, and drops up to 2 meters, ensuring reliability in demanding field conditions.
Compact & Ergonomic Design – Lightweight and easy to handle, providing comfortable operation for extended use in both professional and entry-level applications.

Package Includes

TC004 Mini Thermal Camera
Hanging Strap
USB-A to USB-C Cable
Quick User Guide

Advanced Thermal Imaging Performance & Reliability

Advanced TISR image enhancement (128×128 → 240×240)

Smooth 25Hz refresh rate for real-time thermal imaging

Wide temperature detection range: -20°C to 450°C

High sensitivity <40mK for detecting subtle anomalies

Smart auto-detection of max, min, and center temperatures

Customizable high-temperature alerts with image capture

Long-lasting 2,900mAh battery with up to 15 hours runtime

Adjustable emissivity and environmental parameters for accuracy

5 thermal color palettes for varied inspection scenarios

Rugged IP54-rated housing with 2m drop resistance

Lightweight ergonomic design for extended field use

compact infrared thermal camera industrial inspection tool

TOPDON TC004 Mini Thermal Imaging Camera

Model: TC004 Mini

IR Resolution: 128*128, improved to 240*240 by TISR

Measurement Range: -4 ~ 842℉ ( -20 ~ 450°C)

Refresh Rate: 25Hz

Spectral Range: 8 to 14μm

FOV: 40° x 30°

Focal Length: 3.2 mm

NETD: <40 mK

Memory: 512MB

Battery Life: 15h

Battery Type: 2,900mAh built-in battery

Protection Level: IP54
