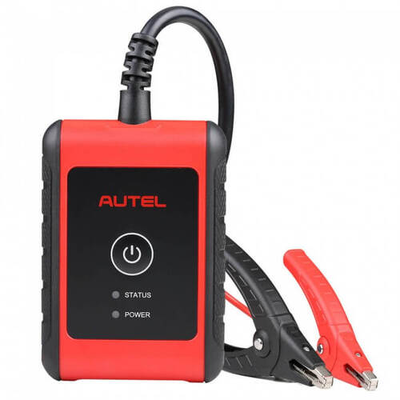

Autel BT506 Battery Tester – Smart Automotive Analyser

Autel BT506 Automotive Battery Tester

The Autel BT506 Automotive Battery Tester is a professional tool designed to provide accurate battery and electrical system diagnostics using Adaptive Conductance technology. This advanced method measures a battery’s cold cranking ability and reserve capacity, giving a true picture of its health beyond a simple voltage test.

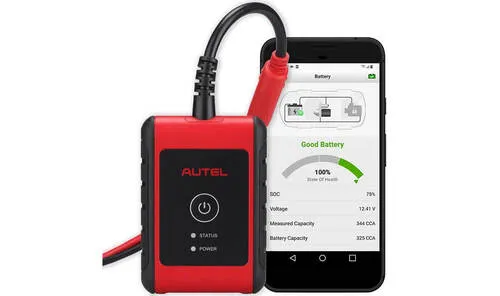

With the free mobile app (iOS & Android), technicians can easily perform tests and view results directly on a smartphone. For added versatility, the BT506 also integrates seamlessly with Autel diagnostic tablets, enabling expanded testing and reporting capabilities within the Autel ecosystem.

Main Features

Adaptive Conductance Technology – Delivers more precise analysis of cold cranking amps (CCA) and reserve capacity.
In-Vehicle & Out-of-Vehicle Testing – Test batteries inside or outside the vehicle with ease.
12V Battery Coverage – Supports 100–2000 CCA batteries across multiple chemistries.
Cranking & Charging System Tests – Diagnose not just the battery, but the entire starting and charging system.
Wide Battery Compatibility – Works with Flooded, AGM Flat Plate, AGM Spiral, EFB, and GEL batteries.
Global Standards Supported – Compatible with CCA, CA, SAE, EN, IEC, DIN, JIS, and MCA rating systems.
Mobile App Integration – Free app for iOS and Android devices provides easy testing and results display.
Works with Autel Tablets – Pair with Autel tablets (such as MaxiSys) for extended diagnostic capabilities and professional reporting.

Autel BT506 Automotive Battery & Electrical System Tester

Unlike basic battery testers, the BT506 uses Adaptive Conductance to deliver an accurate picture of a battery’s true health. This means fewer misdiagnoses, more reliable results, and better decision-making when servicing vehicles.

Its flexibility makes it ideal for both workshops and mobile mechanics: test batteries in or out of the vehicle, analyze 12V charging systems, and get instant, easy-to-understand reports. When paired with Autel tablets, it becomes even more powerful — integrating into your diagnostic workflow for complete vehicle health assessments.

Autel MaxiBAS BT506

Tech Specs

Connectivity USB 2.0, Type C

Bluetooth V3.0 BR/EDR+ V4.2 LE Dual-Mode

Input Voltage 5V DC

Working Current < 150 mA at 12V DC

Internal Battery N/A

CCA Range 100 to 2000A

Voltage Range 1.5 to 16V

Working Temperature -10°to 50° C (14° to 122° F)

Storage Temperature -20° to 60° C (-4° to 140° F)

Dimension (L x W x H) 107 mm (4.21“) x 75 mm (2.95”) x 26 mm (1.02”) (clamp cable not included)

Weight 320 g (0.7 lb.)
